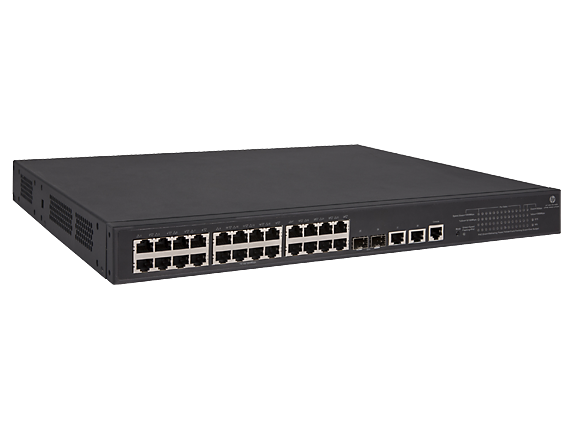

HP 1950-24G-2SFP+-2XGT-PoE+(370W) Switch

(JG962A)

Categories: Networking, HP Switches, HP Small Business, HP 1950

HP 1950 Switches are smart web-managed Gigabit switches with 10G uplinks, for small business customers needing advanced high-performance connections. The series has two standard models and two PoE+ models, 24 and 48 Gigabit ports, each with two 10GBASE-T ports and two 10G SFP+ high-bandwidth ports.

The switches deliver true-stacking, allowing up to four devices to be logically administered as a single entity. They support Layer 3 static routing on IPv4 and IPv6.

Other advanced features include ACLs, 802.1X, STP, RSTP, and MSTP. Limited lifetime warranty covers unit, fans and power supplies.

Details Specification

Product Specifications

Differentiator
Smart web-managed Gigabit Ethernet PoE+ enabled switch with 28 total ports: 24-ports PoE+ Gigabit 10/100/1000, 2-ports 10GBASE-T and 2-ports SFP+. Layer 3 static routing, ACLs, 802.1X network login. PoE+ power budget 370W. True stacking.

Ports
(24) RJ-45 auto-negotiating 10/100/1000 PoE+ ports
(2) SFP+ fixed 1000/10000 SFP+ ports
(2) RJ-45 1/10GBASE-T ports

Memory and processor
128 MB flash
Packet buffer size: 1.5 MB
1 GB SDRAM

Latency
100 Mb Latency: < 5 µs
1000 Mb Latency: < 5 µs
10 Gbps Latency: < 1.5 µs

Throughput
up to 95.2 Mpps

Routing/switching capacity
128 Gbps

PoE capability
370 W PoE+

Stacking capabilities
Virtual
4 switches

Management features
Imc – intelligent management center
Limited command-line interface
Web browser
Snmp manager
Https
Rmon1
Ftp
Supported by HP IMC and generic SNMP management platforms. Refer to documentation for MIB support details.

Dimensions (W x D x H)
17.32 x 14.17 x 1.73 in (44 x 36 x 4.4 cm)
Weight
13.23 lb (6 kg)

What’s in the box
HP 1950-24G-2SFP+-2XGT-PoE+(370W) Switch, power cord, rack-mount kit, console cable, documentation set
Warranty
Limited Lifetime warranty: Advance hardware replacement with next-business-day delivery (available in most countries). See www.hp.com/networking/warrantysummary for duration details.
Electronic and telephone support: limited electronic and telephone support is available from HP- for details on the duration of support provided with your product purchase
refer to www.hp.com/networking/warrantysummary.
