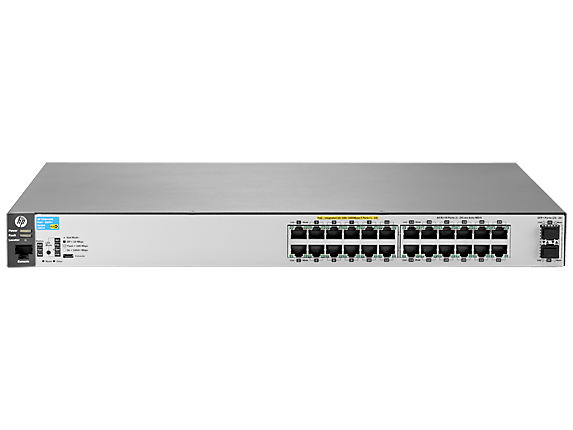

HP 2530-24G-PoE+-2SFP+ Switch

(J9854A)

Categories: HP 2530, Networking, HP Switches, HP Campus LAN

The HP 2530 Switches Series provides security, reliability, and ease of use for enterprise edge, branch office, and SMB deployments. Fully managed switches deliver full Layer 2 capabilities with optional PoE+, 10GbE uplinks, enhanced access security, traffic prioritization, sFlow, IPv6 host support, and include Limited Lifetime Warranty 2.0 with 3 years 24×7 phone support.

The HP 2530 Switch Series is easy to use and deploy, and can be manages with the HP Intelligent Management Center (IMC) for a single view of your entire network.

Details Specification

Product Specifications

Differentiator
The HP 2530-24G-PoE+-2SFP+ Switch is a fully managed layer 2 switch with 24 10/100/1000 PoE+ ports and 2 SFP+ slots.

Ports
(24) RJ-45 autosensing 10/100/1000 PoE+ ports
(2) SFP+ fixed 1000/10000 SFP+ ports

Memory and processor
ARM9E @ 800 MHz
128 MB flash
Packet buffer size: 1.5 MB dynamically allocated
256 MB DDR3 DIMM

Latency
100 Mb Latency: < 7.3 µs
1000 Mb Latency: < 2.7 µs
10 Gbps Latency: < 2.2 µs

Throughput
up to 65.4 Mpps

Switching capacity
88 Gbps

PoE capability
195 W

Stacking capabilities
Virtual
16 switches

Management features
Imc – intelligent management center
Command-line interface
Web browser
Configuration menu
Out-of-band management (serial rs-232c or micro usb)
Ieee 802.3 ethernet mib
Repeater mib
Ethernet interface mib

Dimensions (W x D x H)
17.44 x 13 x 1.75 in (44.3 x 33.02 x 4.45 cm)
Weight
8.6 lb (3.9 kg)

What's in the box
(1) HP 2530-24G-PoE+-2SFP+ Switch
Warranty
Limited Lifetime warranty: Advance hardware replacement with next-business-day delivery (available in most countries). See www.hp.com/networking/warrantysummary for duration details.
Electronic and telephone support: limited electronic and telephone support is available from HP- for details on the duration of support provided with your product purchase
refer to www.hp.com/networking/warrantysummary.
Software releases: for details on the software releases available with your product purchase
refer to www.hp.com/networking/warrantysummary.
