Differentiator

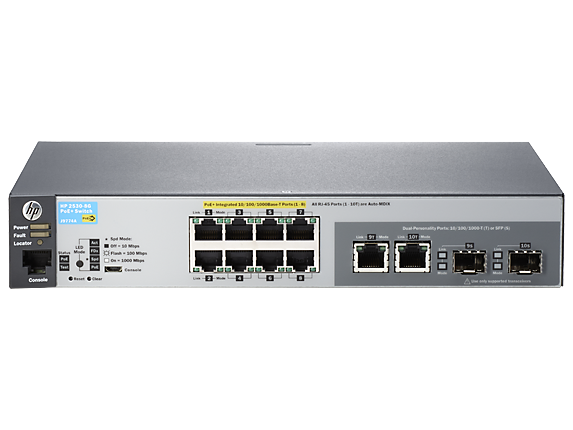

The HP 2530-8G-PoE+ Switch is a fully managed layer 2 switch with 8 10/100/1000 PoE+ ports and 2 dual personality ports.
Ports
(8) RJ-45 autosensing 10/100/1000 PoE+ ports
(2) dual-personality ports
Memory and processor
ARM9E @ 800 MHz
128 MB flash
Packet buffer size: 1.5 MB dynamically allocated
256 MB DDR3 DIMM
Latency
100 Mb Latency: < 7.4 µs
1000 Mb Latency: < 2.6 µs
Throughput
up to 14.8 Mpps
Switching capacity
20 Gbps
PoE capability
67 W
Stacking capabilities
Virtual
16 switches
Management features
Imc – intelligent management center
Command-line interface
Web browser
Configuration menu
Out-of-band management (serial rs-232c or micro usb)
Ieee 802.3 ethernet mib
Repeater mib
Ethernet interface mib
Dimensions (W x D x H)
10 x 6.28 x 1.75 in (25.4 x 15.95 x 4.45 cm)
Weight
2.2 lb (1 kg)
What's in the box
(1) HP 2530-8G-PoE+ Switch
Warranty
Limited Lifetime warranty: Advance hardware replacement with next-business-day delivery (available in most countries). See www.hp.com/networking/warrantysummary for duration details.
Electronic and telephone support: limited electronic and telephone support is available from HP- for details on the duration of support provided with your product purchase
refer to www.hp.com/networking/warrantysummary.
Software releases: for details on the software releases available with your product purchase
refer to www.hp.com/networking/warrantysummary.
