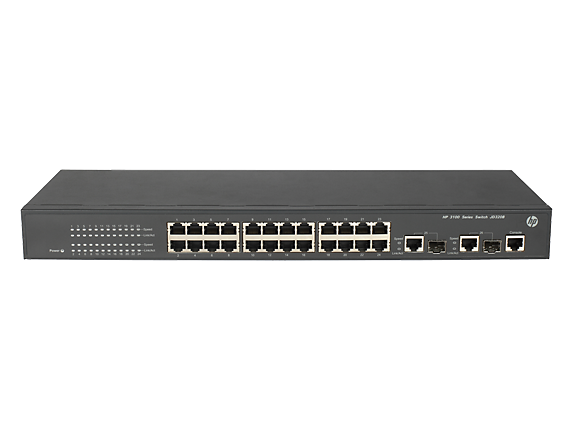

HP 3100-24 v2 EI Switch

(JD320B)

The HP 3100 EI Switch Series enhance security by providing reliable fully managed Fast Ethernet Layer 2 switches ideal for the access layer of medium and large enterprises. Features include enterprise class quality of service and security features including rate limiting, QinQ, ACLs, a 24-port PoE model and improved reliability with backup redundancy.

The HP 3100 EI Switch Series can be managed with the optional HP Intelligent Management Center (IMC) Software Platform for a single view of your entire network.

Product Specifications

Product Informations

Differentiator
HP 3100-24 V2 EI Switch with 24 10/100BASE-T ports and 2 10/100/1000BASE-T or GbE SFP dual-personality ports
AC-powered

Ports
(24) autosensing 10/100 ports
(2) dual-personality ports

Memory and processor
128 MB SDRAM
Packet buffer size: 384 KB
16 MB flash

Latency
1000 Mb Latency: < 6 µs
10 Gbps Latency: < 5 µs

Throughput
up to 6.5 Mpps

Routing/switching capacity
8.8 Gbps

Stacking capabilities
Virtual
16 switches

Management features
Imc – intelligent management center
Command-line interface
Web browser
Snmp manager

Dimensions (W x D x H)
17.32 x 6.3 x 1.72 in (43.99 x 16 x 4.37 cm)
Weight
7.72 lb (3.5 kg)

What’s in the box
(1) HP 3100-24 V2 EI Switch
Warranty
Limited Lifetime warranty: Advance hardware replacement with next-business-day delivery (available in most countries). See www.hp.com/networking/warrantysummary for duration details.
Electronic and telephone support: limited electronic and telephone support is available from HP- for details on the duration of support provided with your product purchase
refer to www.hp.com/networking/warrantysummary.
Software releases: for details on the software releases available with your product purchase
refer to www.hp.com/networking/warrantysummary.
