The HP 3100 SI Switch Series are cost-effective, fully managed Layer 2 switches ideal for the access layer of medium and large enterprises. Convenient 8-, 16- and 24-10/100 ports models with Gigabit Ethernet uplinks provide reliable connectivity, easy installation with quiet, fanless models and enterprise class quality of service and security features.
The HP 3100 SI Switch Series can be managed with the optional HP Intelligent Management Center (IMC) Software Platform for a single view of your entire network.
* Manufacturer’s Suggested Retail Price
Differentiator

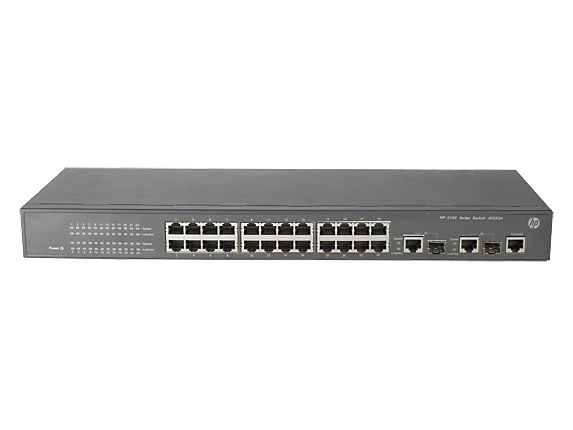

HP 3100-24 SI Switch with 24 10/100Base-T ports and 2 10/100/1000 combo port.
Ports
2 dual-personality 10/100/1000 ports
24 autosensing 10/100 ports
Included
Memory and processor
storage: 128 MB SDRAM, 16 MB flash
packet buffer size: 384 KB
Latency
100 Mb Latency: < 6 µs
1000 Mb Latency: < 5 µs
Throughput
up to 6.6 Mpps
Routing/switching capacity
8.8 Gbps
Stacking capabilities
Virtual
16 switches
Management features
IMC – Intelligent Management Center
command-line interface
Web browser
SNMP Manager
Dimensions (W x D x H)
17.32 x 6.3 x 1.72 in (43.99 x 16 x 4.37 cm)
Weight
6.61 lb (3 kg)
What’s in the box
(1) HP 3100-24 v2 SI Switch
Warranty
Limited Lifetime warranty: Advance hardware replacement with next-business-day delivery (available in most countries). See www.hp.com/networking/warrantysummary for duration details.;Electronic and telephone support: limited electronic and telephone support is available from HP refer to www.hp.com/networking/support for details on the support provided and the period during which support is available;Software releases: refer to www.hp.com/networking/support for details on the software releases provided and the period during which software releases are available for your product(s)
