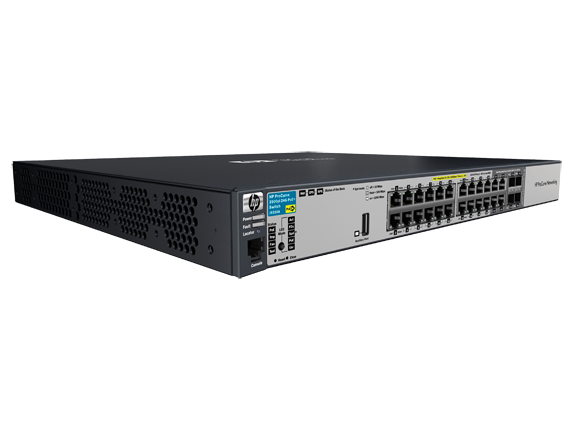

HP 3500-24G-PoE+ yl Switch

(J9310A)

Categories: Networking, HP Switches, HP Campus LAN, HP 3500 yl

The HP 3500 yl Switch Series provides performance and ease of use for enterprise edge and branch office deployments that require PoE+. Based on a HP Networking ASIC, the 3500 yl has low latency with increased packet buffering and an optional module for 10GbE ports.

The 3500 yl has a robust Layer 3 feature set with IPv4 BGP, policy based routing, and IPv4/IPv6 OSPF, and can be seamlessly managed with the optional HP Intelligent Management Center (IMC) Software Platform. Software-defined Network (SDN) ready with support for OpenFlow.

Details Specification

Product Specifications

Differentiator
The HP 3500-24G-PoE+ yl Switch is an advanced Layer 3 1U stackable with 20 10/100/1000Base-T ports, 4 dual-personality ports, integrated PoE+ in all 10/100/1000Base-T interfaces, and an expansion slot for an optional 4-port 10-GbE module

Ports
20 autosensing 10/100/1000 ports
4 dual-personality ports
1 open module slot
Supports a maximum of 4 10GbE ports, with optional module

Memory and processor
Stackable memory and processor: Freescale PowerPC 8540 @ 666 MHz
4 MB flash
128 MB compact flash
256 MB DDR SDRAM

Latency
1000 Mb Latency: < 3.4 µs
10 Gbps Latency: < 2.1 µs

Throughput
up to 75.7 Mpps

Routing/switching capacity
101.8 Gbps

Switch fabric speed
105.6 Gbps

PoE capability
398 W PoE+

Management features
IMC – Intelligent Management Center
command-line interface
Web browser
configuration menu
out-of-band management (serial RS-232C)

Dimensions (W x D x H)
17.44 x 15.43 x 1.73 in (44.3 x 39.2 x 4.4 cm)
Weight
13.86 lb (6.29 kg)

What's in the box
(1) HP 3500-24G-PoE+ yl Switch
Warranty
Limited Lifetime warranty: Advance hardware replacement with next-business-day delivery (available in most countries). See www.hp.com/networking/warrantysummary for duration details.
