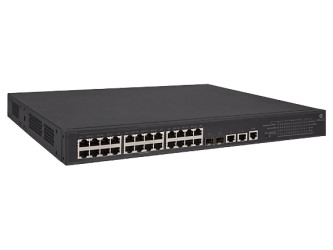

HP 3600-24-PoE+ v2 SI Switch

(JG306C)

Categories: Networking, HP Switches, HP Campus LAN, HP 3600 SI

The HP 3600 SI Switch Series delivers resiliency, security, and reliability at the enterprise edge. This Basic Layer 3 Fast Ethernet switch series supports IRF stacking, Static & RIP Routing, ACLs, IPv6 and PoE+.

The HP 3600 SI Switch Series can be managed with the optional HP Intelligent Management Center (IMC) Software Platform for a single view of your entire network and includes Limited Lifetime Warranty 2.0 with 3 years 24×7 phone support.

Details Specification

Product Specifications

Differentiator
HP 3600-24-PoE SI Switch with 24 10/100Base-T PoE ports, 4 SFP GE ports and 2 10/100/1000TX(combo) ports

Ports
(24) RJ-45 autosensing 10/100 PoE+ ports
(2) SFP dual-personality 10/100/1000 ports
(2) SFP 1000 Mbps ports

Memory and processor
storage: 256 MB SDRAM, 128 MB flash
Packet buffer size: 2 MB

Latency
100 Mb Latency: < 6 µs
1000 Mb Latency: < 5 µs

Throughput
up to 9.5 Mpps

Routing/switching capacity
12.8 Gbps

PoE capability
720 W PoE+

Stacking capabilities
IRF
9 switches

Management features
Imc – intelligent management center
Command-line interface
Web browser
Snmp manager

Dimensions (W x D x H)
17.32 x 16.54 x 1.72 in (44 x 42 x 4.36 cm)
Weight
22.05 lb (10 kg)

What's in the box
(1) HP 3600-24-PoE+ v2 SI Switch
Warranty
Limited Lifetime warranty: Advance hardware replacement with next-business-day delivery (available in most countries). See www.hp.com/networking/warrantysummary for duration details.
Electronic and telephone support: limited electronic and telephone support is available from HP- for details on the duration of support provided with your product purchase
refer to www.hp.com/networking/warrantysummary.;Software releases: for details on the software releases available with your product purchase
refer to www.hp.com/networking/warrantysummary.
