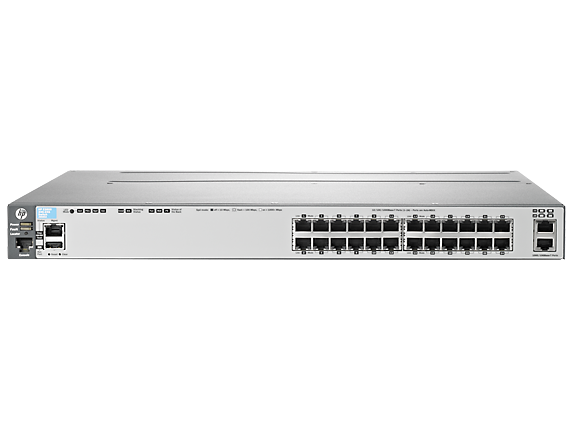

HP 3800-24G-2XG Switch

(J9585A)

Categories: HP 3800, Networking, HP Switches, HP Campus LAN

The HP 3800 Switch Series provides performance, resiliency and flexibility, and ease of use for enterprise edge, and SMB and branch office deployments. Based on a powerful HP Networking ASIC, the switch has low latency, increased packet buffering, and adaptive power consumption.

Mesh stacking technology delivers modular chassis-like resiliency in stackable1U form factor. The HP 3800 Switch Series has a robust Layer 3 feature set with IPv6, IPv4 BGP, policy based routing, and OSPF, can be seamlessly managed with HP Intelligent Management Center (IMC) and is SDN ready with OpenFlow support.

Details Specification

Product Specifications

Differentiator
HP 3800-24G-2XG Switch: 24-port 10/100/1000 PoE+ switch with 2 10-GbE RJ-45 Uplinks

Ports
24 RJ-45 autosensing 10/100/1000 ports
2 RJ-45 10GbE ports
Included

Memory and processor
HP ProVision ASIC/ARM @ 350 MHz
Freescale P2020 @ 1200 MHz
4 GB flash
packet buffer size: 18 MB dynamic
2 GB SDRAM

Latency
1000 Mb Latency: < 2.8 µs
10 Gbps Latency: < 1.9 µs

Throughput
up to 65.4 Mpps
Switching capacity
88 Gbps

Stacking capabilities
Virtual
10 switches

Management features
IMC – Intelligent Management Center
command-line interface
Web browser
configuration menu

Power supply name
1 x J9581A

Dimensions (W x D x H)
17.43 x 18.4 x 1.7 in (44.27 x 46.74 x 4.32 cm)
Weight
15.81 lb (7.17 kg)

What’s in the box
(1) HP 3800-24G-2XG Switch
Warranty
Limited Lifetime warranty: Advance hardware replacement with next-business-day delivery (available in most countries). See www.hp.com/networking/warrantysummary for duration details.
