The HP 4200 vl Switch Series provides cost-effective Layer 2 modular switching for enterprise edge deployments. This flexible modular switch supports 10/100, Gigabit Ethernet and 10GbE connectivity and basic IP routing with up to 16 static routes.
An optional redundant power supply can be added for uninterrupted power. The HP 4200 vl Switch Series can be seamlessly managed with the optional HP Intelligent Management Center (IMC) Software Platform.
* Manufacturer’s Suggested Retail Price
Differentiator

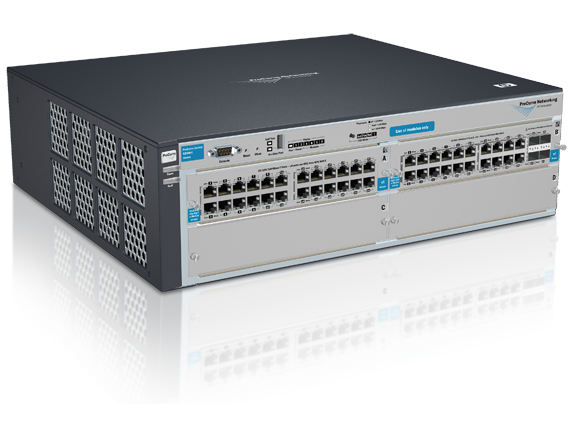

The HP 4204-44G-4SFP vl Switch is a 3U chassis with 44 10/100/1000-T ports and 4 SFP ports bundled with an optional 2 slots to add 10/100, 10/100/1000, and fiber uplinks.
Ports
2 open module slots
44 autosensing 10/100/1000 ports
4 open mini-GBIC (SFP) slots
Supports a maximum of 48 autosensing 10/100 ports or 92 autosensing 10/100/1000 ports or 12 mini-GBICs or 2 10GbE ports, or a combination
Included
Memory and processor
Motorola PowerPC MPC8245 @ 330 MHz
24 MB flash
packet buffer size: 36 MB
64 MB SDRAM
Throughput
up to 24 Mpps
Switch fabric speed
38.4 Gbps
Stacking capabilities
Virtual
16 switches
Management features
HP PCM+
HP PCM (included)
command-line interface
Web browser
configuration menu
out-of-band management (DB-9 serial port console)
IEEE 802.3 Ethernet MIB
Repeater MIB
Ethernet Interface MIB
Power supply name
1 x J4839A
Dimensions (W x D x H)
17.4 x 15.3 x 5.25 in (44.2 x 38.86 x 13.34 cm)
Weight
24.45 lb (11.09 kg)
What’s in the box
(1) HP 4204-44G-4SFP vl Switch
Warranty
Limited Lifetime warranty: Advance hardware replacement with next-business-day delivery (available in most countries). See www.hp.com/networking/warrantysummary for duration details.;Electronic and telephone support: limited electronic and telephone support is available from HP refer to www.hp.com/networking/support for details on the support provided and the period during which support is available;Software releases: refer to www.hp.com/networking/support for details on the software releases provided and the period during which software releases are available for your product(s)
