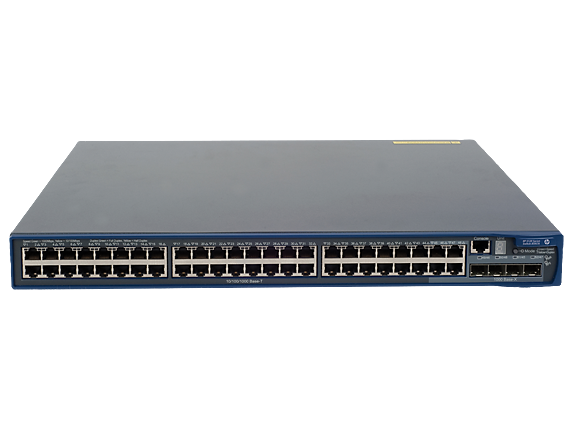

HP 5120-48G EI Switch

(JE067A)

The HP 5120 EI Switch Series delivers flexibility, scalability and low TCO with a robust feature set supporting stacking, static layer 3 routing, PoE+, ACLs and IPv6. HP Intelligent Resilient Framework (IRF) technology creates a virtual fabric by managing several switches as one logical device, which increases network resilience, performance, and availability while reducing operational complexity.

The HP 5120 EI Switch Series can be managed with the HP Intelligent Management Center (IMC) for a single view of your network.

Product Specifications

Product Informations

Differentiator
HP 5120-48G EI Switch with 44 10/100/1000Base-T ports and 4 10/100/1000Base-T or SFP dual-personality port

Ports
44 RJ-45 autosensing 10/100/1000 ports
4 dual-personality ports
Supports a maximum of 48 autosensing 10/100/1000 ports
Included

Memory and processor
128 MB SRAM
packet buffer size: 4 MB
16 MB flash

Latency
1000 Mb Latency: < 3.2 µs

Throughput
up to 71.4 Mpps

Routing/switching capacity
96 Gbps
Stacking capabilities
##BLANK##

Management features
IMC – Intelligent Management Center
command-line interface
Web browser
SNMP Manager

Dimensions (W x D x H)
17.32 x 11.81 x 1.72 in (44 x 30 x 4.37 cm)
Weight
11.02 lb (5 kg)

What’s in the box
(1) HP 5120-48G EI Switch
Warranty
Limited Lifetime warranty: Advance hardware replacement with next-business-day delivery (available in most countries). See www.hp.com/networking/warrantysummary for duration details.;Electronic and telephone support: limited electronic and telephone support is available from HP refer to www.hp.com/networking/support for details on the support provided and the period during which support is available;Software releases: refer to www.hp.com/networking/support for details on the software releases provided and the period during which software releases are available for your product(s)

System Features
