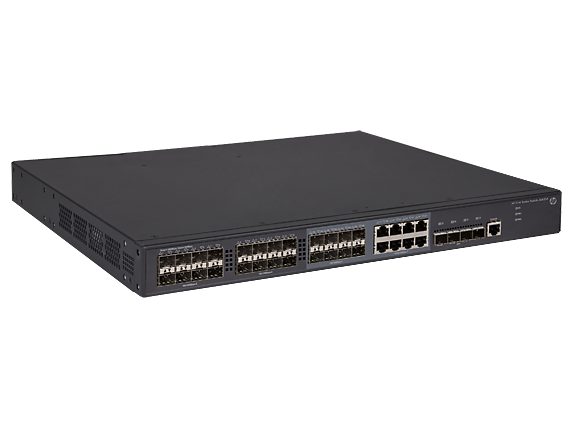

HP 5130-24G-SFP-4SFP+ EI Switch

(JG933A)

Categories: Networking, HP Switches, HP Campus LAN, HP 5130 EI

The HP 5130 EI Switch Series delivers flexibility, scalability and low TCO at the access layer of medium and large enterprise campus networks. Offering enterprise class QoS and security, HP Intelligent Resilient Framework (IRF) stacking, static layer 3 routing and RIP, convenient fixed 10GbE uplink ports, PoE+, ACLs, IPv6 and delivers energy savings with Energy Efficient Ethernet.

The HP 5130 EI Switch Series is SDN ready with OpenFlow 1.3 support, can be managed with HP Intelligent Management Center (IMC) for a single view of your entire network.

Details Specification

Product Specifications

Differentiator
HP 5130-24G-SFP-4SFP+ EI Switch (16 100/1000BaseX ports, 8 Combo 100/1000BaseX-10/100/1000BaseT Combo Ports, 4 SFP+ ports)

Ports
16 SFP 100/1000 Mbps ports
8 SFP dual-personality ports
4 SFP+ fixed 1000/10000 SFP+ ports
Included

Memory and processor
1 GB SDRAM
packet buffer size: 1.5 MB
128 MB flash

Latency
1000 Mb Latency: < 5 µs
10 Gbps Latency: < 1.5 µs

Throughput
up to 96 Mpps

Routing/switching capacity
128 Gbps

Stacking capabilities
IRF
9 switches

Management features
IMC – Intelligent Management Center
command-line interface
Web browser
SNMP Manager

Dimensions (W x D x H)
17.32 x 14.17 x 1.72 in (44 x 36 x 4.36 cm)
Weight
17.64 lb (8 kg)

What’s in the box
(1) HP 5130-24G-SFP-4SFP+ EI Switch, Mounting brackets.
Warranty
Limited Lifetime warranty: Advance hardware replacement with next-business-day delivery (available in most countries). See www.hp.com/networking/warrantysummary for duration details.;Electronic and telephone support: limited electronic and telephone support is available from HP refer to www.hp.com/networking/support for details on the support provided and the period during which support is available;Software releases: refer to www.hp.com/networking/support for details on the software releases provided and the period during which software releases are available for your product(s)
