The HP 5130 EI Switch Series delivers flexibility, scalability and low TCO at the access layer of medium and large enterprise campus networks. Offering enterprise class QoS and security, HP Intelligent Resilient Framework (IRF) stacking, static layer 3 routing and RIP, convenient fixed 10GbE uplink ports, PoE+, ACLs, IPv6 and delivers energy savings with Energy Efficient Ethernet.
The HP 5130 EI Switch Series is SDN ready with OpenFlow 1.3 support, can be managed with HP Intelligent Management Center (IMC) for a single view of your entire network.
* Manufacturer’s Suggested Retail Price
Differentiator

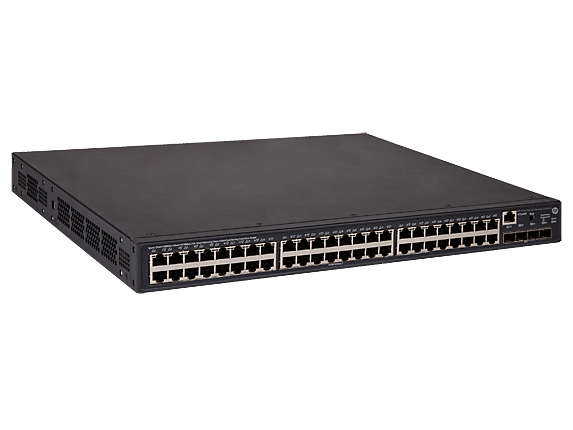

HP 5130-48G-PoE+-4SFP+ (370W) EI Switch (48 10/100/1000Base-T PoE+ ports, 4 SFP+ ports)
Ports
48 RJ-45 autosensing 10/100/1000 ports
4 SFP+ fixed 1000/10000 SFP+ ports
Included
Memory and processor
1 GB SDRAM
packet buffer size: 3 MB
128 MB flash
Latency
1000 Mb Latency: < 5 µs
10 Gbps Latency: < 1.5 µs
Throughput
up to 130.9 Mpps
Routing/switching capacity
176 Gbps
PoE capability
370 W PoE+
Stacking capabilities
IRF
9 switches
Management features
IMC – Intelligent Management Center
command-line interface
Web browser
SNMP Manager
Dimensions (W x D x H)
17.32 x 14.17 x 1.72 in (44 x 36 x 4.36 cm)
Weight
17.64 lb (8 kg)
What’s in the box
(1) HP 5130-48G-PoE+-4SFP+ (370W) EI Switch, Mounting brackets, power cord.
Warranty
Limited Lifetime warranty: Advance hardware replacement with next-business-day delivery (available in most countries). See www.hp.com/networking/warrantysummary for duration details.;Electronic and telephone support: limited electronic and telephone support is available from HP refer to www.hp.com/networking/support for details on the support provided and the period during which support is available;Software releases: refer to www.hp.com/networking/support for details on the software releases provided and the period during which software releases are available for your product(s)
