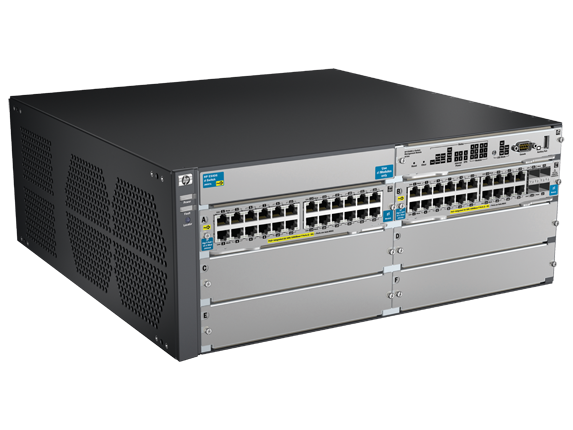

HP 5406-44G-PoE+-4G-SFP v2 zl Switch

(J9539A)

Categories: Networking, HP Switches, HP Campus LAN, HP 5400 zl

The HP 5400 zl Switch Series is a HP Networking ASIC based modular switch designed for enterprise-edge, SMB, and branch office core deployments. This Layer 3 switch has 760 Gbps backplane and license free software with an advanced Layer 2 and 3 feature set including IPv6, IPv4 BGP, policy based routing, OSPF and robust QoS.

Virtualization with HP AllianceOne solutions and flexible connectivity including 1 and 10 Gigabit Ethernet and PoE+, the 5400 zl Switch Series is Software-defined Network (SDN) ready with support for OpenFlow.

Details Specification

Product Specifications

Differentiator
The HP 5406-44G-PoE+/4SFP zl Switch provides one 24-port 10/100/1000 PoE+ module, one 20-port 10/100/1000 PoE+ and 4-port mini-GBIC module, and one 1500W PoE+ power supply already installed in a 5406 6-slot chassis. It has four open slots

Ports
44 RJ-45 autosensing 10/100/1000 ports
4 open mini-GBIC slots
4 open module slots
Supports a maximum of 32 10GbE ports or 140 autosensing 10/100/1000 ports or 100 mini-GBICs, or a combination
Included

Memory and processor
Freescale PowerPC 8540 @ 666 MHz
4 MB flash
128 MB compact flash
256 MB DDR SDRAM

Latency
1000 Mb Latency: < 3.7 µs
10 Gbps Latency: < 2.1 µs

Throughput
up to 282.1 Mpps

Routing/switching capacity
379.2 Gbps
Switch fabric speed
379.2 Gbps

Management features
IMC – Intelligent Management Center
command-line interface
Web browser
configuration menu
out-of-band management (serial RS-232C)

Power supply name
1 x J9306A

Dimensions (W x D x H)
17.5 x 17.75 x 6.9 in (44.45 x 45.09 x 17.53 cm)
Weight
45.58 lb (20.68 kg)

What’s in the box
(1) HP 5406 zl Switch with Premium Software pre-installed (J9642A) (1) HP 24-port Gig-T PoE+ v2 zl Module (J9534A) (1) HP 20-port Gig-T PoE+ / 4-port SFP v2 zl Module (J9535A) (1) HP 1500W PoE+ zl Power Supply (J9306A)
Warranty
Limited Lifetime warranty: Advance hardware replacement with next-business-day delivery (available in most countries). See www.hp.com/networking/warrantysummary for duration details.
