The HP 5400R zl2 Switch Series is an industry leading mobile campus access solution with HP Smart Rate multi-gigabit ports for high speed connectivity and bandwidth for next wave 802.11ac devices. It brings enterprise-class resiliency and innovative flexibility and scalability to converged campus networks.
Robust virtualization with HP AllianceOne solutions, hitless failover, QoS and security with full L3 features and flexible connectivity including 40 Gigabit Ethernet ports and full PoE+, the 5400R requires no add-on software licensing and is SDN ready with OpenFlow support.
* Manufacturer’s Suggested Retail Price
Differentiator

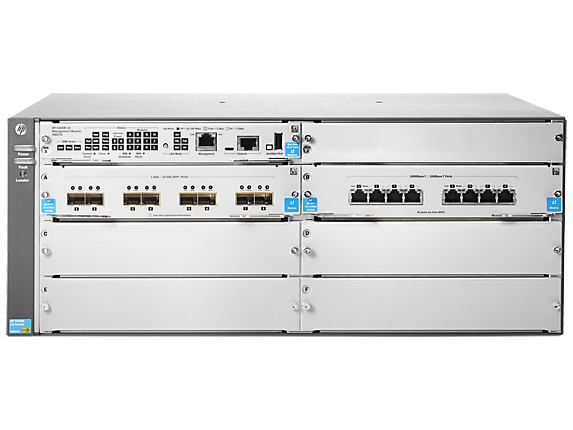

HP 5406R-8XGT/8SFP+ (No PSU) v2 zl2 Switch provides one 8-port 10GBASE-T module and one 8-port 10GbE SFP+ module installed in a 5406R 6-slot chassis. It has four open slots.
Ports
(8) RJ-45 10GbE ports
(8) open 10GbE SFP+ transceiver slots
(4) open module slots
Supports a maximum of 144 autosensing 10/100/1000 ports or 144 SFP ports or 48 SFP+ ports or 48 HP Smart Rate Multi-Gigabit or 12 40GbE ports, or a combination
Memory and processor
Freescale P2020 dual core @ 1.2 GHz
16 MB flash
1 GB SD Card
4 GB DDR3 SODIMM
Latency
1000 Mb Latency: < 2.8 µs
10 Gbps Latency: < 1.8 µs
40 Gbps Latency: < 1.5 µs
Throughput
up to 571.4 Mpps
Routing/switching capacity
960 Gbps
Switch fabric speed
1015 Gbps
Management features
IMC – Intelligent Management Center
Command-line interface
Web browser
Configuration menu
Out-of-band management (RJ-45 Ethernet)
SNMP manager
Out-of-band management (serial RS-232c or micro usb)
Dimensions (W x D x H)
17.5 x 17.75 x 6.9 in (44.45 x 45.09 x 17.53 cm)
Weight
28.11 lb (12.75 kg)
What’s in the box
(1) HP 5406R zl2 Switch (J9821A), (1) HP 8-port 10GBASE-T v2 zl Module (J9546A), (1) HP 8-port 10GbE SFP+ v2 zl Module (J9538A)
Warranty
Limited Lifetime warranty: Advance hardware replacement with next-business-day delivery (available in most countries). See www.hp.com/networking/warrantysummary for duration details.;Electronic and telephone support: limited electronic and telephone support is available from HP refer to www.hp.com/networking/support for details on the support provided and the period during which support is available;Software releases: refer to www.hp.com/networking/support for details on the software releases provided and the period during which software releases are available for your product(s)
