HP 5412-92G-PoE+-2XG v2 zl Switch

(J9532A)

Categories: Networking, HP Switches, HP Campus LAN, HP 5400 zl

The HP 5400 zl Switch Series is a HP Networking ASIC based modular switch designed for enterprise-edge, SMB, and branch office core deployments. This Layer 3 switch has 760 Gbps backplane and license free software with an advanced Layer 2 and 3 feature set including IPv6, IPv4 BGP, policy based routing, OSPF and robust QoS.

Virtualization with HP AllianceOne solutions and flexible connectivity including 1 and 10 Gigabit Ethernet and PoE+, the 5400 zl Switch Series is Software-defined Network (SDN) ready with support for OpenFlow.

Details Specification

Product Specifications

Differentiator

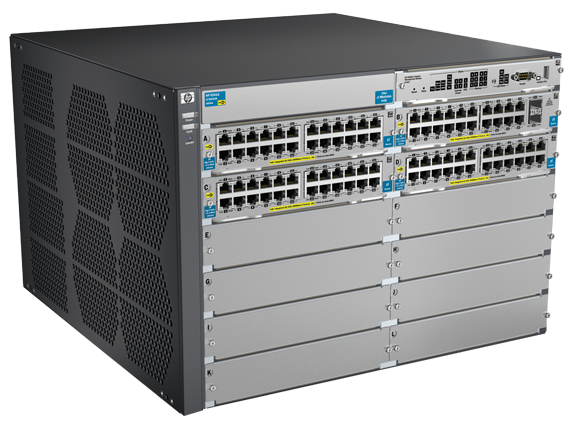

The HP 5412-92G-PoE+/2XG v2 zl Swch w Pm SW provides three 24-port 10/100/1000 PoE+ modules, one 20-port 10/100/1000 PoE+ and 4-port 10GbE SFP_, and two 1500W PoE+ power supplies installed in a 5412 12-slot chassis. It has eight open slots.

Ports
92 RJ-45 autosensing 10/100/1000 PoE+ ports
2 open 10GbE SFP+ transceiver slots
8 open module slots
Supports a maximum of 66 10GbE ports or 284 autosensing 10/100/1000 ports or 194 mini-GBICs, or a combination
Included

Memory and processor
Freescale PowerPC 8540 @ 666 MHz
4 MB flash
128 MB compact flash
256 MB DDR SDRAM

Latency
1000 Mb Latency: < 3.7 µs
10 Gbps Latency: < 2.1 µs

Throughput
up to 564.2 Mpps

Routing/switching capacity
758.4 Gbps
Switch fabric speed
758.4 Gbps

Management features
IMC – Intelligent Management Center
command-line interface
Web browser
configuration menu
out-of-band management (serial RS-232C)

Power supply name
2 x J9306A

Dimensions (W x D x H)
17.5 x 17.75 x 12.1 in (44.45 x 45.09 x 30.73 cm)
Weight
75.36 lb (34.18 kg)

What’s in the box
(1) HP 5412 zl Switch with Premium Software pre-installed (J9643A) (3) HP 24-port Gig-T PoE+ v2 zl Module (J9534A) (1) HP 20-port Gig-T PoE+ / 2-port 10GbE SFP+ v2 zl Module (J9536A) (2) HP 1500W PoE+ zl Power Supply (J9306A)
Warranty
Limited Lifetime warranty: Advance hardware replacement with next-business-day delivery (available in most countries). See www.hp.com/networking/warrantysummary for duration details.
