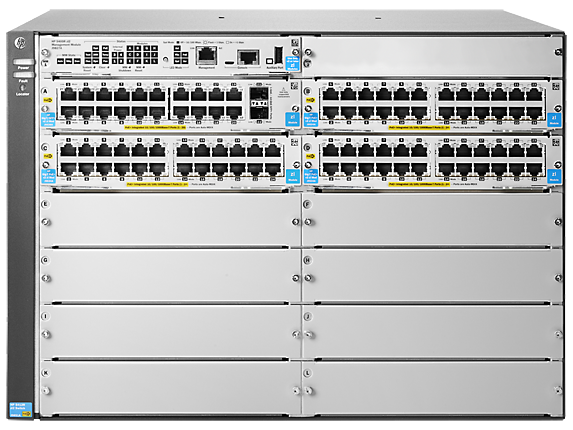

HP 5412R-92G-PoE+/2SFP+ (No PSU) v2 zl2 Switch

(J9825A)

Categories: HP 5400R zl2, Networking, HP Switches, HP Campus LAN

The HP 5400R zl2 Switch Series is an industry leading mobile campus access solution with HP Smart Rate multi-gigabit ports for high speed connectivity and bandwidth for next wave 802.11ac devices. It brings enterprise-class resiliency and innovative flexibility and scalability to converged campus networks.

Robust virtualization with HP AllianceOne solutions, hitless failover, QoS and security with full L3 features and flexible connectivity including 40 Gigabit Ethernet ports and full PoE+, the 5400R requires no add-on software licensing and is SDN ready with OpenFlow support.

Details Specification

Product Specifications

Differentiator
The HP 5412R-92G-PoE+/2SFP+ (No PSU) v2 zl2 Switch provides three J9534A modules and one J9536A module installed in a 5412R chassis. It has eight open slots.

Ports
(92) RJ-45 autosensing 10/100/1000 PoE+ ports
(2) open 10GbE SFP+ transceiver slots
(8) open module slots
Supports a maximum of 288 autosensing 10/100/1000 ports or 288 SFP ports or 96 SFP+ ports or 96 HP Smart Rate Multi-Gigabit or 24 40GbE ports, or a combination

Memory and processor
Freescale P2020 dual core @ 1.2 MHz
16 MB flash
1 GB SD Card
4 GB DDR3 SODIMM

Latency
1000 Mb Latency: < 2.8 µs
10 Gbps Latency: < 1.8 µs
40 Gbps Latency: < 1.5 µs

Throughput
up to 1142.8 Mpps

Routing/switching capacity
1920 Gbps

Switch fabric speed
2030 Gbps

Management features
IMC – Intelligent Management Center
Command-line interface
Web browser
Configuration menu
Out-of-band management (RJ-45 Ethernet)
SNMP manager
Out-of-band management (serial RS-232c or micro usb)

Dimensions (W x D x H)
17.5 x 17.75 x 12.1 in (44.45 x 45.09 x 30.73 cm)
Weight
45.19 lb (20.5 kg)

What’s in the box
(1) HP 5412R zl2 Switch (J9822A), (3) HP 24-port Gig-T PoE+ v2 zl Module (J9534A), (1) HP 20-port Gig-T PoE+ / 2-port 10GbE SFP+ v2 zl Module (J9536A)
Warranty
Limited Lifetime warranty: Advance hardware replacement with next-business-day delivery (available in most countries). See www.hp.com/networking/warrantysummary for duration details.;Electronic and telephone support: limited electronic and telephone support is available from HP refer to www.hp.com/networking/support for details on the support provided and the period during which support is available;Software releases: refer to www.hp.com/networking/support for details on the software releases provided and the period during which software releases are available for your product(s)
