Differentiator

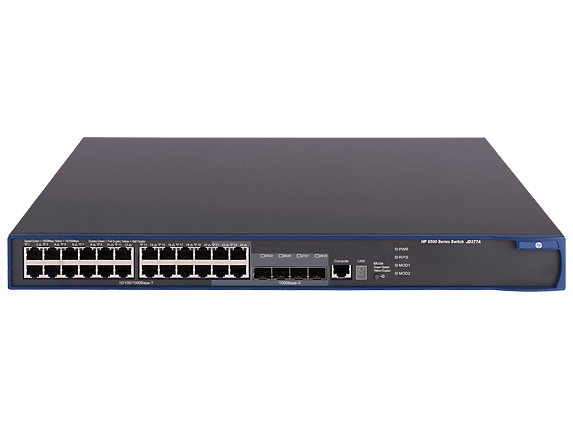

HP 5500-24G EI Switch with 20 10/100/1000Base-T ports, 4 10/100/1000Base-T or SFP dual-personality ports and 2 extension slots
Ports
24 RJ-45 autosensing 10/100/1000 ports
4 dual-personality ports
2 port expansion module slots
Supports a maximum of 24 autosensing 10/100/1000 ports
Included
Memory and processor
256 MB SDRAM
packet buffer size: 2 MB
32 MB flash
Latency
1000 Mb Latency: < 3.2 µs
10 Gbps Latency: < 2.6 µs
Throughput
up to 107.2 million pps
Routing/switching capacity
144 Gbps
Stacking capabilities
IRF, with 9 switches
Management features
IMC – Intelligent Management Center
command-line interface
Web browser
SNMP Manager
IEEE 802.3 Ethernet MIB
Dimensions (W x D x H)
17.32 x 11.81 x 1.72 in (44 x 30 x 4.36 cm)
Weight
8.82 lb (4 kg)
What's in the box
(1) HP 5500-24G EI Switch with 2 Interface Slots
Warranty
Limited Lifetime warranty: Advance hardware replacement with next-business-day delivery (available in most countries). See www.hp.com/networking/warrantysummary for duration details.;Electronic and telephone support: limited electronic and telephone support is available from HP refer to www.hp.com/networking/support for details on the support provided and the period during which support is available;Software releases: refer to www.hp.com/networking/support for details on the software releases provided and the period during which software releases are available for your product(s)
