Home   »   Products   »   Networking   »   HP Switches   »   HP Campus LAN   »   HP 5500 HI   »   HP 5500-24G-PoE+-4SFP HI Switch

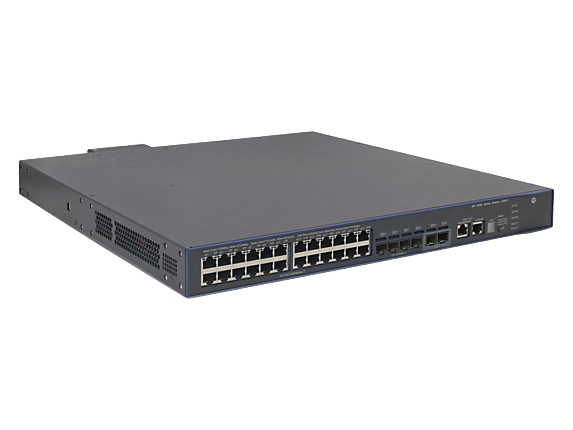

HP 5500-24G-PoE+-4SFP HI Switch

(JG541A)

The HP 5500 HI Switch Series delivers outstanding resiliency, security, and multiservice support at the edge layer of large campus and branch networks. The HP 5500 HI has a robust feature set supporting 1440W PoE+, fixed and modular 10GbE, 9 chassis IRF stacking, Static & RIP Routing, OSPF, MPLS, ACLs, IPv6 and Energy Efficient Ethernet.

The HP 5500 HI Switch Series offers advanced technologies including OAM, CFD, Multi-level QoS, MPLS, and VPLS, and can be managed with the HP Intelligent Management Center (IMC) for a single view of your entire network.

Product Specifications

Product Informations

Differentiator
Layer 3 switch with 24 10/100/1000 PoE+ ports
4 GbE SFP and 2 10GbE SFP+ slots
2 expansion module slots
supports Intelligent Resilient Framework (IRF) virtual fabric and dual power supplies

Ports
24 RJ-45 autosensing 10/100/1000 PoE+ ports
4 fixed Gigabit Ethernet SFP ports
2 SFP+ 10GbE ports
2 port expansion module slots
Supports a maximum of 38 autosensing 100/1000 ports, with optional module
Included

Memory and processor
1 GB SDRAM
packet buffer size: 3 MB
512 MB flash

Latency
1000 Mb Latency: < 5 µs
10 Gbps Latency: < 3 µs

Throughput
up to 130.9 Mpps

Routing/switching capacity
176 Gbps
PoE capability
740 W PoE+
Stacking capabilities
IRF
9 switches

Dimensions (W x D x H)
17.32 x 18.11 x 1.72 in (43.99 x 46 x 4.37 cm)
Weight
22.05 lb (10 kg)

What's in the box
(1) HP 5500-24G-PoE+-4SFP HI Switch with 2 Interface Slots
Warranty
Limited Lifetime warranty: Advance hardware replacement with next-business-day delivery (available in most countries). See www.hp.com/networking/warrantysummary for duration details.;Electronic and telephone support: limited electronic and telephone support is available from HP refer to www.hp.com/networking/support for details on the support provided and the period during which support is available;Software releases: refer to www.hp.com/networking/support for details on the software releases provided and the period during which software releases are available for your product(s)

System Features
