Home   »   Products   »   Networking   »   HP Switches   »   HP Campus LAN   »   HP 5500 EI   »   HP 5500-24G-PoE+ EI Switch

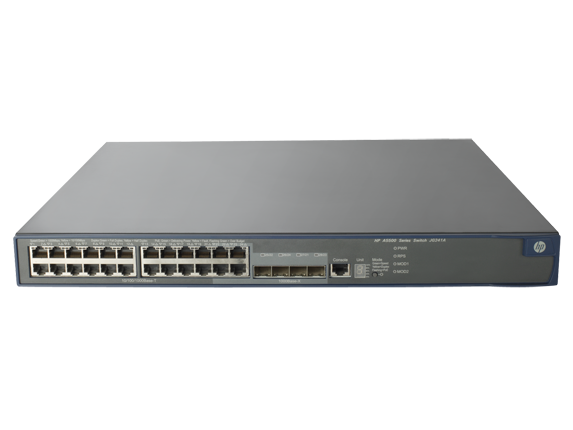

HP 5500-24G-PoE+ EI Switch

(JG241A)

The HP 5500 EI Switch Series delivers resiliency, security, and multiservice support capabilities at the edge layer of large campus and branch networks. The HP 5500 EI delivers flexibility, scalability and low TCO with a robust feature set supporting IRF stacking, Static & RIP Routing, OSPF, BGP, IS-IS, PoE+, ACLs, and IPv6.

The HP 5500 EI Switch Series can be managed with the HP Intelligent Management Center (IMC) for a single view of your entire network.

Product Specifications

Product Informations

Differentiator
HP 5500-24G-PoE+ EI Switch with 2 Interface Slots (24 10/100/1000Base-T PoE+ ports, 4 10/100/1000Base-T or SFP dual-personality ports and 2 extension slots)

Ports
24 RJ-45 autosensing 10/100/1000 PoE+ ports
4 dual-personality ports
2 port expansion module slots
Supports a maximum of 24 autosensing 10/100/1000 ports
Included

Memory and processor
256 MB SDRAM
packet buffer size: 2 MB
32 MB flash

Latency
1000 Mb Latency: < 3.2 µs
10 Gbps Latency: < 2.6 µs

Throughput
up to 107.2 million pps

Routing/switching capacity
144 Gbps
PoE capability
370 W PoE+

Stacking capabilities
IRF, with 9 switches

Management features
IMC – Intelligent Management Center
command-line interface
Web browser
SNMP Manager
IEEE 802.3 Ethernet MIB

Dimensions (W x D x H)
17.32 x 16.54 x 1.69 in (43.99 x 42.01 x 4.29 cm)
Weight
13.23 lb (6 kg)

What’s in the box
(1) HP 5500-24G-PoE+ EI Switch with 2 Interface Slots
Warranty
Limited Lifetime warranty: Advance hardware replacement with next-business-day delivery (available in most countries). See www.hp.com/networking/warrantysummary for duration details.;Electronic and telephone support: limited electronic and telephone support is available from HP refer to www.hp.com/networking/support for details on the support provided and the period during which support is available;Software releases: refer to www.hp.com/networking/support for details on the software releases provided and the period during which software releases are available for your product(s)
