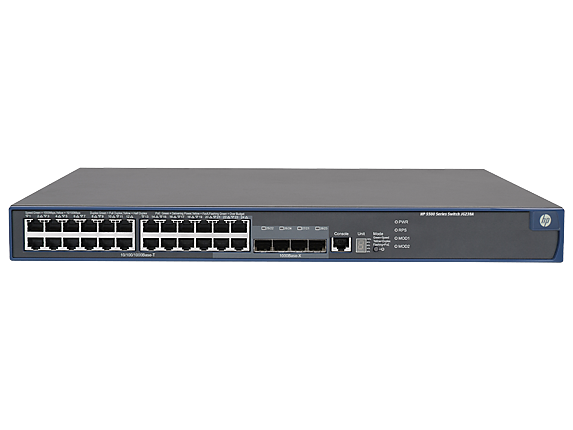

HP 5500-24G-PoE+ SI Switch

(JG238A)

Categories: HP 5500 SI, Networking, HP Switches, HP Campus LAN

The HP 5500 SI Switch Series provides managed Layer 2 and Layer 3 gigabit connectivity at the edge layer of large campus networks. The 5500 SI provides PoE+ and modular 10GbE uplink connectivity to allow for scalable pay as you grow, network growth.

Resilient Ring Protection Protocol (RRPP), Smart Link, and Intelligent Resilient Framework (IRF) deliver enterprise class reliability. The HP 5500 SI Switch Series can be managed with the HP Intelligent Management Center (IMC) for a single view of your entire network.

Details Specification

Product Specifications

Differentiator
HP 5500-24G-PoE+ SI Switch with 2 Interface Slots (24 10/100/1000Base-T PoE+ ports, 4 10/100/1000Base-T or SFP dual-personality ports and 2 extension slots)

Ports
24 RJ-45 autosensing 10/100/1000 PoE+ ports
4 dual-personality ports
2 port expansion module slots
Supports a maximum of 24 autosensing 10/100/1000 ports
Included

Memory and processor
128 MB SDRAM
packet buffer size: 2 MB
16 MB flash

Latency
1000 Mb Latency: < 3.2 µs
10 Gbps Latency: < 2.6 µs

Throughput
up to 107.2 million pps

Routing/switching capacity
144 Gbps
PoE capability
370 W PoE+

Stacking capabilities
IRF, with 4 switches

Management features
IMC – Intelligent Management Center
command-line interface
Web browser
SNMP Manager

Dimensions (W x D x H)
17.32 x 16.54 x 1.72 in (43.99 x 42.01 x 4.37 cm)
Weight
13.21 lb (5.99 kg)

What’s in the box
(1) HP 5500-24G-PoE+ SI Switch with 2 Interface Slots
Warranty
Limited Lifetime warranty: Advance hardware replacement with next-business-day delivery (available in most countries). See www.hp.com/networking/warrantysummary for duration details.;Electronic and telephone support: limited electronic and telephone support is available from HP refer to www.hp.com/networking/support for details on the support provided and the period during which support is available;Software releases: refer to www.hp.com/networking/support for details on the software releases provided and the period during which software releases are available for your product(s)
