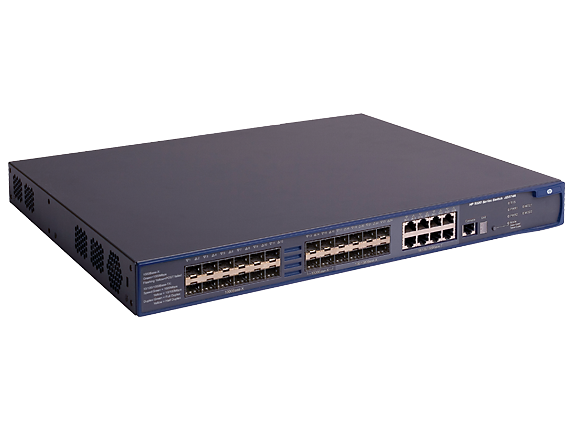

HP 5500-24G-SFP EI Switch

(JD374A)

Categories: Networking, HP Switches, HP Campus LAN, HP 5500 EI

The HP 5500 EI Switch Series delivers resiliency, security, and multiservice support capabilities at the edge layer of large campus and branch networks. The HP 5500 EI delivers flexibility, scalability and low TCO with a robust feature set supporting IRF stacking, Static & RIP Routing, OSPF, BGP, IS-IS, PoE+, ACLs, and IPv6.

The HP 5500 EI Switch Series can be managed with the HP Intelligent Management Center (IMC) for a single view of your entire network.

Details Specification

Product Specifications

Differentiator
HP 5500-24G-SFP EI Switch with 16 GE SFP ports, 8 10/100/1000Base-T or SFP dual-personality ports and 2 extension slots

Ports
24 fixed Gigabit Ethernet SFP ports
8 dual-personality ports
2 port expansion module slots
Included

Memory and processor
256 MB SDRAM
packet buffer size: 2 MB
32 MB flash

Latency
1000 Mb Latency: < 3.2 µs
10 Gbps Latency: < 2.6 µs

Throughput
up to 107.2 million pps

Routing/switching capacity
144 Gbps

Stacking capabilities
IRF, with 9 switches

Management features
IMC – Intelligent Management Center
command-line interface
Web browser
SNMP Manager
IEEE 802.3 Ethernet MIB

Power supply name
1 x JD362A

Dimensions (W x D x H)
17.32 x 14.17 x 1.72 in (44 x 36 x 4.36 cm)
Weight
13.89 lb (6.3 kg)

What’s in the box
(1) HP 5500-24G-SFP EI Switch with 2 Interface Slots
Warranty
Limited Lifetime warranty: Advance hardware replacement with next-business-day delivery (available in most countries). See www.hp.com/networking/warrantysummary for duration details.;Electronic and telephone support: limited electronic and telephone support is available from HP refer to www.hp.com/networking/support for details on the support provided and the period during which support is available;Software releases: refer to www.hp.com/networking/support for details on the software releases provided and the period during which software releases are available for your product(s)
