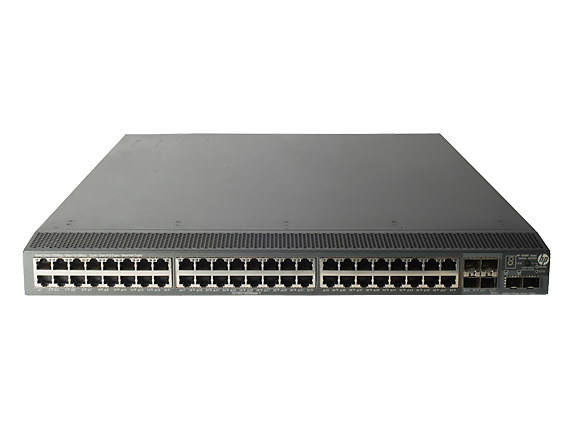

HP 5800AF-48G Switch

(JG225A)

Categories: HP 5800, Networking, HP Switches, HP Data Center Access

The HP 5800 Switch Series gives you versatility and high performance, in a 10/100/1000 top-of-rack, data center switch architecture that offers deployment flexibility. With choice of models that support high-density server links with copper or fiber, you can build superior networks that are tailored for your specific application needs.

While IRF reduces management complexities by up to 88%, it also delivers <50 msec convergence time. You can rely on the 5800 Switch Series to deliver high performance and lower TCO, while delivering business resilience and high availability.

Details Specification

Product Specifications

Differentiator
48-port GbE switch with six 10-GbE ports and reversible front-to-back airflow

Ports
(48) RJ-45 autosensing 10/100/1000 ports
(6) fixed 1000/10000 SFP+ ports

Memory and processor
1024 MB flash
Packet buffer size: 8 MB
512 MB SDRAM

Throughput
up to 161 Mpps

Routing/switching capacity
216 Gbps

Stacking capabilities
IRF
9 switches

Management features
Imc – intelligent management center
Command-line interface
Web browser
Snmp manager
Telnet
Https
Rmon1
Ftp

Dimensions (W x D x H)
17.32 x 25.98 x 1.72 in (43.99 x 65.99 x 4.37 cm)
Weight
22.05 lb (10 kg)

What’s in the box
(1) HP 5800AF-48G Switch
Warranty
Limited Lifetime warranty: Advance hardware replacement with next-business-day delivery (available in most countries). See www.hp.com/networking/warrantysummary for duration details.
Electronic and telephone support: limited electronic and telephone support is available from HP- for details on the duration of support provided with your product purchase
refer to www.hp.com/networking/warrantysummary.;Software releases: for details on the software releases available with your product purchase
refer to www.hp.com/networking/warrantysummary.
