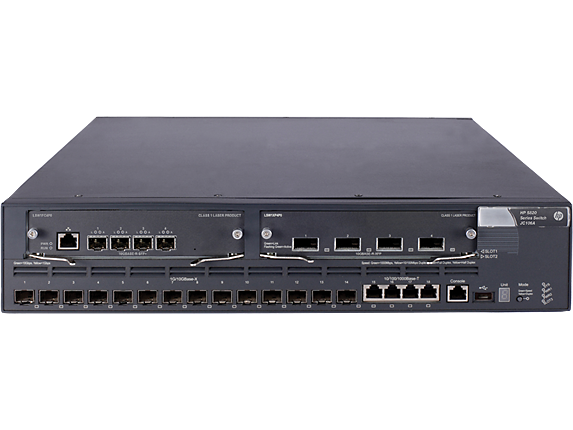

HP 5820-14XG-SFP+ Switch

(JC106A)

Categories: Networking, HP Switches, HP Data Center Access, HP 5820

The HP 5820 Switch Series provides a versatile and high-performance, 1/10GbE top-of-rack, data center switch architecture that offers you deployment flexibility. With a choice of models that supports high performance and low latency, you can deploy switches that are best suited to you needs.

While IRF reduces management complexities by up to 88%, it also delivers <50 msec convergence time. You can rely on the 5820 Switch Series to deliver high performance and lower TCO, while delivering business resilience and high availability.

Details Specification

Product Specifications

Differentiator
14-port SFP+ 10-GbE switch with four 10/100/1000 ports, two extended module slots and one open module slot

Ports
14 SFP+ 10GbE ports
2 extended module slots
1 open module slot
4 RJ-45 auto-negotiating 10/100/1000 ports
Supports a maximum of 14 SFP+ ports plus 8 8/4/2 Gbps Fibre Channel SFP+ ports, with optional module

Memory and processor
1024 MB SDRAM
packet buffer size: 2 MB
512 MB flash

Throughput
up to 363 million pps

Routing/switching capacity
488 Gbps

Stacking capabilities
IRF, with 9 switches

Management features
IMC – Intelligent Management Center
command-line interface
Web browser
SNMP Manager
Telnet
HTTPS
RMON1
FTP

Dimensions (W x D x H)
17.32 x 18.39 x 3.39 in (43.99 x 46.7 x 8.61 cm)
Weight
33.29 lb (15.1 kg)

What’s in the box
(1) HP 5820-14XG-SFP+ Switch with 2 Slots
Warranty
1 year warranty: with advance replacement and 10 calendar day delivery (available in most countries);Electronic and telephone support: limited electronic and telephone support is available from HP refer to www.hp.com/networking/support for details on the support provided and the period during which support is available;Software releases: refer to www.hp.com/networking/support for details on the software releases provided and the period during which software releases are available for your product(s)
