Differentiator

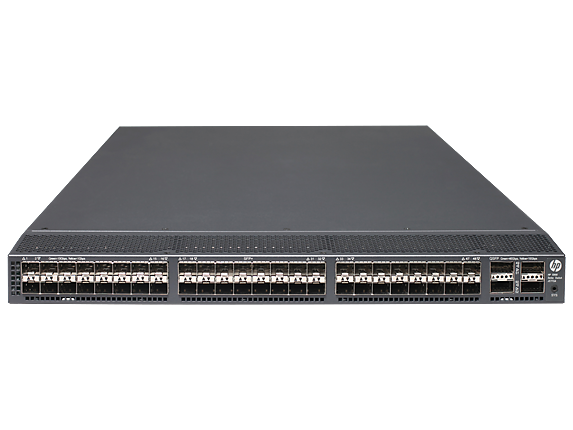

The HP 5900AF-48G-4XG-2QSFP+ Switch has 48 10/100/1000, 4 1G/10G SFP+ and 2 QSFP+ ports, dual hot-pluggable power supplies and fan trays, and ultra-low-latency. Ideally suited for deployment at the server access layer in large enterprise data centers
Ports
48 autosensing 10/100/1000 ports
4 fixed 1000/10000 SFP+ ports
2 QSFP+ 40-GbE ports
Memory and processor
512 MB flash
packet buffer size: 9 MB
2 GB SDRAM
Latency
10 Gbps Latency: < 1.5 µs
Throughput
up to 250 Mpps
Routing/switching capacity
336 Gbps
Stacking capabilities
IRF
4 switches
Management features
IMC – Intelligent Management Center
command-line interface
out-of-band management
SNMP Manager
Telnet
FTP
Dimensions (W x D x H)
17.32 x 18.11 x 1.72 in (43.99 x 46 x 4.37 cm)
Weight
28.66 lb (13 kg)
What's in the box
(1) HP 5900AF-48G-4XG-2QSFP+ Switch
Warranty
1 year warranty: with advance replacement and 10 calendar day delivery (available in most countries)
Electronic and telephone support: limited electronic and telephone support is available from HP refer to www.hp.com/networking/support for details on the support provided and the period during which support is available
Software releases: refer to www.hp.com/networking/support for details on the software releases provided and the period during which software releases are available for your product(s)
