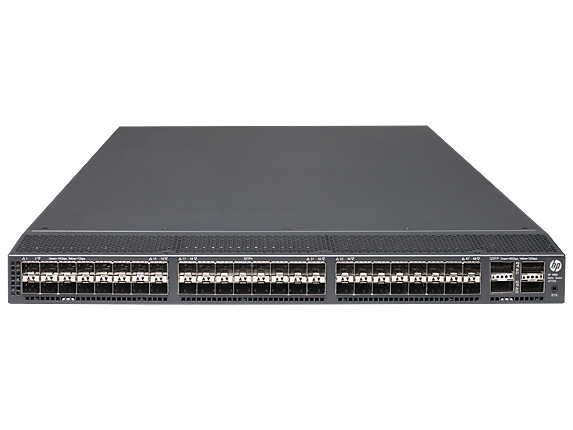

HP 5900AF-48XGT-4QSFP+ Switch

(JG336A)

Categories: HP 5900, Networking, HP Switches, HP Data Center Access

The HP 5900 Switch Series are low-latency 1/10GbE data center top-of-rack (ToR) switches. Perfect for deployment at server access layer in large and medium sized enterprises.

These switches may also be used in campus core/distribution layers where higher performance 40GbE connectivity is required with 10GbE links. Virtualized applications and server-to-server traffic require ToR switches that meet the needs for higher-performance server connectivity, convergence, virtual environment support, and low-latency.

Details Specification

Product Specifications

Differentiator
The HP 5900AF-48XGT-4QSFP+ Switch has 48 1G/10GBase-T and 4 QSFP+-ports, dual hot-pluggable power supplies and fan trays, and ultra-low-latency. It is ideally suited for deployment at the server access layer in large enterprise data centers.

Ports
48 RJ-45 1/10GbE ports
4 QSFP+ 40-GbE ports

Memory and processor
512 MB flash
packet buffer size: 9 MB
2 GB SDRAM

Latency
10 Gbps Latency: < 1.5 µs

Throughput
up to 952 Mpps

Routing/switching capacity
1280 Gbps

Stacking capabilities
IRF
4 switches

Management features
IMC – Intelligent Management Center
command-line interface
out-of-band management
SNMP Manager
Telnet
FTP

Dimensions (W x D x H)
17.32 x 25.98 x 1.72 in (43.99 x 65.99 x 4.37 cm)
Weight
28.66 lb (13 kg)

What’s in the box
(1) HP 5900AF-48XGT-4QSFP+ Switch
Warranty
1 year warranty: with advance replacement and 10 calendar day delivery (available in most countries)
Electronic and telephone support: limited electronic and telephone support is available from HP refer to www.hp.com/networking/support for details on the support provided and the period during which support is available Software releases: refer to www.hp.com/networking/support for details on the software releases provided and the period during which software releases are available for your product(s)
