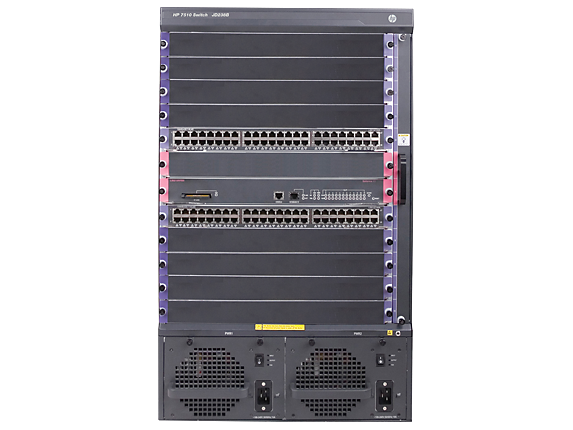

HP 7510 Switch

(JG509A)

Categories: , , ,

The HP 7500 Switch Series is a versatile modular switch designed to meet the evolving needs of integrated services networks. It can be deployed at the enterprise LAN core, aggregation layer and wiring closet edge and offers 40GbE connectivity, cost-effective wire-speed 10GbE ports, high density PoE/PoE+, advanced functionality with service modules and BYOD-ready features with the wired-WLAN module.

With HP Intelligent Resilient Fabric (IRF) technology, the HP 7500 Switch Series can be virtualized across four chassis with a single management interface—enabling flatter, more agile networks.

Product Specifications

Differentiator
Bundle with one HP 7510 Switch, two 48-port Gig-T PoE+ modules, and one 768Gbps MPU

Ports
10 I/O module slots
Supports a maximum of 84 10GbE ports or 480 autosensing 10/100/1000 ports or 480 SFP ports, or a combination
Included

Memory and processor
MIPS64 @ 1000 MHz
1 GB RAM

Throughput
714 million pps

Routing/switching capacity
1152 Gb/s
Stacking capabilities
IRF, with 4 chassis

Management features
IMC – Intelligent Management Center
command-line interface
Web browser
out-of-band management (serial RS-232C)
SNMP Manager
Telnet
terminal interface (serial RS-232C)
modem interface
IEEE 802.3 Ethernet MIB
Ethernet Interface MIB

Dimensions (W x D x H)
17.17 x 16.54 x 27.87 in (43.6 x 42.0 x 70.8 cm)
Weight
211 lb (95.71 kg)

What's in the box
(1) HP 7510 Switch Chassis, (1) HP 7500 768Gbps Fabric Module, (2) HP 7500 48-port Gig-T PoE+ Extended Module
Warranty
1 year, advance replacement, 10 calendar day, phone support, software releases
