HP 7510 Switch

(JD238B)

Categories: Networking, HP Switches, HP Campus LAN, HP 7500

The HP 7500 Switch Series is a versatile modular switch designed to meet the evolving needs of integrated services networks. It can be deployed at the enterprise LAN core, aggregation layer and wiring closet edge and offers 40GbE connectivity, cost-effective wire-speed 10GbE ports, high density PoE/PoE+, advanced functionality with service modules and BYOD-ready features with the wired-WLAN module.

With HP Intelligent Resilient Fabric (IRF) technology, the HP 7500 Switch Series can be virtualized across four chassis with a single management interface—enabling flatter, more agile networks.

Details Specification

Product Specifications

Differentiator

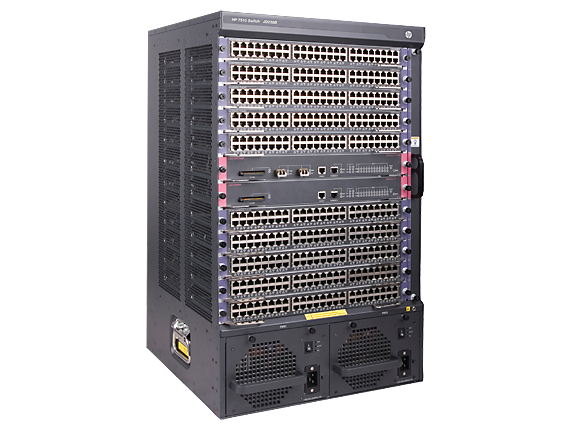

The HP 7510 Switch is a 12-slot horizontal chassis, 16U, with 10 I/O and 2 fabric slots

Ports
10 I/O module slots
Supports a maximum of 84 10GbE ports or 480 autosensing 10/100/1000 ports or 480 SFP ports or 40 40GbE ports, or a combination
Included

Memory and processor
MIPS64 @ 1000 MHz
1 GB RAM

Throughput
714 million pps

Routing/switching capacity
1152 Gb/s
Stacking capabilities
IRF, with 4 chassis

Management features
IMC – Intelligent Management Center
command-line interface
Web browser
out-of-band management (serial RS-232C)
SNMP Manager
Telnet
terminal interface (serial RS-232C)
modem interface
IEEE 802.3 Ethernet MIB
Ethernet Interface MIB

Dimensions (W x D x H)
17.17 x 16.54 x 27.87 in (43.6 x 42.0 x 70.8 cm)
Weight
211 lb (95.71 kg)

What’s in the box
(1) HP 7510 Switch Chassis
Warranty
1 year, advance replacement, 10 calendar day, phone support, software releases
