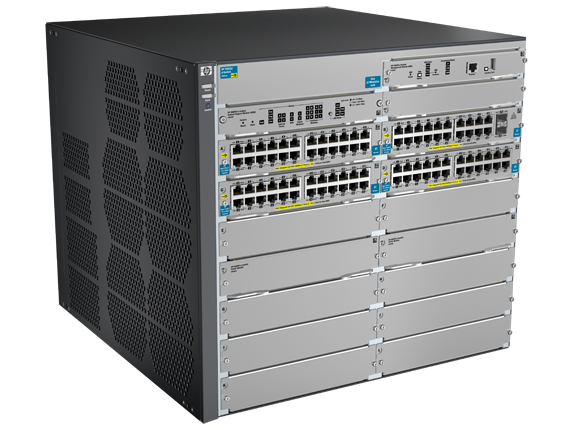

HP 8212 zl Switch

(J9641A)

Categories: Networking, HP Switches, HP Campus LAN, HP 8200 zl

The HP 8200 zl Switch Series provides performance and resilience for enterprise edge and small core deployments. This modular switch with a 1 Tbps backplane offers redundant management, fabric and power, flexible connectivity options, PoE+ and a robust Layer 3 feature set with no software licensing.

Architected with a purpose-built HP Networking ASIC, the 8200 zl Switch Series delivers wire-speed classification and policy enforcement, supports virtualization with HP AllianceOne solutions and is Software-defined Network (SDN) ready with OpenFlow support.

Details Specification

Product Specifications

Differentiator
12-slot modular switch chassis with 12 open module slots
management, fabric and support modules already installed
Premimum switch software included

Ports
12 open module slots
Supports a maximum of 288 autosensing 10/100/1000 ports or 96 10GbE ports or 288 mini-GBICs, or a combination
Included

Memory and processor
Freescale PowerPC 8540 @ 666 MHz
4 MB flash
128 MB compact flash
256 MB DDR SDRAM

Latency
1000 Mb Latency: < 3.7 µs
10 Gbps Latency: < 2.1 µs

Throughput
739 Mpps

Routing/switching capacity
993.6 Gbps

Switch fabric speed
1.1 Tbps

Management features
IMC – Intelligent Management Center
command-line interface
Web browser
configuration menu
out-of-band management (serial RS-232C)

Dimensions (W x D x H)
17.5 x 18.7 x 15.6 in (44.45 x 47.5 x 39.62 cm)
Weight
50.44 lb (22.88 kg)

What’s in the box
(1) HP 8212 zl Switch, with Premium Software pre-installed
Warranty
Limited Lifetime warranty: Advance hardware replacement with next-business-day delivery (available in most countries). See www.hp.com/networking/warrantysummary for duration details.
