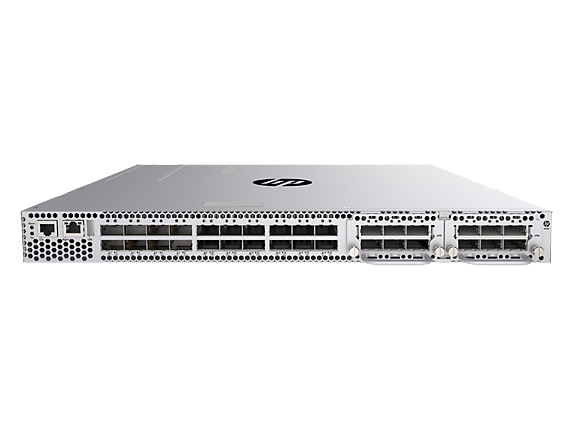

HP Altoline 6700 32QSFP+ PPC ONIE AC Front-to-Back Switch

(JL114A)

Categories: Networking, HP Switches, HP Data Center Access, HP Altoline 6700

The HP Altoline 6700 Switch Series is an open-networking, disaggregated family of low-latency 40GbE data center switches in a 1U form factor. Perfect for deployment in web-scale environments as a 10GbE server access or as a 40GbE spine switches it is optimized for data center hot/cold isles deployments with reversible airflow.

Hardware support for VXLAN is ideal for deployment in multi-tenancy and overlay environments. Take advantage of the streamlined design and ONIE boot loader to deploy a choice of network operating systems with the freedom to select the management and orchestration tools.

Details Specification

Product Specifications

Differentiator
The HP 6700-32QSFP+ Switch has 32 QSFP+ ports, dual hot-pluggable AC power supplies and port-to-power fan trays, and ultra-low-latency. It is ideally suited for deployment at the spine and server access layer in large enterprise data centers.

Ports
(32) QSFP+ 40GbE ports

Memory and processor
Freescale PPC @ 1.2 GHz
2 GB DDR3 SDRAM
Packet buffer size: 12 MB
8 GB SD Card

Latency
40 Gbps Latency: > 0.6 µs

Throughput
up to 1440 Mpps

Routing/switching capacity
2560 Gbps

Management features
Command-line interface
Out-of-band management
SNMP manager
Telnet
FTP

Power supply name
2 x PSUs

Dimensions (W x D x H)
17.32 x 18.5 x 1.72 in (44 x 47 x 4.4 cm)
Weight
18.52 lb (8.4 kg)

What’s in the box
(1) HP 6700-32QSFP+ Switch, (2) AC Power Supplies, (5) Fan Trays (port-to-power)
Warranty
3 year warranty: with advance replacement and 10 calendar day delivery (available in most countries)
Electronic and telephone support: limited electronic and telephone support is available from HP- for details on the duration of support provided with your product purchase
refer to www.hp.com/networking/warrantysummary.;Software releases: for details on the software releases available with your product purchase
refer to www.hp.com/networking/warrantysummary.
