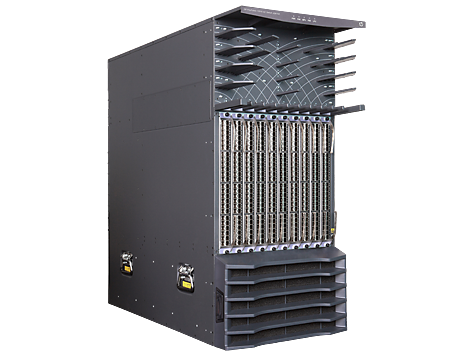

HP FlexFabric 12910 Switch

(JG619A)

Categories: Networking, HP Switches, HP Data Center Core, HP FlexFabric 12900

The HP FlexFabric 12900 Switch Series is a next-generation modular data center core switch designed to support virtualized data centers and the evolving needs of private and public cloud deployments. It delivers unprecedented levels of performance, buffering, scale, and availability with high density 10GbE, 40GbE and 100GbE connectivity.

The switch Series includes 10-slot and 16-slot chassis. Ready for software-defined networking (SDN), the FlexFabric 12900 Switch supports full Layer 2 and 3 features and advanced data center features to build resilient scalable fabric and achieve convergence.

Details Specification

Product Specifications

Differentiator
18-slot vertical chassis, 21U, with 2 MPU slots, 6 switch fabric slots and 10 I/O slots

Ports
(10) I/O module slots
Supports a maximum of 480 Gigabit Ethernet ports or 480 1/10GbE ports or 480 1/10GBASE-T ports or 240 40GbE ports or 40 100GbE ports, or a combination

Memory and processor
Quad Core MIPS64 @ 1.2 GHz
1 GB flash
8 GB DDR2 SDRAM

Throughput
up to 12 Bpps
Switching capacity
19.2 Tbps

Management features
Imc – intelligent management center
Command-line interface
Out-of-band management (serial rs-232c)
Snmp manager
Telnet
Terminal interface (serial rs-232c)
Modem interface
Ieee 802.3 ethernet mib
Ethernet interface mib

Dimensions (W x D x H)
17.32 x 32.68 x 36.61 in (43.99 x 83 x 92.99 cm)
Weight
187.46 lb (85.03 kg)

What’s in the box
(1) HP FlexFabric 12910 Switch AC Chassis
Warranty
1 year warranty: with advance replacement and 10 calendar day delivery (available in most countries)
Electronic and telephone support: limited electronic and telephone support is available from HP- for details on the duration of support provided with your product purchase
refer to www.hp.com/networking/warrantysummary.
Software releases: for details on the software releases available with your product purchase
refer to www.hp.com/networking/warrantysummary.
