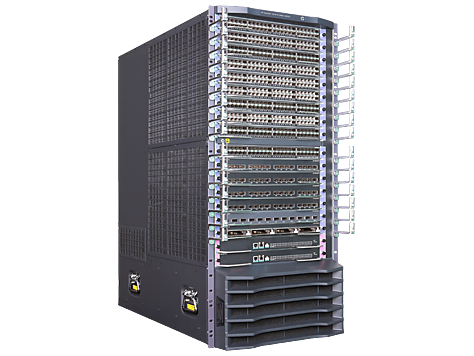

The HP FlexFabric 12900 Switch Series is a next-generation modular data center core switch designed to support virtualized data centers and the evolving needs of private and public cloud deployments. It delivers unprecedented levels of performance, buffering, scale, and availability with high density 10GbE, 40GbE and 100GbE connectivity.
The switch Series includes 10-slot and 16-slot chassis. Ready for software-defined networking (SDN), the FlexFabric 12900 Switch supports full Layer 2 and 3 features and advanced data center features to build resilient scalable fabric and achieve convergence.
* Manufacturer’s Suggested Retail Price
Differentiator
24-slot horizontal chassis, 23U, with 2 MPU slots, 6 switch fabric slots and 16 I/O slots
Ports
(16) I/O module slots
Supports a maximum of 768 Gigabit Ethernet ports or 768 1/10GbE ports or 768 1/10GBASE-T ports or 384 40GbE ports or 64 100GbE ports, or a combination
Memory and processor
Quad Core MIPS64 @ 1.2 GHz
1 GB flash
8 GB DDR2 SDRAM
Throughput
up to 19.2 Bpps
Switching capacity
30.7 Tbps
Management features
Imc – intelligent management center
Command-line interface
Out-of-band management (serial rs-232c)
Snmp manager
Telnet
Terminal interface (serial rs-232c)
Modem interface
Ieee 802.3 ethernet mib
Ethernet interface mib
Dimensions (W x D x H)
17.32 x 32.68 x 40.08 in (44 x 83 x 101.8 cm)
Weight
163.69 lb (74.25 kg)
What’s in the box
(1) HP FlexFabric 12916 Switch AC Chassis
Warranty
1 year warranty: with advance replacement and 10 calendar day delivery (available in most countries)
Electronic and telephone support: limited electronic and telephone support is available from HP- for details on the duration of support provided with your product purchase
refer to www.hp.com/networking/warrantysummary.
Software releases: for details on the software releases available with your product purchase
refer to www.hp.com/networking/warrantysummary.
