HPE ProLiant DL20 Gen11 Entry – rack-mountable Xeon E-2414 2.6 GHz – 16 GB – no HDD

(P65393-B21)

Categories: Servers, HP ProLiant, Rackmount Servers, DL20 Gen11

Are you looking for a compact and versatile 1U server that supports edge workloads like security monitoring in a variety of environments? The reliable HPE ProLiant DL20 Gen11 server delivers a compact and versatile server with enhanced security at an affordable price. Deploy the short-depth rack form factor in small, remote, or branch offices, as a powerful point of sale platform in transport, retail, and hospitality environments or as a flexible configuration for customization in space constrained environments of military and government customers. Blending performance, reliability, and manageability, this one-socket, 1U server featuring Intel Xeon E processors provide unique enterprise-class capabilities at a great value-making it an ideal rack server platform for growing businesses, enterprises, and service providers. Outstanding configuration flexibility caters to a variety of business requirements and a wide range of qualified options fits a variety of needs.

Quick tech specs

Server
1-way
RAM 16 GB
non-hot-swap 3.5″ bay(s)
Matrox G200
no OS
rack-mountable 1U
1 x Xeon E-2414 / up to 4.5 GHz
SATA
no HDD
Gigabit Ethernet
monitor: none

Product Specifications

BrandHPE

Product LineHPE ProLiant

ModelDL20 Gen11 Entry

ManufacturerHewlett-Packard

Clock Speed2.6 GHZ

CoresQuad-Core

Max Turbo Speed4.5 GHZ

Processor BrandIntel

Processor Main FeaturesIntel Smart Cache, Intel Turbo Boost Technology 2

Processor NumberE-2414

Processor TypeXeon

Processors Installed1

Server Scalability1-way

Total Processor Supported1

UpgradabilityUpgradable

Available Memory Slots3

Cache MemoryL3 cache

Cache Memory Installed12 megabyte

Configuration Features1 x 16 GB

Data Integrity CheckECC

FeaturesHPE Standard Memory, Unbuffered

Max Memory Supported128 GB

Memory Slots4

Memory Speed4800 megahertz

Memory TechnologyDDR5 SDRAM

RAM Installed16 GB

Rated Memory Speed4800 megahertz

Drive TypeNo optical drive

Optical Drive TypeNo optical drive, None

Optical Drive Type (2nd)None

RAID LevelsRAID 0, RAID 1, RAID 10, RAID 5

Storage (2nd)None

Storage (3rd)None

Storage (4th)None

Storage Controller (2nd)None

Storage Controller NameIntel VROC SATA Software RAID

Storage Controller TypeSerial ATA

TypeNone

Hard Drive Interface TypeNo HDD

Data Link ProtocolsEthernet, Fast Ethernet, Gigabit Ethernet

Ethernet ControllersBroadcom BCM5719

Ethernet Ports4 x Gigabit Ethernet

FeaturesACPI support, PXE support, Wake On LAN (WOL)

Remote ManagementIPMI 2.0, SNMP 3

Expansion Bays1 (total) / 1 (free) x external, 2 (total) / 2 (free) x 3.5″ LFF

Slots1 (total) / 1 (free) x Open Compute Project mezzanine (OCP) 3.0, 1 (total) / 1 (free) x PCIe 5.0 x16 – half-length, full-height (x16 mode)

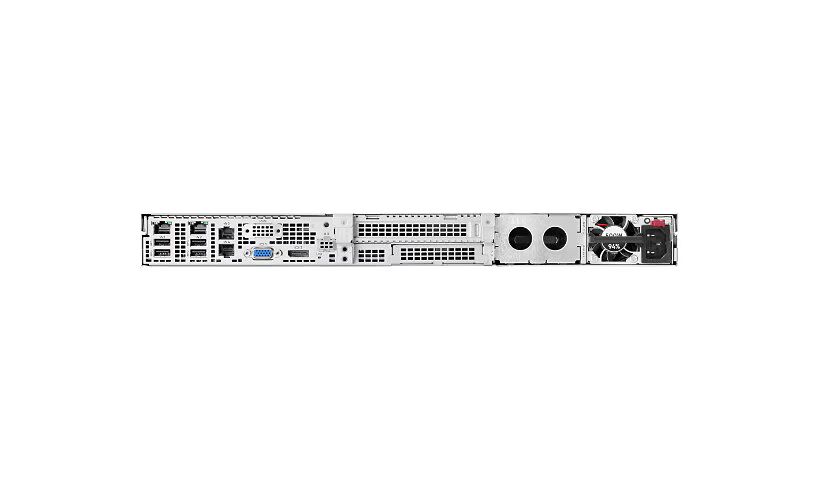

Interface Provided1 x DisplayPort, 1 x HPE iLO – Type A (1 in front) (service port), 1 x VGA, 2 x USB 3.2 Gen 2×2 (2 internal), 4 x LAN (Gigabit Ethernet) – RJ-45, 5 x USB 3.2 Gen 1×1 – Type A (1 front, 4 rear)

Display TechnologyNone.

Graphics Controller ModelMatrox G200

Graphics Processor SeriesMatrox G200

Video InterfacesDisplayPort, VGA

Audio Input TypeNone

Installed Size16 megabyte

Frequency50/60 hertz

Power Device TypePower supply

Power Provided290 watt

Power Supplies Installed1

Power Supplies Supported2

Required VoltageAC 100-120/200-240 volt

80 PLUS Certification80 PLUS Platinum

Operating System EditionNo operating system

OS CertifiedMicrosoft Windows Server 2019, Microsoft Windows Server 2022, VMware ESXi 8.0 update 2

Software TypeHPE iLO Management, HPE Intelligent Provisioning

Built-in DevicesLED panel

Chipset TypeIntel C262

Embedded SecurityTrusted Platform Module (TPM 2.0) Security Chip

Form FactorRack-mountable

Form Factor (RAM)DIMM 288-pin

Storage Controller InterfaceSerial ATA-600

Max Operating Temperature95 degree Fahrenheit

Min Operating Temperature50 degree Fahrenheit

Operating Humidity8 – 90% RH (non-condensing)

Sound Emission28 dBA

CountryAmericas, Asia Pacific

Printer Product TypeNone

Manufacturer Form FactorRack-mountable

Packaged Quantity1

Product TypeServer

Server Storage BaysNon-hot-swap

Server Swappable Drive Form Factor3.5″

Server Swappable Drive Form Factor (metric)8.9 cm

Server Swappable Drive InterfaceSATA

Included Accessories3 performance single rotor non-hot plug and non-redundant fans, HPE Short Friction Rail kit

Height1.7 inch

Height (Rack Units)1

Weight19.84 lbs

Width17.1 inch

Depth15 inch

Color CategoryBlack, Silver

Compliant StandardsACPI 6.3, Active Directory v1.0, AES, ASHRAE Class A3, ASHRAE Class A4, EU Lot 9, FIPS 140-2, IPv6 Ready, PCI DSS, Redfish API, SMBIOS 3.2, TLS v1.2, Triple DES, UEFI 2.9, WEEE 2002/95/EC

ENERGY STAR CertifiedYes

Energy Star Version4.0

TCO CertifiedNo

On-Site WarrantyOn-site

Service & Support DetailsLimited warranty – parts and labor – 3 years – on-site – response time: next business day

Limited Warranty3 Year
