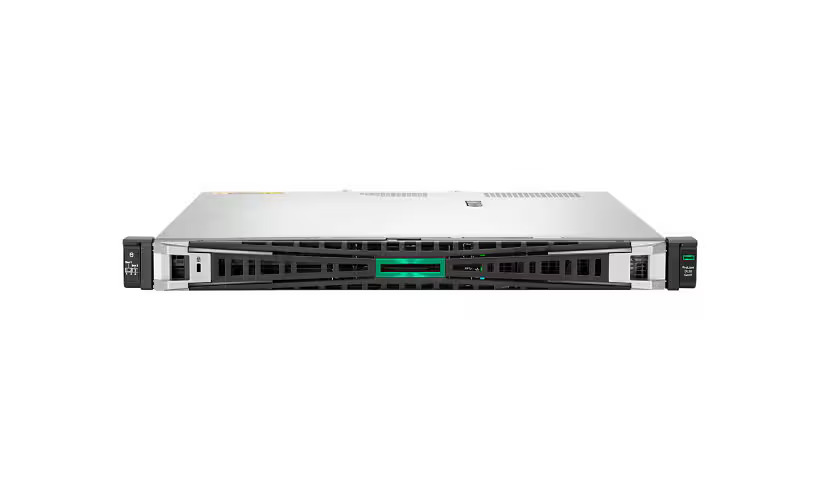

HPE ProLiant DL20 Gen11 – rack-mountable Xeon E-2436 2.9 GHz – 32 GB – SSD 2 x 960 GB

(P71682-005)

Are you looking for a compact and versatile 1U server that supports edge workloads like security monitoring in a variety of environments? The reliable HPE ProLiant DL20 Gen11 server delivers a compact and versatile server with enhanced security at an affordable price. Deploy the short-depth rack form factor in small, remote, or branch offices, as a powerful point of sale platform in transport, retail, and hospitality environments or as a flexible configuration for customization in space constrained environments of military and government customers. Blending performance, reliability, and manageability, this one-socket, 1U server featuring Intel Xeon E processors provide unique enterprise-class capabilities at a great value-making it an ideal rack server platform for growing businesses, enterprises, and service providers. Outstanding configuration flexibility caters to a variety of business requirements and a wide range of qualified options fits a variety of needs.

Quick tech specs

  • Server
  • 1-way
  • RAM 32 GB
  • hot-swap 2.5″ bay(s)
  • Matrox G200
  • no OS
  • Smart Choice
  • rack-mountable 1U
  • 1 x Xeon E-2436 / up to 5 GHz
  • SATA/SAS/PCI Express
  • SSD 2 x 960 GB
  • Gigabit Ethernet
  • monitor: none

Product Specifications

System Features
BrandHPE
Product LineHPE ProLiant
ModelDL20 Gen11
ManufacturerHewlett-Packard
Bus TypeOpen Compute Project mezzanine (OCP)
Clock Speed2.9 GHZ
Cores6-core
Max Turbo Speed5 GHZ
Processor BrandIntel
Processor NumberE-2436
Processor TypeXeon
Processors Installed1
Server Scalability1-way
Total Processor Supported1
UpgradabilityUpgradable
Available Memory Slots3
Cache Memory Installed18 megabyte
Configuration Features1 x 32 GB
Data Integrity CheckECC
FeaturesUnbuffered
Max Memory Supported128 GB
Memory Slots4
Memory Speed4800 megahertz
Memory TechnologyDDR5 SDRAM
RAM Installed32 GB
Rated Memory Speed4800 megahertz
Buffer Size4 GB
Channel Quantity8
Drive TypeNo optical drive
Hard Drive Capacity960 GB
Installed Quantity2
Interface ClassSerial ATA
Optical Drive TypeNo optical drive, None
Optical Drive Type (2nd)None
SSD Form Factor2.5″
Storage (2nd)None
Storage (3rd)None
Storage (4th)None
Storage Controller (2nd)None
Storage Controller NameHPE MR408i-o Gen11 SPDM
Storage Controller TypeRAID
TypeNone
Hard Drive Interface TypeSSD
Data Link ProtocolsEthernet, Fast Ethernet, Gigabit Ethernet
Ethernet ControllersBroadcom BCM5719
Ethernet Ports4 x Gigabit Ethernet
FeaturesPXE support, Wake On LAN (WOL)
Remote Management ControllerIntegrated Lights-Out 6
Expansion Bays4 (total) / 2 (free) x hot-swap 2.5″ SFF
Slots1 (total) / 1 (free) x Open Compute Project mezzanine (OCP) (internal), 1 (total) / 1 (free) x Open Compute Project mezzanine (OCP) 3.0 (external), 1 (total) / 1 (free) x PCIe 5.0 x16 – half-length, full-height (x16 mode)
Interface Provided1 x DisplayPort, 1 x HPE iLO – Type A (1 front) (service port), 1 x VGA, 4 x LAN (Gigabit Ethernet), 5 x USB 3.2 Gen 1 – Type A (1 front, 4 rear)
Display TechnologyNone.
Graphics Controller ModelMatrox G200
Graphics Processor SeriesMatrox G200
Video InterfacesDisplayPort, VGA
Audio Input TypeNone
Installed Size16 megabyte
Frequency50/60 hertz
Power Device TypePower supply – hot-plug
Power Provided500 watt
Power Supplies Installed2
Power Supplies Supported2
Redundant Power SupplyOptional
Redundant Power Supply Supported1+1 (with optional power supply)
Required VoltageAC 100-120/200-240 volt
80 PLUS Certification80 PLUS Platinum
Operating System EditionNo operating system
Software TypeHPE iLO Management, HPE Intelligent Provisioning
Built-in DevicesLED panel
Chipset TypeIntel C262
Embedded SecurityTrusted Platform Module (TPM) Security Chip
Form FactorRack-mountable
Form Factor (RAM)DIMM 288-pin
Storage Controller InterfaceSerial ATA-600 / SAS 3.0 / PCI Express (NVMe)
Max Operating Temperature95 degree Fahrenheit
Min Operating Temperature50 degree Fahrenheit
Operating Humidity8 – 90% RH (non-condensing)
Controllers Included1
CountryCanada, United States
Printer Product TypeNone
Hot-Swap Bays4
Manufacturer Form FactorRack-mountable
Packaged Quantity1
Product TypeServer
Server Storage BaysHot-swap
Server Swappable Drive Form Factor2.5″
Server Swappable Drive Form Factor (metric)6.4 cm
Server Swappable Drive InterfaceSATA/SAS/PCI Express
Included Accessories3 performance single rotor non-hot plug and non-redundant fans, HPE Easy Install Rails
Height1.7 inch
Height (Rack Units)1
Weight19.84 lbs
Width17.1 inch
Depth14.9 inch
Color CategoryBlack, Silver
Compliant StandardsACPI 6.3, Active Directory v1.0, AES, ASHRAE Class A3, ASHRAE Class A4, Redfish API, SMBIOS 3.2, TLS v1.2, Triple DES, UEFI 2.9
ENERGY STAR CertifiedNo
TCO CertifiedNo
On-Site WarrantyOn-site
Service & Support DetailsLimited warranty – parts and labor – 3 years – on-site – response time: next business day
Limited Warranty3 Year
