Home » Products » Servers » HPE ProLiant DL320 Gen11 – rack-mountable Xeon Gold 5416S 2 GHz – 32 GB – no HDD

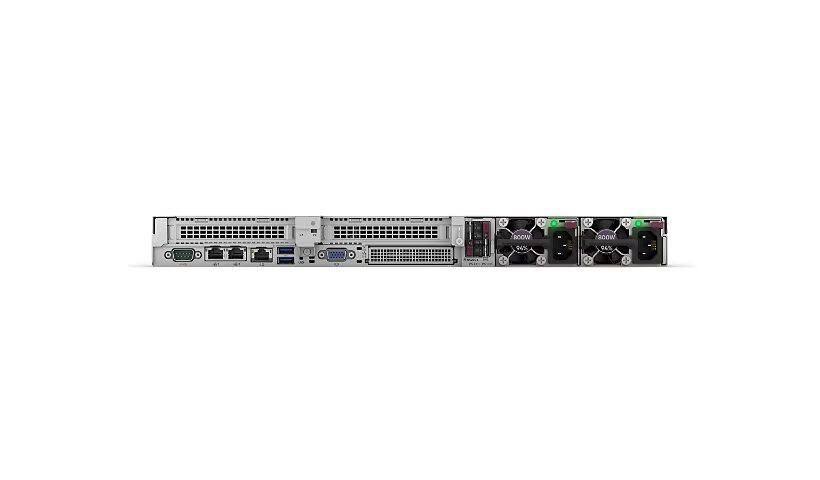

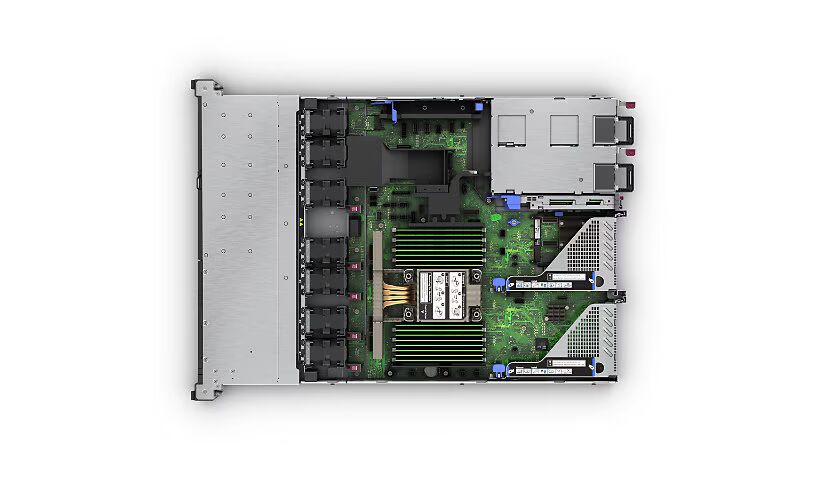

HPE ProLiant DL320 Gen11 – rack-mountable Xeon Gold 5416S 2 GHz – 32 GB – no HDD

(P57688-B21)

Categories: Servers, HP ProLiant, Rackmount Servers, DL320 Gen11

Are you looking to run edge AI workloads like Computer Vision that need GPU accelerators or distributed data solutions that require expandable storage? The HPE ProLiant DL320 Gen11 is a 1U 1P server with a unique compact design and workload-driven modular design that is purpose-built for edge computing delivering exceptional performance at 1P economics and an excellent choice for both virtualized and containerized workloads. Powered by 4th and 5th Gen Intel Xeon Scalable Processors with up to 60 cores, 270W, increased memory capability (up to 2 TB 5600 MT/s), and high-speed PCIe Gen5 supporting up to four single-wide GPUs (or two double-wide), the HPE ProLiant DL320 Gen11 server is a perfect low-cost, 1U 1P, performance solution. The HPE ProLiant Gen11 servers are engineered to optimize IT at the edge with a cloud operating experience, built-in security, and optimized performance for workloads to drive your business forward.

Quick tech specs

Server
1-way
RAM 32 GB
hot-swap 2.5″ bay(s)
Gigabit Ethernet
monitor: none
rack-mountable 1U
1 x Xeon Gold 5416S / up to 4 GHz
SATA/SAS
no HDD
no OS

Product Specifications

BrandHPE

Product LineHPE ProLiant

ModelDL320 Gen11

ManufacturerHewlett-Packard

Bus TypeOpen Compute Project mezzanine (OCP)

Clock Speed2 GHZ

Cores16-core

Max Turbo Speed4 GHZ

Processor BrandIntel

Processor Main FeaturesHyper-Threading Technology, Intel Turbo Boost Technology 2

Processor Number5416S

Processor TypeXeon Gold

Processors Installed1

Server Scalability1-way

Total Processor Supported1

UpgradabilityUpgradable

Available Memory Slots15

Cache MemoryL3 cache

Cache Memory Installed30 megabyte

Configuration Features1 x 32 GB

Data Integrity CheckAdvanced ECC

Features8-channel memory architecture, HPE SmartMemory, Registered

Max Memory Supported2.04 TB

Memory Slots16

Memory Speed4400 megahertz

Memory TechnologyDDR5 SDRAM

RAM Installed32 GB

Rated Memory Speed4800 megahertz

Data Link ProtocolsEthernet, Fast Ethernet, Gigabit Ethernet

Ethernet Ports2 x Gigabit Ethernet

FeaturesACPI support, PXE support, Wake On LAN (WOL)

Remote ManagementIPMI 2.0, SNMP 3

Remote Management ControllerIntegrated Lights-Out 6

Buffer Size4 GB

Channel Quantity8

Drive TypeNo optical drive

Optical Drive TypeNo optical drive, None

Optical Drive Type (2nd)None

RAID LevelsRAID 0, RAID 1, RAID 10, RAID 5, RAID 50, RAID 60

Storage (2nd)None

Storage (3rd)None

Storage (4th)None

Storage Controller (2nd)None

Storage Controller NameHPE MR408i-o Gen11 SPDM

Storage Controller TypeRAID

TypeNone

Hard Drive Interface TypeNo HDD

Expansion Bays8 (total) / 8 (free) x hot-swap 2.5″ SFF

Slots1 (total) / 1 (free) x PCIe 5.0 x16 / Open Compute Project mezzanine (OCP) 3.0 (x16 mode), 2 (total) / 2 (free) x PCIe 5.0 x16 – half-length, full-height

Interface Provided1 x HPE iLO (1 in front) (service port), 1 x USB 2.0, 1 x VGA, 2 x LAN (Gigabit Ethernet), 3 x USB 3.2 Gen 1 (1 front, 2 rear)

Display TechnologyNone.

Video InterfacesVGA

Installed Size16 megabyte

Power Device TypePower supply – hot-plug

Power Provided500 watt

Power Supplies Installed1

Power Supplies Supported2

Redundant Power SupplyOptional

Redundant Power Supply Supported1+1 (with optional power supply)

Required VoltageAC 100-240 volt

80 PLUS Certification80 PLUS Platinum

Operating System EditionNo operating system

OS CertifiedCentOS, Microsoft Windows Server 2019, Microsoft Windows Server 2022, Red Hat Enterprise Linux 8.6, Red Hat Enterprise Linux 9.0, SUSE Linux Enterprise Server 15 SP4, Ubuntu 22.04 LTS, VMware ESXi 7.0 update 3, VMware ESXi 8.0, VMware ESXi 8.0 update 1

Built-in DevicesLED panel

Chipset TypeIntel C741

Embedded SecurityTrusted Platform Module (TPM 2.0) Security Chip

Form FactorRack-mountable

Form Factor (RAM)DIMM 288-pin

Storage Controller InterfaceSerial ATA-600 / SAS 3.0 / PCI Express (NVMe)

Max Operating Temperature95 degree Fahrenheit

Min Operating Temperature50 degree Fahrenheit

Operating Humidity8 – 90% RH (non-condensing)

Controllers Included1

Printer Product TypeNone

Hot-Swap Bays8
