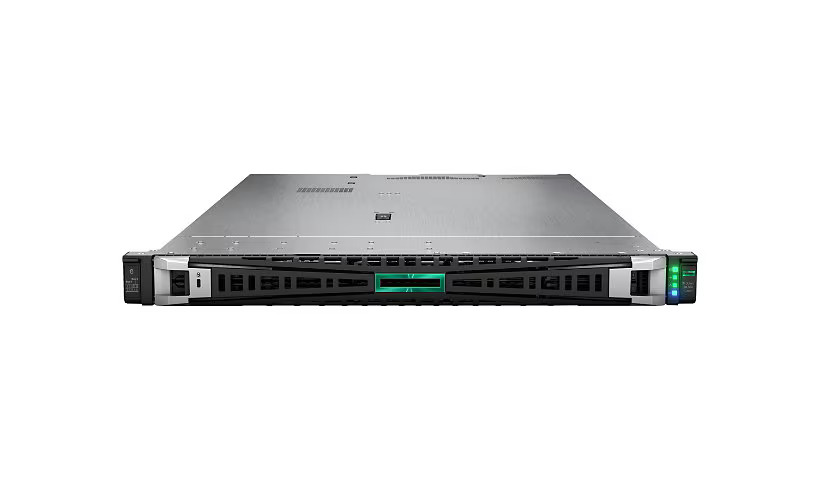

HPE ProLiant DL360 Gen11 Network Choice – rack-mountable Xeon Gold 5415+ 2.9 GHz – 32 GB – no HDD

(P51932-B21)

Categories: Servers, HP ProLiant, Rackmount Servers, DL360 Gen11

Are you looking for a scalable, compute-dense solution for hybrid cloud or other data workloads in a virtualized and containerized environment? The HPE ProLiant DL360 Gen11 server is a rack-optimized, 1U 2P solution that delivers exceptional compute performance, upgraded high-speed data transfer rate, and memory depth at 2P compute capability. Powered by 4th and 5th Gen Intel Xeon Scalable Processors with up to 64 cores, 8TB of memory, and 20 EDSFF drives as well as increased memory bandwidth and high-speed PCIe Gen5 I/O, the HPE ProLiant DL360 Gen11 server is a perfect solution for Electronic Design Automation (EDA), CAD, and VDI. The HPE ProLiant 360 Gen11 server is engineered to optimize IT with a cloud operating experience, built-in security, and optimized performance for workloads to drive your business forward.

Quick tech specs

Server
2-way
RAM 32 GB
hot-swap 2.5″ bay(s)
Gigabit Ethernet, 10 Gigabit Ethernet
monitor: none
rack-mountable 1U
1 x Xeon Gold 5415+ / up to 4.1 GHz
SATA
no HDD
no OS
BTO

Product Specifications

BrandHPE

Product LineHPE ProLiant

ModelDL360 Gen11 Network Choice

ManufacturerHewlett-Packard

Clock Speed2.9 GHZ

Cores8-core

Max Turbo Speed4.1 GHZ

Processor BrandIntel

Processor Main FeaturesHyper-Threading Technology, Intel Turbo Boost Technology 2

Processor Number5415+

Processor SocketLGA4677 Socket-E

Processor TypeXeon Gold

Processors Installed1

Server Scalability2-way

Total Processor Supported2

UpgradabilityUpgradable

Available Memory Slots15

Cache MemoryL3 cache

Cache Memory Installed22.5 megabyte

Configuration Features1 x 32 GB

Data Integrity CheckAdvanced ECC

Features8-channel memory architecture, Dual rank, HPE SmartMemory, Registered, Slots 17 – 32 are available in two-processor configuration only

Max Memory Supported4 TB

Memory Slots16

Memory Speed4400 megahertz

Memory TechnologyDDR5 SDRAM

RAM Installed32 GB

Rated Memory Speed4800 megahertz

Channel Quantity14

Drive TypeNo optical drive

Optical Drive TypeNo optical drive, None

Optical Drive Type (2nd)None

RAID LevelsRAID 0, RAID 1, RAID 10, RAID 5

Storage (2nd)None

Storage (3rd)None

Storage (4th)None

Storage Controller (2nd)None

Storage Controller NameIntel VROC SATA Software RAID

Storage Controller TypeSerial ATA

TypeNone

Hard Drive Interface TypeNo HDD

Data Link Protocols10 Gigabit Ethernet, Gigabit Ethernet

Ethernet ControllersBroadcom BCM57416

Ethernet Ports2 x 10 Gigabit Ethernet

FeaturesPXE support, Wake On LAN (WOL)

Host InterfacePCI Express 3.0 x8

Remote ManagementIPMI 2.0, SMASH CLP, SNMP 3

Remote Management ControllerIntegrated Lights-Out 6

Expansion Bays1 (total) / 1 (free) x external Universal Media Bay, 8 (total) / 8 (free) x hot-swap 2.5″ SFF

Slots2 (total) / 2 (free) x PCIe 5.0 x16 / Open Compute Project mezzanine (OCP) 3.0 (x16 mode)

Interface Provided1 x HPE iLO – RJ-45, 1 x HPE iLO – Type A (1 in front), 1 x USB 2.0, 1 x VGA, 2 x LAN (10Gigabit Ethernet), 4 x USB 3.2 Gen 1 (1 front, 2 rear, 1 internal)

Display TechnologyNone.

Video InterfacesVGA

Installed Size16 megabyte

Power Device TypePower supply – hot-plug

Power Provided800 watt

Power Supplies Installed1

Power Supplies Supported2

Redundant Power SupplyOptional

Redundant Power Supply Supported1+1 (with optional power supply)

Required VoltageAC 100-240 volt

80 PLUS Certification80 PLUS Platinum

Operating System EditionNo operating system

OS CertifiedCanonical Ubuntu 22.04, Microsoft Windows Server 2019, Microsoft Windows Server 2022, Red Hat Enterprise Linux 8.6, Red Hat Enterprise Linux 9.0, SUSE Linux Enterprise Server 15 SP4, VMware ESXi 7.0 update 3, VMware ESXi 8.0, VMware ESXi 8.0 update 1

Software TypeHPE Server UEFI

Built-in DevicesLED panel

Chipset TypeIntel C741

Embedded SecurityTrusted Platform Module (TPM 2.0) Security Chip

Form FactorRack-mountable

Form Factor (RAM)DIMM 288-pin

Storage Controller InterfaceSerial ATA-600

Max Operating Temperature95 degree Fahrenheit

Min Operating Temperature50 degree Fahrenheit

Operating Humidity8 – 90% RH (non-condensing)

Controllers Included1

CountryWorldwide
