Home » Products » Servers » HPE ProLiant DL360 Gen11 Smart Choice – Xeon Gold 6530 2.1 GHz – 128 GB – no HDD – 2 x 1000W- rack server

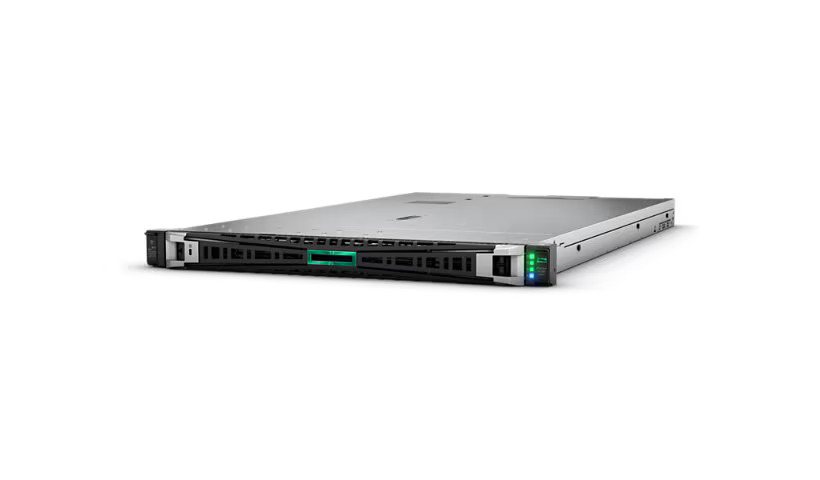

HPE ProLiant DL360 Gen11 Smart Choice – Xeon Gold 6530 2.1 GHz – 128 GB – no HDD – 2 x 1000W- rack server

(P72994-005)

Categories: Servers, HP ProLiant, Rackmount Servers, DL360 Gen11

Are you looking for a scalable, compute-dense solution for hybrid cloud or other data workloads in a virtualized and containerized environment? The HPE ProLiant DL360 Gen11 server is a rack-optimized, 1U 2P solution that delivers exceptional compute performance, upgraded high-speed data transfer rate, and memory depth at 2P compute capability. Powered by 4th and 5th Gen Intel Xeon Scalable Processors with up to 64 cores, 8TB of memory, and 20 EDSFF drives as well as increased memory bandwidth and high-speed PCIe Gen5 I/O, the HPE ProLiant DL360 Gen11 server is a perfect solution for Electronic Design Automation (EDA), CAD, and VDI. The HPE ProLiant 360 Gen11 server is engineered to optimize IT with a cloud operating experience, built-in security, and optimized performance for workloads to drive your business forward.

Quick tech specs

Server
2-way
RAM 128 GB
hot-swap 2.5″ bay(s)
NVMe
no OS
Smart Choice
rack-mountable 1U
1 x Xeon Gold 6530 / up to 4 GHz
NVMe
SSD 2 x 480 GB
Gigabit Ethernet
monitor: none

Product Specifications

BrandHPE

Product LineHPE ProLiant

ModelDL360 Gen11 Network Choice

ManufacturerHPE Smart Buy Express

Bus TypePCI Express 3.0 x4

Clock Speed2.1 GHZ

Cores32-core

Max Turbo Speed4 GHZ

Processor BrandIntel

Processor Main FeaturesHyper-Threading Technology, Intel Turbo Boost Technology 2

Processor Number6530

Processor TypeXeon Gold

Processors Installed1

Server Scalability2-way

Total Processor Supported2

UpgradabilityUpgradable

Available Memory Slots30

Cache MemoryL3 cache

Cache Memory Installed160 megabyte

Configuration Features2 x 64 GB

FeaturesHPE SmartMemory, Registered, Slots 17 – 32 are available in two-processor configuration only

Max Memory Supported8 TB

Memory Slots32

Memory Speed4800 megahertz

Memory TechnologyDDR5 SDRAM

RAM Installed128 GB

Rated Memory Speed5600 megahertz

Drive TypeNo optical drive

Hard Drive Capacity480 GB

Hard Drive FeaturesBoot drive, NVM Express (NVMe), RAID 1 – factory configured

Installed Quantity2

Interface ClassPCI Express

Optical Drive TypeNo optical drive, None

Optical Drive Type (2nd)None

RAID LevelsRAID 1

SSD Form FactorM.2

Storage (2nd)None

Storage (3rd)None

Storage (4th)None

Storage Controller (2nd)None

Storage Controller NameHPE NS204i-u

Storage Controller TypeRAID

TypeNone

Hard Drive Interface TypeSSD

Compliant StandardsOCP 3.0

Data Link ProtocolsEthernet, Fast Ethernet, Gigabit Ethernet

Ethernet ControllersBroadcom BCM5719

Ethernet Ports4 x Gigabit Ethernet

FeaturesPXE support, Wake On LAN (WOL)

Host InterfaceOpen Compute Project mezzanine (OCP) 3.0

Remote ManagementIPMI 2.0, SMASH CLP, SNMP 3

Remote Management ControllerIntegrated Lights-Out 6

Expansion Bays1 (total) / 1 (free) x external Universal Media Bay, 8 (total) / 8 (free) x hot-swap 2.5″ SFF

Slots2 (total) / 1 (free) x PCIe 5.0 x16 / Open Compute Project mezzanine (OCP) 3.0 (x16 mode)

Interface Provided1 x HPE iLO – RJ-45, 1 x HPE iLO – Type A (1 in front), 1 x USB 2.0, 1 x VGA, 4 x LAN (Gigabit Ethernet) – RJ-45, 4 x USB 3.2 Gen 1 (1 front, 2 rear, 1 internal)

Display TechnologyNone.

Video InterfacesVGA

Installed Size16 megabyte

Power Device TypePower supply – hot-plug

Power Provided1000 watt

Power Supplies Installed2

Power Supplies Supported2

Redundant Power SupplyYes

Redundant Power Supply Supported1+1

Required VoltageAC 100-240 volt

80 PLUS Certification80 PLUS Titanium

Operating System EditionNo operating system

OS CertifiedCanonical Ubuntu 20.04.5 LTS, Canonical Ubuntu 22.04 LTS, Microsoft Windows Server 2019, Microsoft Windows Server 2022, Oracle Linux 9, Red Hat Enterprise Linux 8.6, Red Hat Enterprise Linux 9.0, SUSE Linux Enterprise Micro 5.5, SUSE Linux Enterprise Server 15 SP5 QU1, VMware vSphere 7.0 (ESXi) Update 3, VMware vSphere 8.0 (ESXi) Update 1, VMware vSphere 8.0 (ESXi) Update 2

Software TypeHPE Server UEFI

Built-in DevicesLED panel

Chipset TypeIntel C741

Embedded SecurityTrusted Platform Module (TPM 2.0) Security Chip

Form FactorRack-mountable

Form Factor (RAM)DIMM 288-pin

Storage Controller InterfacePCI Express (NVMe)

Max Operating Temperature95 degree Fahrenheit

Min Operating Temperature50 degree Fahrenheit

Operating Humidity8 – 90% RH (non-condensing)

Controllers Included1

CountryCanada, United States

Printer Product TypeNone

Hot-Swap Bays8

Manufacturer Form FactorRack-mountable

Packaged Quantity1

Product TypeServer

Server Storage BaysHot-swap

Server Swappable Drive Form Factor2.5″

Server Swappable Drive Form Factor (metric)6.4 cm

Server Swappable Drive InterfaceNVMe

Included Accessories7 x high performance fans, High-performance heatsink, HPE Easy Install Rail 3 Kit

Height1.7 inch

Height (Rack Units)1

Weight32.1 lbs

Width17.1 inch

Depth29.6 inch

Color CategoryBlack, Silver

Compliant StandardsACPI 6.4, Active Directory v1.0, AES, ASHRAE Class A3, ASHRAE Class A4, FIPS 140-2, IPv6 Ready, PCI DSS, Redfish API, SMBIOS 3.4, TLS v1.2, WEEE 2002/95/EC

ENERGY STAR CertifiedYes

Energy Star Version4.0

TCO CertifiedNo

On-Site WarrantyOn-site

Service & Support DetailsLimited warranty – parts and labor – 3 years – on-site – response time: next business day

Limited Warranty3 Year
