Home   »   Products   »   Servers   »   HPE ProLiant DL360 Gen11 Smart Choice – Xeon Silver 4509Y 2.6 GHz – 64 GB – SSD 2 x 480 GB – 2 x 1000W – rack server

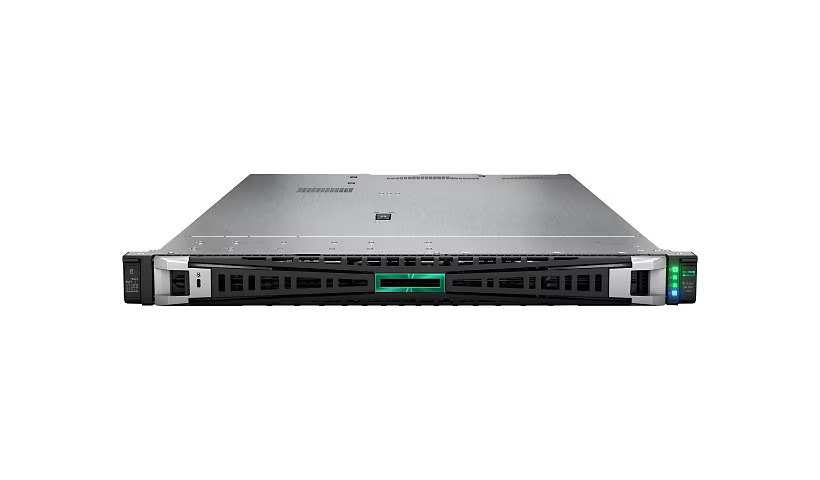

HPE ProLiant DL360 Gen11 Smart Choice – Xeon Silver 4509Y 2.6 GHz – 64 GB – SSD 2 x 480 GB – 2 x 1000W – rack server

(P71676-005)

Are you looking for a scalable, compute-dense solution for hybrid cloud or other data workloads in a virtualized and containerized environment? The HPE ProLiant DL360 Gen11 server is a rack-optimized, 1U 2P solution that delivers exceptional compute performance, upgraded high-speed data transfer rate, and memory depth at 2P compute capability.  Powered by 4th and 5th Gen Intel Xeon Scalable Processors with up to 64 cores, 8TB of memory, and 20 EDSFF drives as well as increased memory bandwidth and high-speed PCIe Gen5 I/O, the HPE ProLiant DL360 Gen11 server is a perfect solution for Electronic Design Automation (EDA), CAD, and VDI. The HPE ProLiant 360 Gen11 server is engineered to optimize IT with a cloud operating experience, built-in security, and optimized performance for workloads to drive your business forward.

Quick tech specs

  • Server
  • 2-way
  • RAM 64 GB
  • hot-swap 2.5″ bay(s)
  • Gigabit Ethernet
  • monitor: none
  • rack-mountable 1U
  • 1 x Xeon Silver 4509Y / up to 4.1 GHz
  • SATA
  • SSD 2 x 480 GB
  • no OS
  • Smart Choice

Product Specifications

System Features
BrandHPE
Product LineHPE ProLiant
ModelDL360 Gen11 Network Choice
ManufacturerHPE Smart Buy Express
Bus TypeOpen Compute Project mezzanine (OCP)
Clock Speed2.6 GHZ
Cores8-core
Max Turbo Speed4.1 GHZ
Processor BrandIntel
Processor Number4509Y
Processor TypeXeon Silver
Processors Installed1
Server Scalability2-way
Total Processor Supported2
UpgradabilityUpgradable
Available Memory Slots30
Cache Memory Installed22.5 megabyte
Configuration Features2 x 32 GB
Data Integrity CheckAdvanced ECC
FeaturesHPE SmartMemory, Registered
Max Memory Supported8 TB
Memory Slots32
Memory Speed4400 megahertz
Memory TechnologyDDR5 SDRAM
RAM Installed64 GB
Rated Memory Speed5600 megahertz
Buffer Size4 GB
Channel Quantity8
Drive TypeNo optical drive
Hard Drive Capacity480 GB
Installed Quantity2
Interface ClassSerial ATA
Optical Drive TypeNo optical drive, None
Optical Drive Type (2nd)None
SSD Form Factor2.5″
Storage (2nd)None
Storage (3rd)None
Storage (4th)None
Storage Controller (2nd)None
Storage Controller NameHPE MR408i-o Gen11 SPDM
Storage Controller TypeRAID
TypeNone
Hard Drive Interface TypeSSD
Data Link ProtocolsEthernet, Fast Ethernet, Gigabit Ethernet
Ethernet ControllersBroadcom BCM5719
Ethernet Ports4 x Gigabit Ethernet
FeaturesPXE support, Wake On LAN (WOL)
Host InterfaceOpen Compute Project mezzanine (OCP) 3.0
Remote ManagementIPMI 2.0, SMASH CLP, SNMP 3
Remote Management ControllerIntegrated Lights-Out 6
Expansion Bays1 (total) / 1 (free) x external Universal Media Bay, 8 (total) / 6 (free) x hot-swap 2.5″
Slots2 (total) / 1 (free) x PCIe 5.0 x16 / Open Compute Project mezzanine (OCP) 3.0 (x16 mode)
Interface Provided1 x HPE iLO – RJ-45, 1 x HPE iLO – Type A (1 in front), 1 x USB 2.0, 1 x VGA, 4 x LAN (Gigabit Ethernet), 4 x USB 3.2 Gen 1 (1 front, 2 rear, 1 internal)
Display TechnologyNone.
Video InterfacesVGA
Installed Size16 megabyte
Power Device TypePower supply – hot-plug
Power Provided1000 watt
Power Supplies Installed2
Power Supplies Supported2
Redundant Power SupplyOptional
Redundant Power Supply Supported1+1 (with optional power supply)
Required VoltageAC 100-240 volt
80 PLUS Certification80 PLUS Titanium
Operating System EditionNo operating system
Software TypeHPE Server UEFI
Built-in DevicesLED panel
Chipset TypeIntel C741
Embedded SecurityTrusted Platform Module (TPM) Security Chip
Form FactorRack-mountable
Form Factor (RAM)DIMM 288-pin
Storage Controller InterfaceSerial ATA-600 / SAS 3.0 / PCI Express (NVMe)
Max Operating Temperature95 degree Fahrenheit
Min Operating Temperature50 degree Fahrenheit
Operating Humidity8 – 90% RH (non-condensing)
Controllers Included1
CountryCanada, United States
Printer Product TypeNone
Hot-Swap Bays8
Manufacturer Form FactorRack-mountable
Packaged Quantity1
Product TypeServer
Server Storage BaysHot-swap
Server Swappable Drive Form Factor2.5″
Server Swappable Drive Form Factor (metric)6.4 cm
Server Swappable Drive InterfaceSATA
Included Accessories5 x standard fans
Height1.7 inch
Height (Rack Units)1
Weight32.1 lbs
Width17.1 inch
Depth29.6 inch
Color CategoryBlack, Silver
Compliant StandardsACPI 6.4, AES, ASHRAE Class A3, ASHRAE Class A4, ErP Lot 9, FIPS 140-2, IPv6 Ready, PCI DSS, TLS v1.2, WEEE 2002/95/EC
ENERGY STAR CertifiedYes
Energy Star Version3.0
TCO CertifiedNo
On-Site WarrantyOn-site
Service & Support DetailsLimited warranty – parts and labor – 3 years – on-site – response time: next business day
Limited Warranty3 Year
