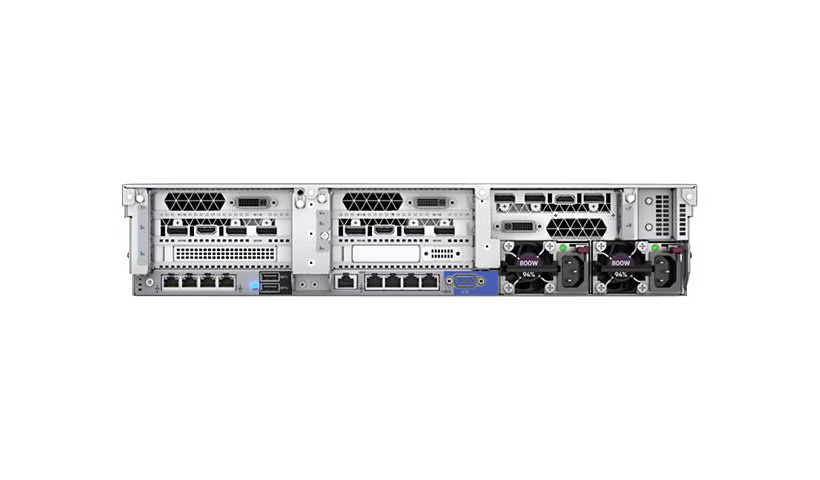

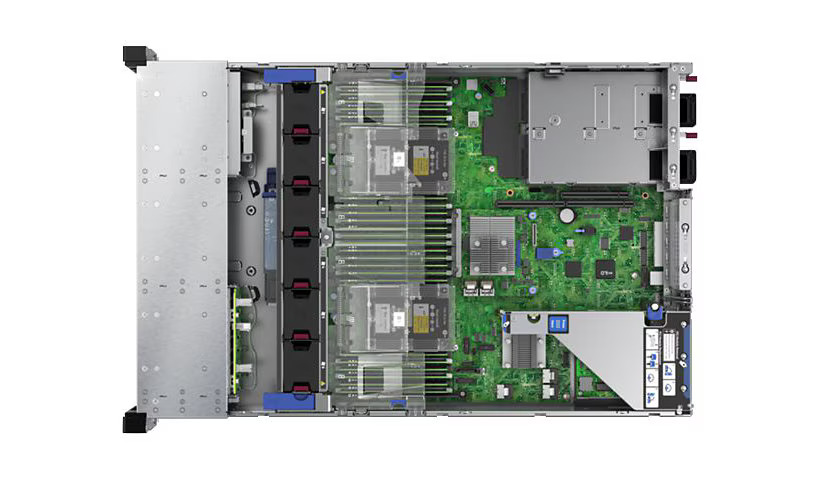

HPE ProLiant DL380 Gen10 Performance – rack-mountable Xeon Silver 4110 2.1 GHz – 16 GB – no HDD

(P06420-B21)

Categories: Servers, HP ProLiant, Rackmount Servers, DL380 Gen10

Where is your server bottlenecked…storage, compute, expansion? The HPE ProLiant DL380 Gen10 server delivers the latest in security, performance and expandability, backed by a comprehensive warranty. Standardize on the industry’s most trusted compute platform. The HPE ProLiant DL380 Gen10 server is securely designed to reduce costs and complexity, featuring the First and Second Generation Intel Xeon Processor Scalable Family with up to a 60% performance gain and 27% increase in cores , plus the HPE 2933 MT/s DDR4 SmartMemory supporting 3.0 TB. It supports 12 Gb/s SAS, and up to 20 NVMe drive plus a broad range of compute options. Intel Optane persistent memory 100 series for HPE offers unprecedented levels of performance for databases and analytic workloads. Run everything from the most basic to mission-critical applications and deploy with confidence.

Quick tech specs

Server
2-way
RAM 16 GB
hot-swap 2.5″ bay(s)
Gigabit Ethernet
HPE Smart Buy
rack-mountable 2U
1 x Xeon Silver 4110 / up to 3 GHz
SAS
no HDD
monitor: none

Product Specifications

BrandHPE

Product LineHPE ProLiant

ModelDL380 Gen10 Performance

ManufacturerHewlett-Packard

Bus TypePCI Express 3.0 x8

Clock Speed2.1 GHZ

Cores8-core

Max Turbo Speed3 GHZ

Processor BrandIntel

Processor Main FeaturesHyper-Threading Technology, Intel Turbo Boost Technology 2

Processor Number4110

Processor SocketFCLGA3647 Socket

Processor TypeXeon Silver

Processors Installed1

Server Scalability2-way

Total Processor Supported2

UpgradabilityUpgradable

Available Memory Slots23

Cache MemoryL3 cache

Cache Memory Installed11 megabyte

Configuration Features1 x 16 GB

Data Integrity CheckAdvanced ECC

FeaturesDual rank, HPE SmartMemory, Registered, Slots 13 – 24 are available in two-processor configuration only

Max Memory Supported1.5 TB

Memory Slots24

Memory Specification CompliancePC4-21333

Memory Speed2400 megahertz

Memory Supported1.5 TB registered – ECC, 192 GB Non-Volatile – ECC, 3 TB Load-Reduced – ECC

Memory TechnologyDDR4 SDRAM

RAM Installed16 GB

Rated Memory Speed2666 megahertz

Buffer Size2 GB

Channel Quantity8

Drive TypeNo optical drive

Optical Drive TypeNo optical drive, None

Optical Drive Type (2nd)None

RAID LevelsRAID 0, RAID 1, RAID 1 ADM, RAID 10, RAID 10 ADM, RAID 5, RAID 50, RAID 6, RAID 60

Storage (2nd)None

Storage (3rd)None

Storage (4th)None

Storage Controller (2nd)Serial ATA

Storage Controller NameHPE Smart Array P408i-a, HPE Smart Array S100i SR Software

Storage Controller TypeRAID

TypeNone

Hard Drive Interface TypeNo HDD

Data Link ProtocolsEthernet, Fast Ethernet, Gigabit Ethernet

Ethernet ControllersHP 331i

Ethernet Ports4 x Gigabit Ethernet

FeaturesPXE support, Wake On LAN (WOL)

Remote ManagementIPMI 2.0, SMASH CLP, SNMP 3

Remote Management ControllerIntegrated Lights-Out 5

Expansion Bays1 external, 8 (total) / 8 (free) x hot-swap 2.5″ SFF

Slots1 (total) / 1 (free) x FlexibleLOM, 1 (total) / 1 (free) x microSD Card (internal), 1 (total) / 1 (free) x PCIe 3.0 x16 – half-length, full-height, 2 (total) / 2 (free) x PCIe 3.0 x8 – half-length, full-height

Interface Provided1 x HPE iLO – RJ-45 (1 rear), 1 x HPE iLO – Type A (1 in front), 1 x VGA (1 rear), 4 x LAN (Gigabit Ethernet) – RJ-45 (4 rear), 5 x USB 3.0 (1 front, 2 rear, 2 internal)

Display TechnologyNone.

Video InterfacesVGA

Installed Size16 megabyte

Frequency50/60 hertz

Power Device TypePower supply – hot-plug

Power Provided500 watt

Power Supplies Installed1

Power Supplies Supported2

Redundant Power SupplyOptional

Redundant Power Supply Supported1+1 (with optional power supply)

Built-in DevicesBattery

Chipset TypeIntel C621

Form FactorRack-mountable

Form Factor (RAM)DIMM 288-pin

Storage Controller InterfaceSerial ATA-600 / SAS 3.0

Max Operating Temperature95 degree Fahrenheit

Min Operating Temperature50 degree Fahrenheit

Operating Humidity8 – 90% (non-condensing)

Sound Emission31 dBA

Channel Quantity14

Controller Interface TypeSerial ATA-600

Controllers Included1

CountryWorldwide

Printer Product TypeNone

Front Accessible Bays1

Hot-Swap Bays8

Manufacturer Form FactorRack-mountable

Packaged Quantity1

Product TypeServer

Server Storage BaysHot-swap

Server Swappable Drive Form Factor2.5″

Server Swappable Drive Form Factor (metric)6.4 cm

Server Swappable Drive InterfaceSAS

Storage Controller (2nd)1

Included Accessories4 standard fans, CPU standard heatsink, HPE Easy Install Rails

Height3.4 inch

Height (Rack Units)2

Weight32.54 lbs

Width17.5 inch

Depth28.8 inch

Color CategoryBlack

Compliant StandardsACPI 6.1, AES, ASHRAE Class A3, ASHRAE Class A4, FIPS 140-2, IPv6 Ready, TLS v1.2, WEEE 2002/95/EC

ENERGY STAR CertifiedYes

Energy Star Version2.1

TCO CertifiedNo

On-Site WarrantyOn-site

Service & Support DetailsLimited warranty – parts and labor – 3 years – on-site – response time: next business day, Technical support – software application support – 90 days

Limited Warranty3 Year
