Home » Products » Servers » HPE ProLiant DL380 Gen10 Plus Network Choice – rack-mountable Xeon Gold 5315Y 3.2 GHz – 32 GB – no HDD

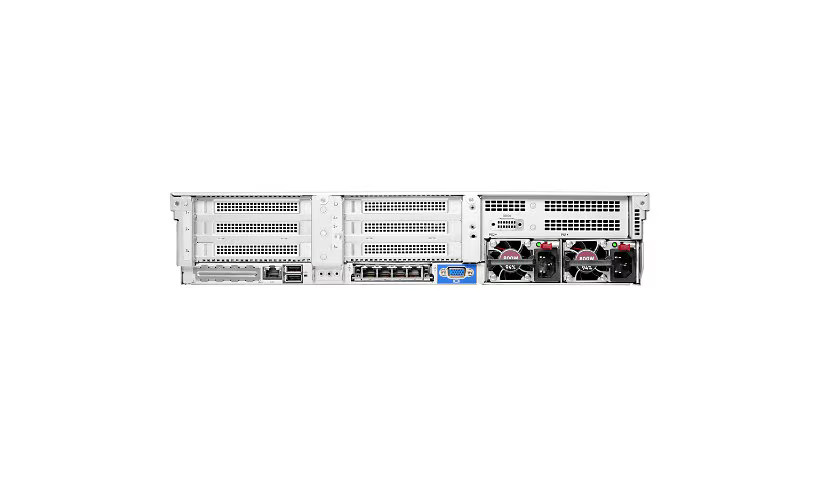

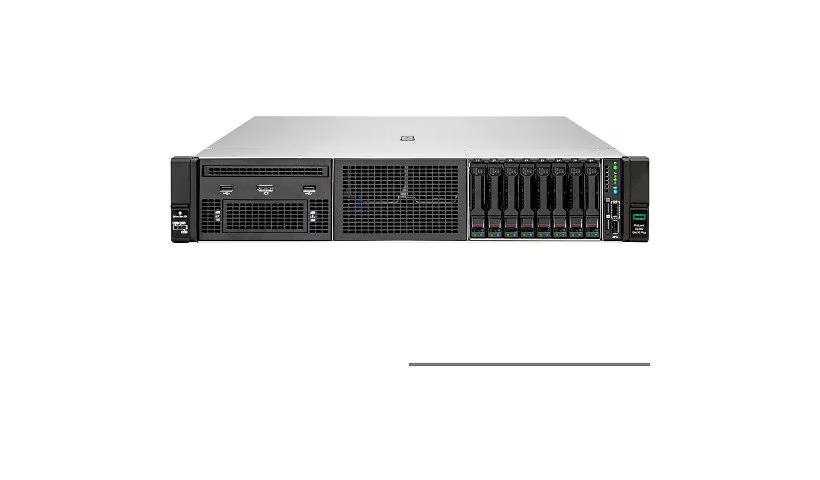

HPE ProLiant DL380 Gen10 Plus Network Choice – rack-mountable Xeon Gold 5315Y 3.2 GHz – 32 GB – no HDD

(P55248-B21)

Categories: Servers, HP ProLiant, Rackmount Servers, DL380 Gen10

Do your servers need increased performance in storage, compute, or expansion? The HPE ProLiant DL380 Gen10 Plus server is adaptable for diverse workloads and environments, providing you with the right balance of expandability and scalability. Designed for supreme versatility and resiliency, this 2U/2P platform is capable for deployment in multiple environments, built on 3rd Generation Intel Xeon Scalable Processors, and backed by a comprehensive warranty. Equipped with PCIe Gen4 capabilities, the HPE ProLiant DL380 Gen10 Plus server offers improved data transfer rates and higher networking speeds.

Quick tech specs

Server
2-way
RAM 32 GB
hot-swap 2.5″ bay(s)
10 Gigabit Ethernet
monitor: none
rack-mountable 2U
1 x Xeon Gold 5315Y up to
SATA/SAS/NVMe
no HDD
no OS

Product Specifications

BrandHPE

Product LineHPE ProLiant

ModelDL380 Gen10 Plus Network Choice

ManufacturerHewlett-Packard

Clock Speed3.2 GHZ

Cores8-core

Processor BrandIntel

Processor Number5315Y

Processor TypeXeon Gold

Processors Installed1

Server Scalability2-way

Total Processor Supported2

UpgradabilityUpgradable

Available Memory Slots31

Cache Memory Installed12 megabyte

Configuration Features1 x 32 GB

Features8-channel memory architecture, HPE SmartMemory, Registered, Slots 17 – 32 are available in two-processor configuration only

Max Memory Supported2 TB

Memory Slots32

Memory Speed2933 megahertz

Memory Supported2 TB registered, 8 TB – HPE Persistent Memory – Optane DC Persistent, 8 TB Load-Reduced

Memory TechnologyDDR4 SDRAM

RAM Installed32 GB

Rated Memory Speed3200 megahertz

Buffer Size4 GB

Drive TypeNo optical drive

Optical Drive TypeNo optical drive, None

Optical Drive Type (2nd)None

Storage (2nd)None

Storage (3rd)None

Storage (4th)None

Storage Controller (2nd)None

TypeNone

Hard Drive Interface TypeNo HDD

Data Link Protocols10 Gigabit Ethernet

Ethernet ControllersBroadcom BCM57412

Ethernet Ports2 x 10 Gigabit Ethernet

Host InterfaceOpen Compute Project mezzanine (OCP) 3.0

Remote Management ControllerIntegrated Lights-Out 5

Expansion Bays8 (total) / 8 (free) x hot-swap 2.5″ SFF

Slots1 (total) / 1 (free) x PCIe 4.0 x16 – full-length, full-height, 1 (total) / 1 (free) x PCIe 4.0 x16 – full-length, full-height (x8 mode), 1 (total) / 1 (free) x PCIe 4.0 x16 – half-length, full-height (x8 mode)

Interface Provided1 x HPE iLO – RJ-45, 1 x HPE iLO (service port), 1 x VGA, 2 x LAN (10Gigabit Ethernet) – SFP+, 3 x USB 3.0 (1 front, 2 rear)

Display TechnologyNone.

Video InterfacesVGA

Installed Size16 megabyte

Frequency50/60 hertz

Power Device TypePower supply – hot-plug

Power Provided800 watt

Power Supplies Installed1

Power Supplies Supported2

Redundant Power SupplyOptional

Redundant Power Supply Supported1+1 (with optional power supply)

Required VoltageAC 120/230 volt

80 PLUS Certification80 PLUS Titanium

Chipset TypeIntel C621A

Form FactorRack-mountable

Form Factor (RAM)DIMM 288-pin

Max Operating Temperature95 degree Fahrenheit

Min Operating Temperature50 degree Fahrenheit

Operating Humidity8 – 90% (non-condensing)

Controllers Included1

CountryWorldwide

Printer Product TypeNone

Hot-Swap Bays8

Manufacturer Form FactorRack-mountable

Packaged Quantity1

Product TypeServer

Server Storage BaysHot-swap

Server Swappable Drive Form Factor2.5″

Server Swappable Drive Form Factor (metric)6.4 cm

Server Swappable Drive InterfaceSATA/SAS/NVMe

Included Accessories6 maximum performance fans, CPU standard heatsink, HPE Easy Install Rails with CMA

Height3.4 inch

Height (Rack Units)2

Width17.5 inch

Depth28 inch

Color CategoryBlack, Silver

Compliant StandardsACPI 6.3, AES, ASHRAE Class A3, ASHRAE Class A4, FIPS 140-2, Redfish API, SMBIOS 3.2, TLS v1.2, Triple DES, UEFI, WEEE

ENERGY STAR CertifiedNo

TCO CertifiedNo

On-Site WarrantyOn-site

Service & Support DetailsLimited warranty – parts and labor – 3 years – on-site – response time: next business day

Limited Warranty3 Year
