Home » Products » Servers » HPE ProLiant DL380 Gen10 SMB Networking Choice – rack-mountable Xeon Silver 4210R 2.4 GHz – 32 GB – no HDD

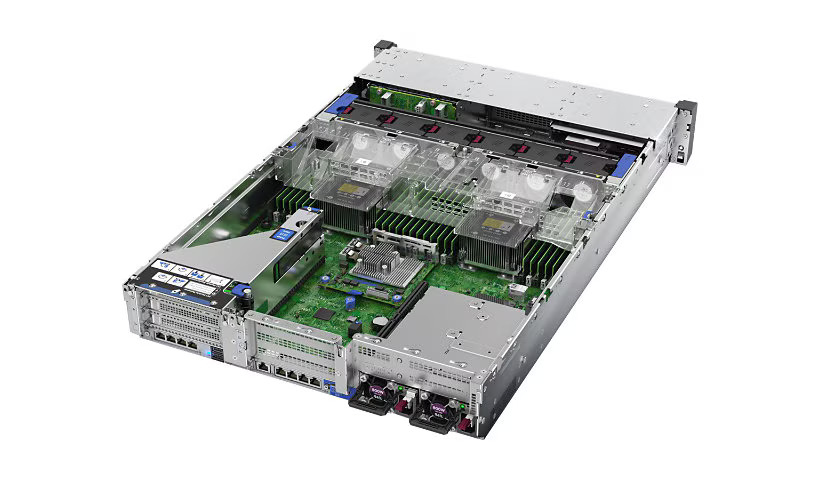

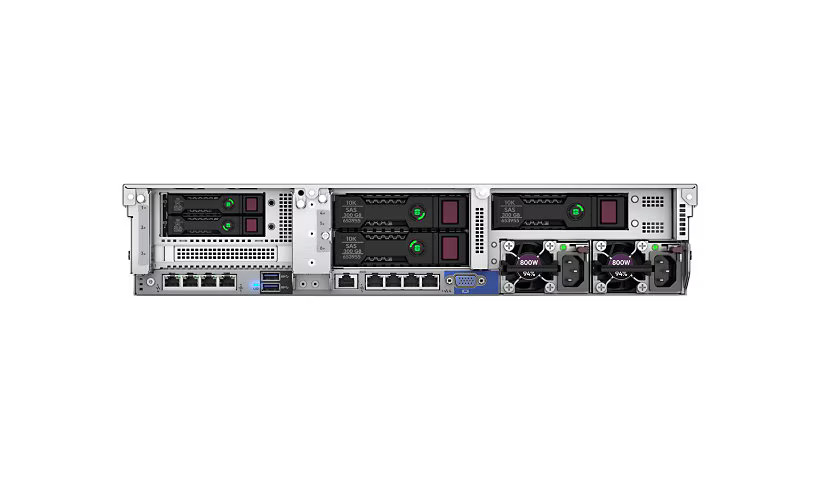

HPE ProLiant DL380 Gen10 SMB Networking Choice – rack-mountable Xeon Silver 4210R 2.4 GHz – 32 GB – no HDD

(P24840-B21)

Categories: Servers, DL380 Gen10, HP ProLiant, Rackmount Servers

Where is your server bottlenecked…storage, compute, expansion? The HPE ProLiant DL380 Gen10 server delivers the latest in security, performance and expandability, backed by a comprehensive warranty. Standardize on the industry’s most trusted compute platform. The HPE ProLiant DL380 Gen10 server is securely designed to reduce costs and complexity, featuring the First and Second Generation Intel Xeon Processor Scalable Family with up to a 60% performance gain and 27% increase in cores , plus the HPE 2933 MT/s DDR4 SmartMemory supporting 3.0 TB. It supports 12 Gb/s SAS, and up to 20 NVMe drive plus a broad range of compute options. Intel Optane persistent memory 100 series for HPE offers unprecedented levels of performance for databases and analytic workloads. Run everything from the most basic to mission-critical applications and deploy with confidence.

Quick tech specs

Server
2-way
RAM 32 GB
hot-swap 2.5″ bay(s)
Gigabit Ethernet
rack-mountable 2U
1 x Xeon Silver 4210R / up to 3.2 GHz
SATA/SAS
no HDD
monitor: none

Product Specifications

BrandHPE

Product LineHPE ProLiant

ModelDL380 Gen10 SMB Networking Choice

ManufacturerHewlett-Packard

Bus TypePCI Express 3.0 x8

Clock Speed2.4 GHZ

Cores10-core

Max Turbo Speed3.2 GHZ

Processor BrandIntel

Processor Main FeaturesHyper-Threading Technology, Intel Turbo Boost Technology 2

Processor Number4210R

Processor SocketFCLGA3647 Socket

Processor TypeXeon Silver

Processors Installed1

Server Scalability2-way

Total Processor Supported2

UpgradabilityUpgradable

Available Memory Slots23

Cache MemoryL3 cache

Cache Memory Installed13.75 megabyte

Configuration Features1 x 32 GB

Data Integrity CheckAdvanced ECC

FeaturesDual rank, HPE SmartMemory, Registered, Slots 13 – 24 are available in two-processor configuration only

Max Memory Supported1.5 TB

Memory Slots24

Memory Speed2400 megahertz

Memory Supported1.5 TB registered – ECC, 192 GB Non-Volatile – ECC, 3 TB Load-Reduced – ECC, 6 TB – HPE Persistent Memory – Optane DC Persistent

Memory TechnologyDDR4 SDRAM

RAM Installed32 GB

Rated Memory Speed2933 megahertz

Buffer Size2 GB

Channel Quantity8

Drive TypeNo optical drive

Optical Drive TypeNo optical drive, None

Optical Drive Type (2nd)None

RAID LevelsRAID 0, RAID 1, RAID 1 ADM, RAID 10, RAID 10 ADM, RAID 5, RAID 50, RAID 6, RAID 60

Storage (2nd)None

Storage (3rd)None

Storage (4th)None

Storage Controller (2nd)None

Storage Controller NameHPE Smart Array P408i-a

Storage Controller TypeRAID

TypeNone

Hard Drive Interface TypeNo HDD

Data Link ProtocolsEthernet, Fast Ethernet, Gigabit Ethernet

Ethernet Ports4 x Gigabit Ethernet

FeaturesACPI support, PXE support, Wake On LAN (WOL)

Remote ManagementIPMI 2.0, SMASH CLP, SNMP 3

Remote Management ControllerIntegrated Lights-Out 5

Expansion Bays24 (total) / 24 (free) x hot-swap 2.5″ SFF

Slots1 (total) / 1 (free) x PCIe 3.0 x16 – full-length, full-height, 1 (total) / 1 (free) x PCIe 3.0 x8 – full-length, full-height, 1 (total) / 1 (free) x PCIe 3.0 x8 – half-length, full-height

Interface Provided1 x HPE iLO – RJ-45, 1 x HPE iLO – Type A (1 in front), 1 x VGA, 4 x LAN (Gigabit Ethernet) – RJ-45, 5 x USB 3.0 (1 front, 2 rear, 2 internal)

Display TechnologyNone.

Video InterfacesVGA

Installed Size16 megabyte

Frequency50/60 hertz

Power Device TypePower supply – hot-plug

Power Provided800 watt

Power Supplies Installed1

Power Supplies Supported2

Redundant Power Supply Supported1+1 (with optional power supply)

80 PLUS Certification80 PLUS Platinum

OS CertifiedCentOS, ClearOS, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Red Hat Enterprise Linux 6.9, Red Hat Enterprise Linux 7.3, SuSE Linux Enterprise Server 11 SP4, SuSE Linux Enterprise Server 12 SP2, VMware vSphere 6.0 (ESXi), VMware vSphere 6.5

Chipset TypeIntel C621

Form FactorRack-mountable

Form Factor (RAM)DIMM 288-pin

Storage Controller InterfaceSerial ATA-600 / SAS 3.0

Max Operating Temperature95 degree Fahrenheit

Min Operating Temperature50 degree Fahrenheit

Operating Humidity8 – 90% (non-condensing)

Controllers Included1

CountryWorldwide (excluding China, Japan)

Printer Product TypeNone

Hot-Swap Bays24

Manufacturer Form FactorRack-mountable
