Home » Products » Servers » HPE ProLiant DL380 Gen11 Xeon Gold 6426Y 2.5GHz 16-Core 8SFF 800W Server

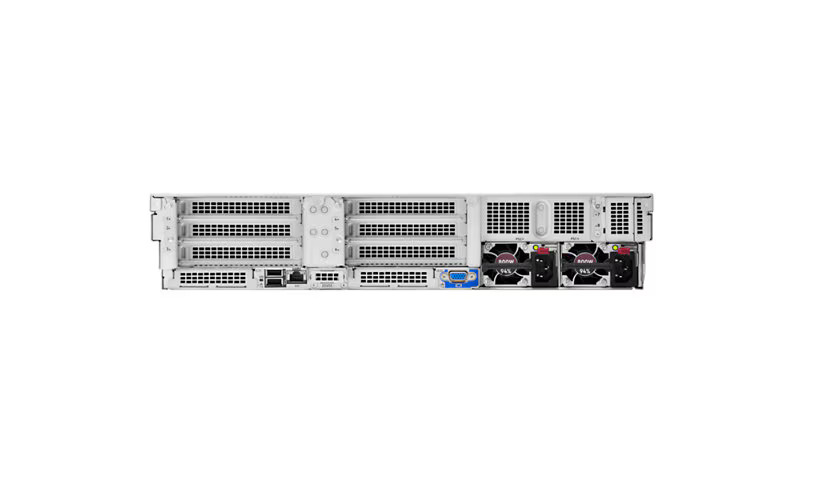

HPE ProLiant DL380 Gen11 Xeon Gold 6426Y 2.5GHz 16-Core 8SFF 800W Server

(P60637-B21)

Categories: Servers, DL380 Gen11, HP ProLiant, Rackmount Servers

Are you looking for a dual-socket scalable server solution to power data analytics or hybrid cloud workloads? The HPE ProLiant DL380 Gen11 server is a scalable 2U 2P solution that delivers exceptional compute performance, memory density with scalability and high-speed data transfer rate to run your most demanding applications. Powered by 4th and 5th Gen Intel Xeon Scalable Processors with up to 64 cores, 8 TB of memory, and 20 EDSFF drive as well as increased memory bandwidth and high-speed PCIe Gen5 I/O, the HPE ProLiant DL380 Gen11 server is a perfect solution for software-defined storage, video transcoding, and virtualized apps. The HPE ProLiant DL380 Gen11 server is engineered to optimize IT with a cloud operating experience, built-in security, and optimized performance for workloads to drive your business forward.

Quick tech specs

Intuitive Cloud Operating Experience
Optimized Performance
Frequency: 2.5GHz
Power: 800W
Trusted Security by Design
Processor: Intel Xeon Gold 6426Y
Number of Cores: 16
Form Factor: 8SFF

Product Specifications

BrandHPE

Product LineHPE ProLiant

ModelDL380 Gen11 Network Choice

ManufacturerHewlett-Packard

Bus TypeOpen Compute Project mezzanine (OCP)

Clock Speed2.5 GHZ

Cores16-core

Max Turbo Speed4.1 GHZ

Processor BrandIntel

Processor Main FeaturesHyper-Threading Technology, Intel Turbo Boost Technology 2

Processor Number6426Y

Processor TypeXeon Gold

Processors Installed1

Server Scalability2-way

Total Processor Supported2

UpgradabilityUpgradable

Available Memory Slots31

Cache MemoryL3 cache

Cache Memory Installed37.5 megabyte

Configuration Features1 x 32 GB

FeaturesDual rank, HPE SmartMemory, Registered, Slots 17 – 32 are available in two-processor configuration only

Max Memory Supported8 TB

Memory Slots32

Memory Speed4400 megahertz

Memory TechnologyDDR5 SDRAM

RAM Installed32 GB

Rated Memory Speed4800 megahertz

Buffer Size4 GB

Channel Quantity8

Drive TypeNo optical drive

Optical Drive TypeNo optical drive, None

Optical Drive Type (2nd)None

RAID LevelsRAID 0, RAID 1, RAID 10, RAID 5, RAID 50, RAID 6, RAID 60

Storage (2nd)None

Storage (3rd)None

Storage (4th)None

Storage Controller (2nd)None

Storage Controller NameHPE MR408i-o Gen11 SPDM

Storage Controller TypeRAID

TypeNone

Hard Drive Interface TypeNo HDD

Compliant StandardsOCP 3.0

Data Link Protocols10 Gigabit Ethernet, Gigabit Ethernet

Ethernet ControllersBroadcom BCM57416

Ethernet Ports2 x 10 Gigabit Ethernet

FeaturesPXE support, Wake On LAN (WOL)

Remote ManagementIPMI 2.0, SMASH CLP, SNMP 3

Remote Management ControllerIntegrated Lights-Out 6

Expansion Bays1 (total) / 1 (free) x external Universal Media Bay, 8 (total) / 8 (free) x hot-swap 2.5″ SFF

Slots1 (total) / 1 (free) x PCIe 5.0 x16 – full-length, full-height, 1 (total) / 1 (free) x PCIe 5.0 x16 – full-length, full-height (x8 mode), 1 (total) / 1 (free) x PCIe 5.0 x16 – half-length, full-height (x8 mode), 2 (total) / 2 (free) x FlexibleLOM

Interface Provided1 x HPE iLO – RJ-45 (1 rear), 1 x USB 3.0 (1 in front) (HPE iLO Service Port), 1 x VGA (1 rear), 2 x LAN (10Gigabit Ethernet), 4 x USB 3.0 (2 rear, 2 internal)

Display TechnologyNone.

Video InterfacesVGA

Installed Size16 megabyte

Power Device TypePower supply – hot-plug

Power Provided800 watt

Power Supplies Installed1

Power Supplies Supported2

Redundant Power SupplyOptional

Redundant Power Supply Supported1+1 (with optional power supply)

Required VoltageAC 100-240 volt

80 PLUS Certification80 PLUS Platinum

Operating System EditionNo operating system

OS CertifiedCanonical Ubuntu, Citrix, Microsoft Windows Server, Oracle Linux, Red Hat Enterprise Linux, VMware ESXi

Software TypeHPE Server UEFI

Built-in DevicesLED panel

Chipset TypeIntel C741

Form FactorRack-mountable

Form Factor (RAM)DIMM 288-pin

Storage Controller InterfaceSerial ATA-600 / SAS 3.0 / PCI Express (NVMe)

Max Operating Temperature95 degree Fahrenheit

Min Operating Temperature50 degree Fahrenheit

Operating Humidity8 – 90% RH (non-condensing)

Controllers Included1

CountryWorldwide

Printer Product TypeNone

Hot-Swap Bays8

Manufacturer Form FactorRack-mountable

Packaged Quantity1

Product TypeServer

Server Storage BaysHot-swap

Server Swappable Drive Form Factor2.5″

Server Swappable Drive Form Factor (metric)6.4 cm

Server Swappable Drive InterfaceSATA/SAS/NVMe

Included Accessories4 standard fans, Cable management arm, High-performance heatsink, SFF Easy Install Rail Kit

Height3.4 inch

Height (Rack Units)2

Weight35.27 lbs

Width17.6 inch

Depth28.6 inch

Color CategoryBlack, Silver

Compliant StandardsACPI 6.3, AES, ASHRAE Class A3, ASHRAE Class A4, ErP Lot 9, FIPS 140-2, TLS v1.2, WEEE 2002/95/EC

ENERGY STAR CertifiedYes

Energy Star Version3.0

TCO CertifiedNo

On-Site WarrantyOn-site

Service & Support DetailsLimited warranty – parts and labor – 3 years – on-site – response time: next business day

Limited Warranty3 Year
