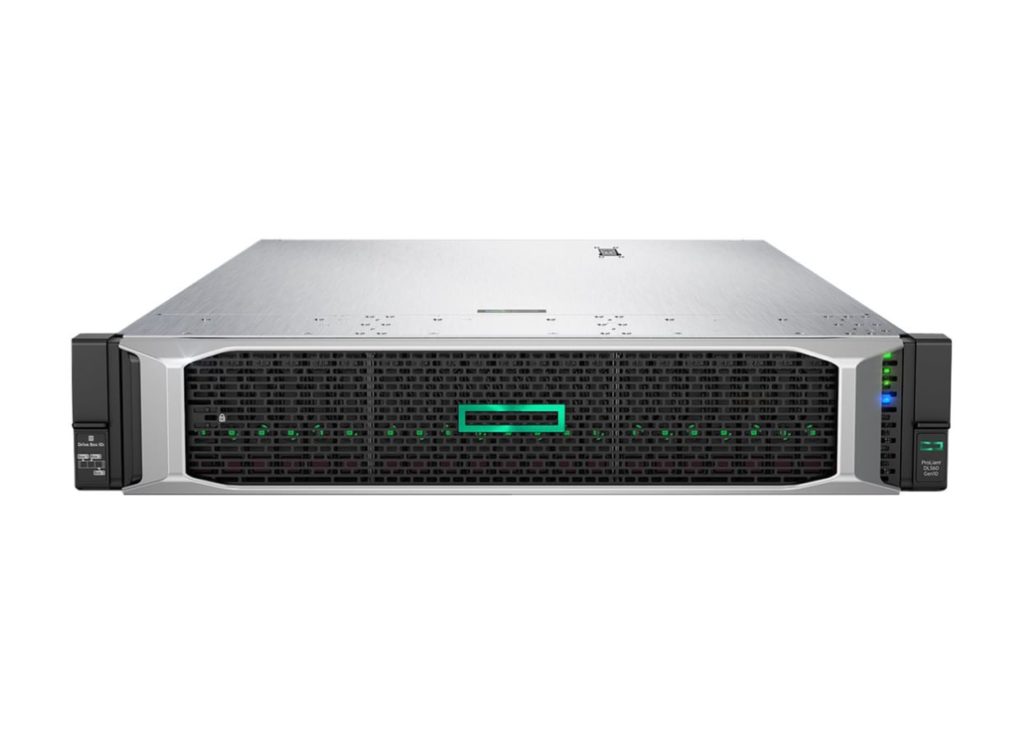

HPE ProLiant DL560 Gen10 Performance – rack-mountable – Xeon Platinum 8268

Cache Memory
Type :L3 cache
Per Processor Size :35.75 megabyte, 35.75 megabyte
Installed Size :143 megabyte

RAM
Form Factor :DIMM 288-pin
Technology :DDR4 SDRAM
Installed Size :512 GB
Max Supported Size :1.5 TB
Configuration Features :16 x 32 GB
Slots Qty :48
Empty Slots :32
Memory Speed :2933 megahertz
Rated Memory Speed :2933 megahertz
Features :6-channel memory architecture, HP SmartMemory, Registered, Slots 25 – 48 are available in four-processor configuration only

Type :RAID
Interface Type :Serial ATA-600 / SAS 3.0
Storage Controller Name :HPE Smart Array P816i-a SR Software
Channel Qty :16
Installed Qty :1
Buffer Size :4 GB, 4 GB
RAID Level :RAID 0, RAID 1, RAID 1 ADM, RAID 10, RAID 10 ADM, RAID 5, RAID 50, RAID 6, RAID 60

Networking
Ethernet Controller(s) :HPE 640FLR
Data Link Protocol :10 Gigabit Ethernet, Ethernet, Fast Ethernet, Gigabit Ethernet
Ethernet Ports :2 x 10 Gigabit Ethernet
Features :PXE support, Wake on LAN (WoL)
Compliant Standards :IEEE 802.3, IEEE 802.3ab, IEEE 802.3u

Expansion Bays
Bays :1 (total) / 1 (free) x external, 16 (total) / 16 (free) x hot-swap 2.5″ SFF

Expansion Slots
Slots :1 (total) / 1 (free) x microSD Card (internal), 1 (total) / 1 (free) x PCIe 3.0 x16 – three-quarter-length, full-height, 2 (total) / 2 (free) x M.2 Card, 2 (total) / 2 (free) x PCIe 3.0 x8 – three-quarter-length, full-height

Interface Provided
Interfaces :1 x HPE iLO – RJ-45, 1 x HPE iLO (1 in front), 1 x serial, 1 x VGA, 2 x LAN (25Gigabit Ethernet) (SFP28), 2 x USB 2.0, 5 x USB 3.0 (1 front, 2 rear, 2 internal)

Power Device
Type :Power supply – hot-plug, Power supply – hot-plug / redundant
Power Redundancy :Yes
Installed Qty :2
Max Supported Qty :2
Power Provided :1600 watt
Nominal Voltage :AC 120/230 V
Frequency Required :50/60 hertz

Service & Support Details
Service & Support :Limited warranty – parts and labor – 3 years – on-site – response time: next business day
