Home » Products » Servers » HPE ProLiant MicroServer Gen10 Plus v2 Smart Choice – Xeon E-2314 2.8 GHz – 16 GB – no HDD – microserver

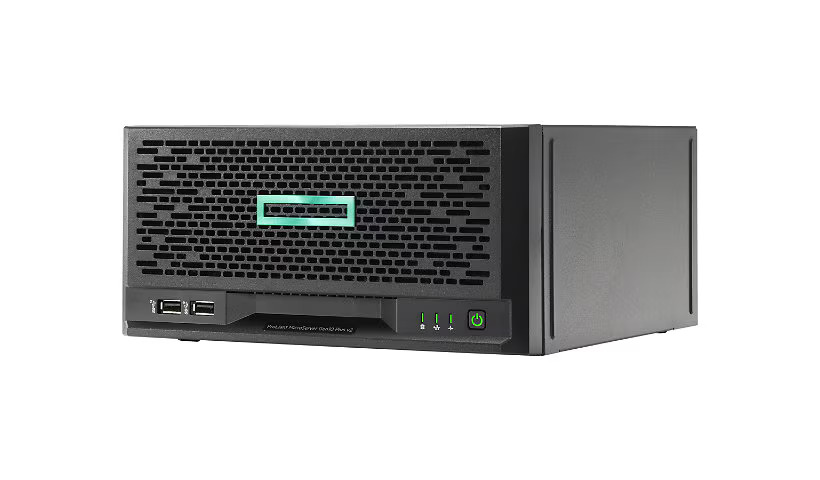

HPE ProLiant MicroServer Gen10 Plus v2 Smart Choice – Xeon E-2314 2.8 GHz – 16 GB – no HDD – microserver

(P69101-005)

Categories: Servers, HP ProLiant, Micro Server

Are you a small office, home office, or small business with branch offices looking to build a customized solution for your office? The HPE ProLiant MicroServer Gen10 Plus v2 server delivers an affordable compact yet powerful entry-level server that you can customize for on-premises or for hybrid cloud possibilities. It has the same compact form factor as the previous version and can be placed flat or vertically depending on your space. Intel Xeon E Processor and Intel Pentium Gold Processor Series build compute performance as well as security and remote management into the server with HPE iLO Silicon Root of Trust from HPE iLO. Along with other enhancements such as 4 x 1GbE onboard NICs and USB 3.2 Type-A Gen2, there is nothing micro about the HPE ProLiant MicroServer Gen10 Plus v2 server.

Quick tech specs

Server
1 x Xeon E-2314 / up to 4.5 GHz
SATA
no HDD
Gigabit Ethernet
monitor: none
ultra micro tower 1-way
RAM 16 GB
non-hot-swap 3.5″ bay(s)
no graphics
no OS
Smart Choice

Product Specifications

BrandHPE

Product LineHPE ProLiant

ModelMicroServer Gen10 Plus v2 Performance 1

ManufacturerHPE Smart Buy Express

Clock Speed2.8 GHZ

CoresQuad-Core

Max Turbo Speed4.5 GHZ

Processor BrandIntel

Processor Main FeaturesIntel Turbo Boost Technology

Processor NumberE-2314

Processor TypeXeon

Processors Installed1

Server Scalability1-way

Total Processor Supported1

UpgradabilityUpgradable

Available Memory Slots1

Cache MemoryL3 cache

Cache Memory Installed8 megabyte

Configuration Features1 x 16 GB

Data Integrity CheckECC

Max Memory Supported64 GB

Memory Slots2

Memory Speed3200 megahertz

Memory TechnologyDDR4 SDRAM

RAM Installed16 GB

Rated Memory Speed3200 megahertz

Drive TypeNo optical drive

Optical Drive TypeNo optical drive, None

Optical Drive Type (2nd)None

RAID LevelsRAID 0, RAID 1, RAID 10, RAID 5

Storage (2nd)None

Storage (3rd)None

Storage (4th)None

Storage Controller NameIntel VROC SATA Software RAID

Storage Controller TypeRAID

TypeNone

Hard Drive Interface TypeNo HDD

Data Link ProtocolsEthernet, Fast Ethernet, Gigabit Ethernet

Ethernet ControllersIntel I350-AM4

Ethernet Ports4 x Gigabit Ethernet

FeaturesACPI support, PXE support, Wake On LAN (WOL)

Remote ManagementIPMI 2.0, SMASH CLP, SNMP 3

Expansion Bays4 (total) / 4 (free) x internal 3.5″ LFF

Slots1 (total) / 1 (free) x expansion slot (iLO Enablement Kit slot), 1 (total) / 1 (free) x PCIe 4.0 x16 – low-profile

Interface Provided1 x DisplayPort, 1 x USB 2.0 – Type A (1 rear), 1 x VGA, 2 x USB 3.2 Gen 2 – Type A (2 in front), 4 x LAN (Gigabit Ethernet), 4 x USB 3.2 Gen 1 – Type A (3 rear, 1 internal)

Display TechnologyNone.

Graphics Controller ModelNo graphics

Video InterfacesDisplayPort, VGA

Audio Input TypeNone

Frequency50/60 hertz

Power Device TypePower adapter

Power Provided180 watt

Required VoltageAC 100-240 volt

Operating System EditionNo operating system

Chipset TypeIntel C252

Embedded SecurityTrusted Platform Module (TPM 2.0) Security Chip

Form FactorTower

Form Factor (RAM)DIMM 288-pin

Storage Controller InterfaceSerial ATA-600

Operating Humidity8 – 90% RH (non-condensing)

Sound Emission24 dBA

Controllers Included1

CountryCanada, United States

Printer Product TypeNone

Internal Bays4

Manufacturer Form FactorUltra micro tower

Packaged Quantity1

Product TypeServer

Security Slot TypeKensington security slot

Server Storage BaysNon-hot-swap

Server Swappable Drive Form Factor3.5″

Server Swappable Drive Form Factor (metric)8.9 cm

Server Swappable Drive InterfaceSATA

Theft ProtectionPadlock loop, Security lock slot (cable lock sold separately)

Included AccessoriesNon-redundant system fan

Height4.7 inch

Weight9.33 lbs

Width9.6 inch

Depth9.6 inch

Color CategoryBlack

Compliant StandardsCISPR 32, CNS 13438, EN 55032, EN 61000-3-2, EN 61000-3-3, EN55024, FCC CFR47 Part 15, FCC Class B certified, GB 9254, ICES-003, K24, K32

ENERGY STAR CertifiedNo

TCO CertifiedNo

On-Site WarrantyOn-site

Service & Support DetailsLimited warranty – parts and labor – 1 year – on-site – response time: next business day

Limited Warranty1 Year
