Home » Products » Servers » HPE ProLiant MicroServer Gen11 – ultra micro tower Xeon E-2434 3.4 GHz – 16 GB – HDD 1 TB

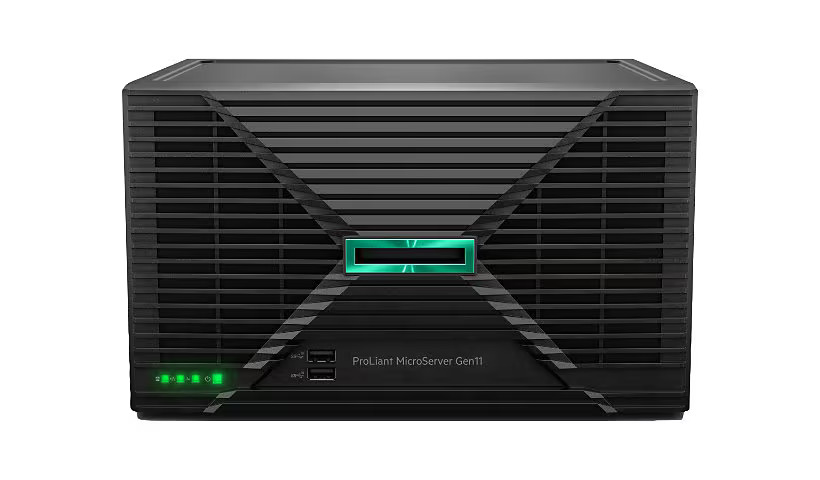

HPE ProLiant MicroServer Gen11 – ultra micro tower Xeon E-2434 3.4 GHz – 16 GB – HDD 1 TB

(P68821-001)

Categories: Servers, HP ProLiant, Micro Server

Are you a small office or small business with branch offices looking for a budget friendly server that can fit almost anywhere? The HPE ProLiant MicroServer Gen11 delivers an affordable, compact yet powerful entry level server that you can customize for on-premises or for hybrid cloud possibilities while still meeting the enterprise-class performance, security, reliability, and expandability standards of the rest of the HPE ProLiant enterprise class server portfolio. With a mini tower design, place it flat or vertically or wall mounted, depending on customer environment. The latest Intel Xeon E and Pentium processors supported to deliver compute performance, increased memory capacity, as well as security and remote management into the server with HPE iLO silicon root of trust. The affordable starting price makes the HPE ProLiant MicroServer Gen11 a good value that has the networking and performance capacity to grow with your business as your needs and budget change over time.

Quick tech specs

Server
1 x Xeon E-2434 / up to 5 GHz
SATA
HDD 1 TB
Gigabit Ethernet
monitor: none
ultra micro tower 1-way
RAM 16 GB
non-hot-swap 3.5″ bay(s)
no graphics
no OS

Product Specifications

BrandHPE

Product LineHPE ProLiant

ModelMicroServer Gen11

ManufacturerHewlett-Packard

Clock Speed3.4 GHZ

CoresQuad-Core

Max Turbo Speed5 GHZ

Processor BrandIntel

Processor Main FeaturesIntel Smart Cache, Intel Turbo Boost Technology

Processor NumberE-2434

Processor TypeXeon

Processors Installed1

Server Scalability1-way

Total Processor Supported1

UpgradabilityUpgradable

Available Memory Slots3

Cache Memory Installed12 megabyte

Configuration Features1 x 16 GB

Data Integrity CheckECC

Max Memory Supported128 GB

Memory Slots4

Memory Speed4400 megahertz

Memory TechnologyDDR5 SDRAM

RAM Installed16 GB

Rated Memory Speed4800 megahertz

Drive InterfaceSerial ATA-600

Drive TypeNo optical drive

Hard Drive Capacity1 TB

Hard Drive FeaturesBusiness critical

Installed Quantity1

Interface ClassSerial ATA

Optical Drive TypeNo optical drive, None

Optical Drive Type (2nd)None

RAID LevelsRAID 0, RAID 1, RAID 10, RAID 5

Spindle Speed (rpm)7200 revolutions per minute

Storage (2nd)None

Storage (3rd)None

Storage (4th)None

Storage Controller NameIntel VROC SATA Software RAID

Storage Controller TypeSerial ATA

TypeNone

Hard Drive Interface TypeHDD

Data Link ProtocolsEthernet, Fast Ethernet, Gigabit Ethernet

Ethernet Ports4 x Gigabit Ethernet

FeaturesACPI support, PXE support, Wake On LAN (WOL)

Remote ManagementIPMI 2.0, SMASH CLP, SNMP 3

Remote Management ControllerIntegrated Lights-Out 6

Expansion Bays4 (total) / 3 (free) x internal 3.5″ LFF

Slots1 (total) / 1 (free) x PCIe 4.0 x8 – low-profile (x4 mode), 1 (total) / 1 (free) x PCIe 5.0 x16 – low-profile

Interface Provided1 x DisplayPort 1.1a, 1 x VGA, 2 x USB 3.2 Gen 2 (2 in front), 4 x LAN (Gigabit Ethernet), 4 x USB 3.2 Gen 1 – Type A (4 rear)

Display TechnologyNone.

Graphics Controller ModelNo graphics

Video InterfacesDisplayPort, VGA

Audio Input TypeNone

Frequency50/60 hertz

Power Device TypePower adapter

Power Provided180 watt

Required VoltageAC 100-240 volt

Operating System EditionNo operating system

OS CertifiedMicrosoft Windows Server 2022, Red Hat Enterprise Linux 8.8, Red Hat Enterprise Linux 9.2, Ubuntu 20.04, Ubuntu 22.04, VMware vShpere

Chipset TypeIntel C262

Embedded SecurityTrusted Platform Module (TPM) Security Chip

Form FactorTower

Form Factor (RAM)DIMM 288-pin

Max Operating Temperature95 degree Fahrenheit

Min Operating Temperature50 degree Fahrenheit

Operating Humidity8 – 90% (non-condensing)

CountryNorth America

Printer Product TypeNone

Internal Bays4

Manufacturer Form FactorUltra micro tower

Packaged Quantity1

Product TypeServer

Security Slot TypeKensington security slot

Server Storage BaysNon-hot-swap

Server Swappable Drive Form Factor3.5″

Server Swappable Drive Form Factor (metric)8.9 cm

Server Swappable Drive InterfaceSATA

Theft ProtectionSecurity lock slot (cable lock sold separately)

Included AccessoriesNon-redundant system fan

Height6.1 inch

Weight18.78 lbs

Width10.3 inch

Depth9.8 inch

Color CategoryBlack

Compliant StandardsCISPR 32, CNS 13438, EN 55032, EN 61000-3-2, EN 61000-3-3, EN55024, FCC CFR47 Part 15, FCC Class B certified, GB 9254, ICES-003, K24, K32

ENERGY STAR CertifiedNo

TCO CertifiedNo

On-Site WarrantyOn-site

Service & Support DetailsLimited warranty – parts and labor – 1 year – on-site

Limited Warranty1 Year
