Home » Products » Servers » HPE ProLiant ML110 Gen11 – tower Xeon Gold 5416S 2 GHz – 32 GB – no HDD

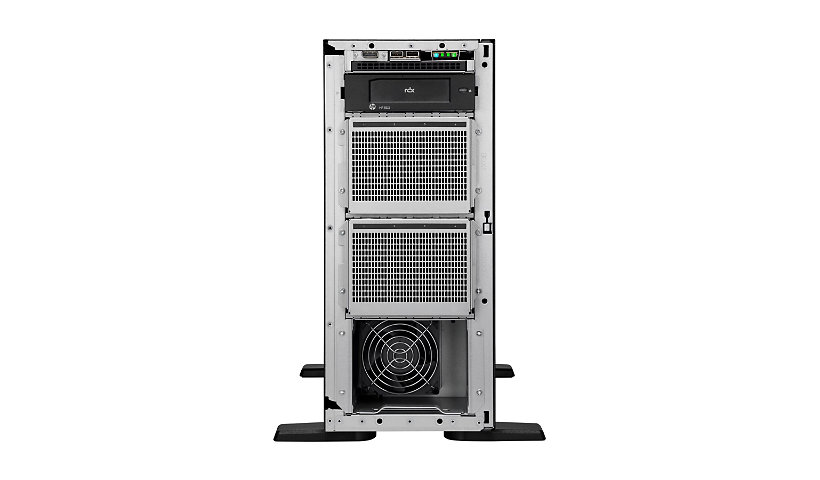

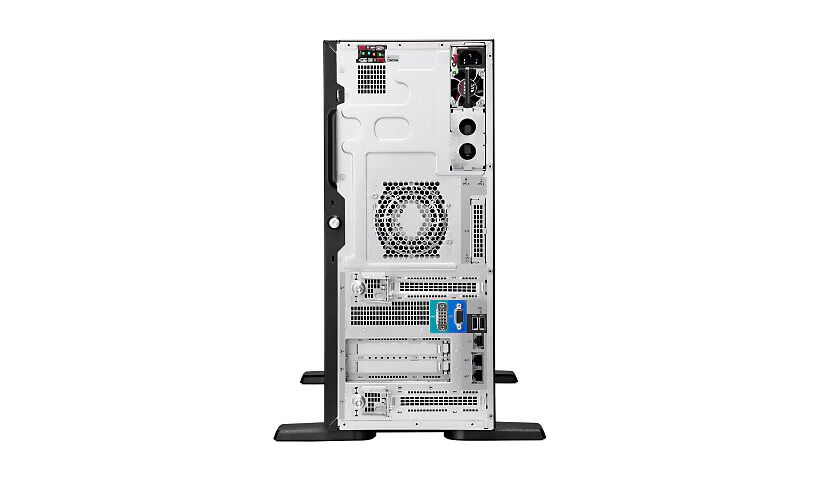

HPE ProLiant ML110 Gen11 – tower Xeon Gold 5416S 2 GHz – 32 GB – no HDD

(P55537-001)

Categories: Servers, HP ProLiant, Tower Servers, ML110 Gen 11

Are you searching for an affordable tower server with enterprise-class reliability and performance to meet the requirements of your growing business? The HPE ProLiant ML110 Gen11 server is an enhanced single processor tower with performance, expansion, and security at an affordable price. It supports the 4th and 5th Gen Intel Xeon Scalable processor, HPE DDR5 SmartMemory with a maximum capacity of 1536 GB, 4 x16 PCIe Gen5 slots, 1 x16 OCP3 slot, eight large form factor (LFF) or 16 small form factor (SFF) disk drives. It can easily be converted to a rack using 5.5U of rack space. The HPE ProLiant ML110 Gen11 server also offers optional redundant fan and redundant power supply to satisfy automatic fail-over needs, making this the ideal server for small- to mid-sized businesses, and remote and branch offices.

Quick tech specs

Server
1-way
RAM 32 GB
hot-swap 2.5″ bay(s)
Gigabit Ethernet
tower 4.5U
1 x Xeon Gold 5416S / up to 4 GHz
SATA/SAS/PCI Express
no HDD
monitor: none

Product Specifications

BrandHPE

Product LineHPE ProLiant

ModelML110 Gen11

ManufacturerHewlett-Packard

Clock Speed2 GHZ

Cores16-core

Max Turbo Speed4 GHZ

Processor BrandIntel

Processor Number5416S

Processor TypeXeon Gold

Processors Installed1

Server Scalability1-way

Total Processor Supported1

UpgradabilityUpgradable

Available Memory Slots15

Cache MemoryL3 cache

Cache Memory Installed30 megabyte

Configuration Features1 x 32 GB

Data Integrity CheckAdvanced ECC

FeaturesHPE SmartMemory, Registered

Max Memory Supported1 TB

Memory Slots16

Memory Speed4400 megahertz

Memory TechnologyDDR5 SDRAM

RAM Installed32 GB

Rated Memory Speed4800 megahertz

Channel Quantity8

Drive TypeNo optical drive

Optical Drive TypeNo optical drive, None

Optical Drive Type (2nd)None

Storage (2nd)None

Storage (3rd)None

Storage (4th)None

Storage Controller NameIntel VROC SATA Software RAID

Storage Controller TypeSerial ATA

TypeNone

Hard Drive Interface TypeNo HDD

Data Link ProtocolsEthernet, Fast Ethernet, Gigabit Ethernet

Ethernet ControllersBroadcom BCM5720

Ethernet Ports2 x Gigabit Ethernet

Remote Management ControllerIntegrated Lights-Out 6

Expansion Bays1 (total) / 1 (free) x external 5.25″, 8 (total) / 8 (free) x hot-swap 2.5″ SFF

Slots1 (total) / 1 (free) x PCIe 5.0 x16 / Open Compute Project mezzanine (OCP) 3.0 (x16 mode), 2 (total) / 2 (free) x PCIe 5.0 x16

Interface Provided1 x HPE iLO – RJ-45 (1 rear), 1 x HPE iLO – Type A (1 in front), 1 x VGA, 2 x LAN (Gigabit Ethernet), 3 x USB 3.0 (1 front, 2 rear)

Display TechnologyNone.

Video InterfacesVGA

Installed Size16 megabyte

Power Device TypePower supply – hot-plug

Power Provided800 watt

Power Supplies Installed1

Power Supplies Supported2

Redundant Power SupplyOptional

Redundant Power Supply Supported1+1 (with optional power supply)

Software TypeHPE iLO Standard with Intelligent Provisioning, HPE OneView Standard (free download)

Form FactorTower

Form Factor (RAM)DIMM 288-pin

Storage Controller InterfaceSerial ATA-600

Controllers Included1

CountryUnited States

Printer Product TypeNone

Hot-Swap Bays8

Manufacturer Form FactorTower

Packaged Quantity1

Product TypeServer

Server Storage BaysHot-swap

Server Swappable Drive Form Factor2.5″

Server Swappable Drive Form Factor (metric)6.4 cm

Server Swappable Drive InterfaceSATA/SAS/PCI Express

Included Accessories2 non-hot plug standard fans

Height (Rack Units)4.5

Color CategoryBlack

ENERGY STAR CertifiedNo

TCO CertifiedNo

On-Site WarrantyOn-site

Service & Support DetailsLimited warranty – parts and labor – 3 years – on-site – response time: next business day

Limited Warranty3 Year
