Home » Products » Servers » HPE ProLiant ML30 Gen10 Plus Performance – tower Xeon E-2314 2.8 GHz – 16 GB – no HDD

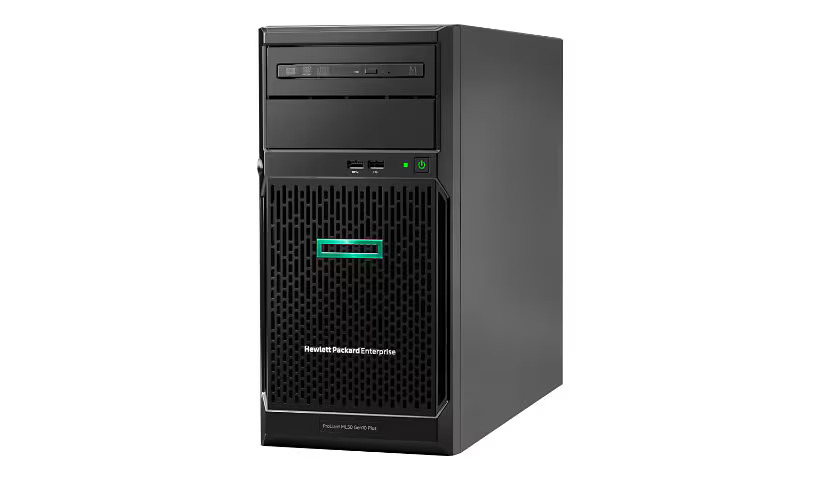

HPE ProLiant ML30 Gen10 Plus Performance – tower Xeon E-2314 2.8 GHz – 16 GB – no HDD

(P44722-001)

Categories: Servers, ML30 Gen10, HP ProLiant, Rackmount Servers

Do you know that a reliable enterprise-class server can easily meet your budget? The HPE ProLiant ML30 Gen10 Plus server is a powerful yet affordable tower server designed for small offices, remote and branch offices to run on-premises and hybrid cloud solutions, delivering enterprise-class performance, security, reliability, and expandability at a low cost. Hewlett Packard Enterprise builds security right into the server with HPE iLO silicon root of trust from HPE. A redundant power supply option and up to 4 LFF or 8 SFF hot-plug HDDs provide availability and flexibility. The enhanced expansion capability, now including PCIe Gen4, allows you to upgrade with serial attached SCSI (SAS) controllers or networking cards as your business grows, which can give you an extra edge. You will be surprised at how much your business can benefit now and in the future with an HPE ProLiant ML30 Gen10 Plus server.

Quick tech specs

Server
4U
1 x Xeon E-2314 / up to 4.5 GHz
SATA
no HDD
monitor: none
tower
1-way
RAM 16 GB
hot-swap 2.5″ bay(s)
Gigabit Ethernet

Product Specifications

BrandHPE

Product LineHPE ProLiant

ModelML30 Gen10 Plus Performance

ManufacturerHewlett-Packard

Clock Speed2.8 GHZ

CoresQuad-Core

Max Turbo Speed4.5 GHZ

Processor BrandIntel

Processor Main FeaturesIntel Turbo Boost Technology 2

Processor NumberE-2314

Processor TypeXeon

Processors Installed1

Server Scalability1-way

Total Processor Supported1

UpgradabilityUpgradable

Available Memory Slots3

Cache MemoryL3 cache

Cache Memory Installed8 megabyte

Configuration Features1 x 16 GB

Data Integrity CheckECC

FeaturesUnbuffered

Max Memory Supported128 GB

Memory Slots4

Memory Speed3200 megahertz

Memory TechnologyDDR4 SDRAM

RAM Installed16 GB

Rated Memory Speed3200 megahertz

Channel Quantity6

Drive TypeNo optical drive

Optical Drive TypeNo optical drive, None

Optical Drive Type (2nd)None

RAID LevelsRAID 0, RAID 1, RAID 10, RAID 5

Storage (2nd)None

Storage (3rd)None

Storage (4th)None

Storage Controller TypeRAID

TypeNone

Hard Drive Interface TypeNo HDD

Data Link ProtocolsEthernet, Fast Ethernet, Gigabit Ethernet

Ethernet ControllersBroadcom BCM5720

Ethernet Ports2 x Gigabit Ethernet

FeaturesPXE support

Remote ManagementIPMI 2.0, SMASH CLP, SNMP 3

Remote Management ControllerIntegrated Lights-Out 5

Expansion Bays8 (total) / 8 (free) x hot-swap 2.5″ SFF

Slots1 (total) / 1 (free) x M.2 Card (PCIe x2 and SATA mode), 1 (total) / 1 (free) x PCIe 3.0 x16 – full-length, full-height (x4 mode), 1 (total) / 1 (free) x PCIe 4.0 x16 – full-length, full-height, 2 (total) / 2 (free) x PCIe 3.0 x8 – half-length, full-height (x4 mode)

Interface Provided1 x LAN (Gigabit Ethernet), 1 x LAN (Gigabit Ethernet) / HPE iLO, 1 x USB 2.0 (1 in front), 1 x VGA, 6 x USB 3.0 (1 front, 4 rear, 1 internal)

Display TechnologyNone.

Video InterfacesVGA

Power Device TypePower supply – hot-plug

Power Provided500 watt

Power Supplies Installed1

Power Supplies Supported2

Redundant Power SupplyOptional

Redundant Power Supply Supported1+1 (with optional power supply)

Required VoltageAC 100-120/200-240 volt

80 PLUS Certification80 PLUS Platinum

Software TypeHPE iLO Standard with Intelligent Provisioning, HPE OneView Standard (free download)

Chipset TypeIntel C256

Efficiency94%

Embedded SecurityTrusted Platform Module (TPM 2.0) Security Chip

Form FactorTower

Form Factor (RAM)DIMM 288-pin

Storage Controller InterfaceSerial ATA-600

Max Operating Temperature95 degree Fahrenheit

Min Operating Temperature50 degree Fahrenheit

Operating Humidity8 – 90% RH (non-condensing)

Sound Emission28 dBA

Controllers Included1

CountryAmericas

Printer Product TypeNone

Hot-Swap Bays8

Manufacturer Form FactorTower

Packaged Quantity1

Product TypeServer

Security Slot TypeKensington security slot

Server Storage BaysHot-swap

Server Swappable Drive Form Factor2.5″

Server Swappable Drive Form Factor (metric)6.4 cm

Server Swappable Drive InterfaceSATA

Theft ProtectionPadlock loop, Security lock slot (cable lock sold separately)

Included AccessoriesHPE standard heatsink, Non-hot plug non-redundant system fan

Height14.5 inch

Height (Rack Units)4

Weight22.27 lbs

Width6.9 inch

Depth

Color CategoryBlack

Compliant StandardsACPI 6.3, ASHRAE Class A3, ASHRAE Class A4, EMC, TLS v1.2, UEFI, WEEE 2002/95/EC

ENERGY STAR CertifiedNo

TCO CertifiedNo

On-Site WarrantyOn-site

On-Site Warranty Comments1st year only

Service & Support DetailsLimited warranty – parts – 3 years – response time: next business day, Limited warranty – parts and labor – 1 year – on-site – response time: next business day

Limited Warranty3 Year Year
