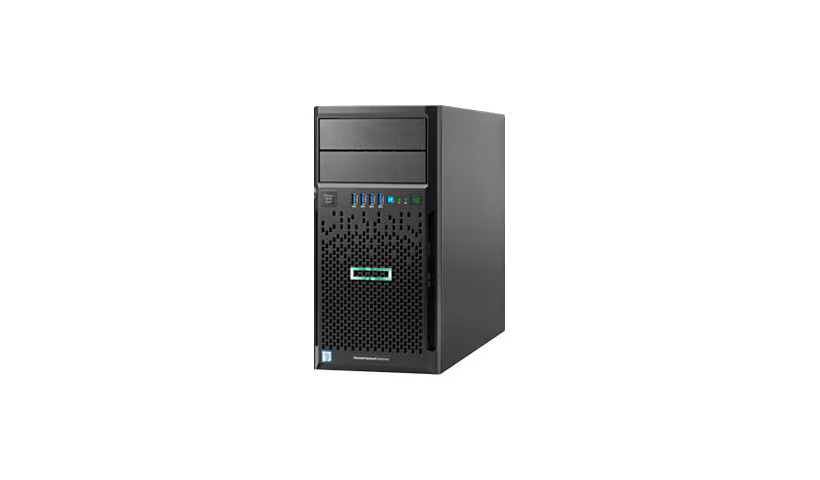

HPE ProLiant ML30 Gen9 Performance – micro tower Xeon E3-1230V6 3.5 GHz – 8 GB – no HDD

(P03706-S01)

Categories: Servers, HP ProLiant, Rackmount Servers, ML30 Gen9

Does your remote or branch office need a server that delivers the essential availability and expansion to accommodate your changing business needs? The HPE ProLiant ML30 Gen9 server is an affordable single-socket tower server that features value performance, expansion, and growth that is ideal for small businesses and remote branch offices.

Quick tech specs

Server
4U
1 x Xeon E3-1230V6 / up to 3.9 GHz
SATA
no HDD
Matrox G200
monitor: none
micro tower
1-way
RAM 8 GB
hot-swap 3.5″ bay(s)
DVD-Writer
Gigabit Ethernet

Product Specifications

BrandHPE

Product LineHPE ProLiant

ModelML30 Gen9 Performance

ManufacturerHewlett-Packard

Bus TypePCI Express x4

Clock Speed3.5 GHZ

CoresQuad-Core

Max Turbo Speed3.9 GHZ

Processor BrandIntel

Processor Main FeaturesIntel Turbo Boost Technology 2

Processor NumberE3-1230V6

Processor TypeXeon

Processors Installed1

Server Scalability1-way

Total Processor Supported1

UpgradabilityUpgradable

Available Memory Slots3

Cache Memory Installed8 megabyte

Configuration Features1 x 8 GB

Data Integrity CheckECC

FeaturesUnbuffered

Max Memory Supported64 GB

Memory Slots4

Memory Speed2400 megahertz

Memory SupportedPC4-17000 – 64 GB unbuffered

Memory TechnologyDDR4 SDRAM

RAM Installed8 GB

Rated Memory Speed2400 megahertz

Channel Quantity10

Drive TypeNo optical drive

Optical Drive TypeDVD-RW, DVD-Writer

Optical Drive Type (2nd)None

RAID LevelsRAID 0, RAID 1, RAID 10, RAID 5

Storage (2nd)None

Storage (3rd)None

Storage (4th)None

Storage Controller (2nd)None

Storage Controller NameHP Dynamic Smart Array B140i

Storage Controller TypeRAID

TypeNone

Hard Drive Interface TypeNo HDD

Compliant StandardsIEEE 802.3, IEEE 802.3ab, IEEE 802.3u

Data Link ProtocolsEthernet, Fast Ethernet, Gigabit Ethernet

Ethernet ControllersHPE 332i

Ethernet Ports2 x Gigabit Ethernet

FeaturesPXE support, Wake On LAN (WOL)

Host InterfacePCI Express x2

Remote Management ControllerIntegrated Lights-Out 4

Expansion Bays1 (total) / 0 (free) x external 5.25″, 4 (total) / 4 (free) x hot-swap 3.5″ LFF

Slots1 (total) / 1 (free) x microSD Card (internal), 1 (total) / 1 (free) x PCIe 3.0 x16 – full-length, full-height, 1 (total) / 1 (free) x PCIe 3.0 x8 – half-length, full-height (x4 mode), 2 (total) / 2 (free) x PCIe 3.0 x4 – full-length, full-height (x1 mode)

Interface Provided1 x LAN (Gigabit Ethernet) / HP iLO, 1 x VGA (1 rear), 2 x LAN (Gigabit Ethernet), 4 x USB 2.0 (2 rear, 2 internal), 6 x USB 3.0 (4 front, 2 rear)

Display TechnologyNone.

Graphics Controller ModelMatrox G200

Graphics Processor SeriesMatrox G200

Video InterfacesVGA

Audio Input TypeNone

Frequency50/60 hertz

Power Device TypePower supply

Power Provided460 watt

Power Supplies Installed1

80 PLUS Certification80 PLUS Gold

Chipset TypeIntel C236

Efficiency92%

Embedded SecurityTrusted Platform Module (TPM 1.2) Security Chip

Form FactorTower

Form Factor (RAM)DIMM 288-pin

Storage Controller InterfaceSerial ATA-600

Interface TypeSerial ATA

Max Operating Temperature104 degree Fahrenheit

Min Operating Temperature32 degree Fahrenheit

Operating Humidity10 – 90%

Controllers Included1

Printer Product TypeNone

Front Accessible Bays1

Hot-Swap Bays4

Manufacturer Form FactorMicro tower

Packaged Quantity1

Product TypeServer

Server Storage BaysHot-swap

Server Swappable Drive Form Factor3.5″

Server Swappable Drive Form Factor (metric)8.9 cm

Server Swappable Drive InterfaceSATA

Height14.9 inch

Height (Rack Units)4

Weight29.89 lbs

Width7.4 inch

Depth19.4 inch

Color CategoryBlack

Compliant StandardsACPI 2.0b, ASHRAE, CISPR 22, CNS 13438, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN55022, EN55024, FCC CFR47 Part 15, FCC Class A certified, GB 9254, ICES-003, IEC 60950-1, WEEE

ENERGY STAR CertifiedNo

TCO CertifiedNo

On-Site WarrantyOn-site

On-Site Warranty Comments1st year only

Service & Support DetailsLimited warranty – parts – 3 years, Limited warranty – parts and labor – 1 year – on-site

Limited Warranty3 Year
