Home » Products » Servers » HPE ProLiant ML350 Gen11 Performance 3 – tower Xeon Silver 4416+ 2 GHz – 32 GB – no HDD

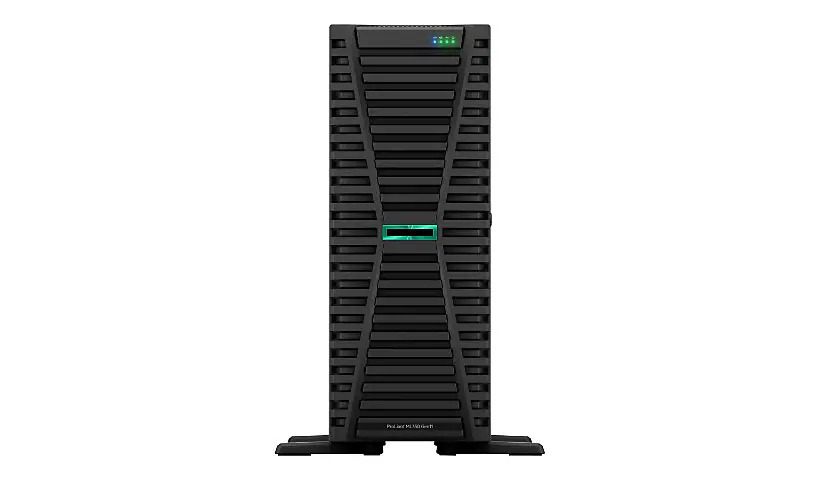

HPE ProLiant ML350 Gen11 Performance 3 – tower Xeon Silver 4416+ 2 GHz – 32 GB – no HDD

(P53568-001)

Categories: Servers, HP ProLiant, Tower Servers, ML350 Gen11

The HPE ProLiant ML350 Gen11 Performance 3 Tower is engineered for your hybrid world. It simplifies the way you control your business’s compute-from edge to cloud-with a cloud operating experience. This tower features one Intel Xeon Silver 4416+ processor, 32 GB DDR5 RDIMM memory, HPE MR408i-o storage controller and one HPE 800W flex slot power supply. It comes with a complete set of HPE Pointnext services, delivering confidence, reducing risk and helping customers realize agility and stability.

Quick tech specs

Server
2-way
RAM 32 GB
hot-swap 2.5″ bay(s)
Gigabit Ethernet
monitor: none
tower 4U
1 x Xeon Silver 4416+ / up to 3.9 GHz
SATA/SAS/NVMe
no HDD
no OS
BTO

Product Specifications

BrandHPE

Product LineHPE ProLiant

ModelML350 Gen11 Performance 3

ManufacturerHewlett-Packard

Bus TypeOpen Compute Project mezzanine (OCP)

Clock Speed2 GHZ

Cores20-core

Max Turbo Speed3.9 GHZ

Processor Main FeaturesIntel Turbo Boost Technology

Processor Number4416+

Processor TypeXeon Silver

Processors Installed1

Server Scalability2-way

Total Processor Supported2

UpgradabilityUpgradable

Available Memory Slots15

Cache MemoryL3 cache

Cache Memory Installed37.5 megabyte

Configuration Features1 x 32 GB

Data Integrity CheckAdvanced ECC

Features8-channel memory architecture, Dual rank, HPE SmartMemory, Registered, Slots 17 – 32 are available in two-processor configuration only

Max Memory Supported4 TB

Memory Slots16

Memory Speed4000 megahertz

Memory TechnologyDDR5 SDRAM

RAM Installed32 GB

Rated Memory Speed4800 megahertz

Buffer Size4 GB

Channel Quantity8

Drive TypeNo optical drive

Optical Drive TypeNo optical drive, None

Optical Drive Type (2nd)None

RAID LevelsRAID 0, RAID 1, RAID 10, RAID 5, RAID 50, RAID 60

Storage (2nd)None

Storage (3rd)None

Storage (4th)None

Storage Controller (2nd)None

Storage Controller NameHPE MR408i-o Gen11 SPDM

Storage Controller TypeRAID

TypeNone

Hard Drive Interface TypeNo HDD

Data Link ProtocolsEthernet, Fast Ethernet, Gigabit Ethernet

Ethernet ControllersBroadcom BCM5719

Ethernet Ports4 x Gigabit Ethernet

FeaturesPXE support, Wake On LAN (WOL)

Host InterfaceOpen Compute Project mezzanine (OCP) 3.0

Remote ManagementSMASH CLP, SNMP 3

Remote Management ControllerIntegrated Lights-Out 6

Expansion Bays8 (total) / 8 (free) x hot-swap 2.5″ SFF

Slots4 (total) / 4 (free) x PCIe 5.0 x16 (x8 mode)

Interface Provided1 x HPE iLO – RJ-45, 1 x HPE iLO – Type A (1 in front), 1 x serial, 1 x USB 2.0 (1 bottom), 1 x VGA, 4 x LAN (Gigabit Ethernet), 4 x USB 3.2 Gen 1 (1 front, 2 rear, 1 top)

Display TechnologyNone.

Video InterfacesVGA

Installed Size16 megabyte

Power Device TypePower supply – hot-plug

Power Provided800 watt

Power Supplies Installed1

Power Supplies Supported2

Redundant Power SupplyOptional

Redundant Power Supply Supported1+1 (with optional power supply)

Required VoltageAC 100-120/200-240 volt

80 PLUS Certification80 PLUS Titanium

Operating System EditionNo operating system

Built-in DevicesLED panel

Chipset TypeIntel C741

Embedded SecurityTrusted Platform Module (TPM 2.0) Security Chip

Form FactorTower

Form Factor (RAM)DIMM 288-pin

Storage Controller InterfaceSerial ATA-600 / SAS 3.0 / PCI Express (NVMe)

Max Operating Temperature95 degree Fahrenheit

Min Operating Temperature50 degree Fahrenheit

Operating Humidity8 – 90% (non-condensing)

Controllers Included1

CountryAmericas

Printer Product TypeNone

Hot-Swap Bays8

Manufacturer Form FactorTower

Packaged Quantity1

Product TypeServer

Security Slot TypeKensington security slot

Server Storage BaysHot-swap

Server Swappable Drive Form Factor2.5″

Server Swappable Drive Form Factor (metric)6.4 cm

Server Swappable Drive InterfaceSATA/SAS/NVMe

Theft ProtectionPadlock eye, Security lock slot (cable lock sold separately)

Included Accessories8 x redundant fans

Height18.2 inch

Height (Rack Units)4

Weight54.52 lbs

Width6.9 inch

Depth28 inch

Color CategoryBlack

Compliant StandardsACPI 6.1, ASHRAE Class A3, ASHRAE Class A4, ErP Lot 9, FIPS 140-3

ENERGY STAR CertifiedYes

TCO CertifiedNo

On-Site WarrantyOn-site

Service & Support DetailsLimited warranty – parts and labor – 3 years – on-site – response time: next business day

Limited Warranty3 Year
