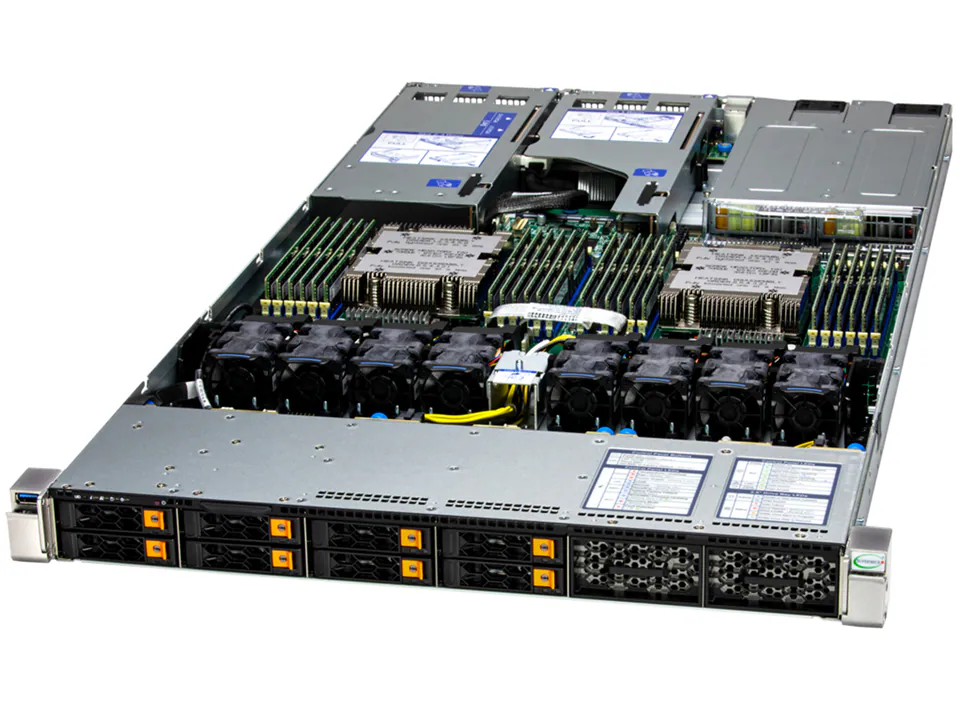

Hyper A+ Server AS -1126HS-TN

(AS -1126HS-TN)

instock

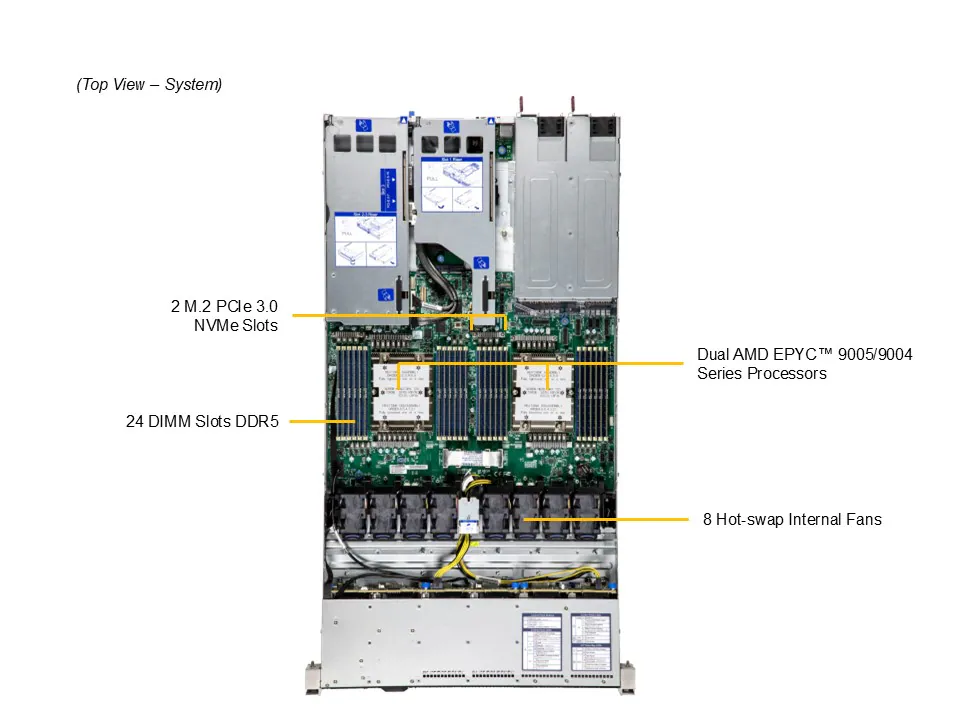

Dual AMD EPYC™ 9005/9004 Series Processors
Support up to DDR5 24 DIMM slots (1DPC), speed up to 6400MT/s
(Please check System Memory Section for detail)
2 PCIe 5.0 x16 FHFL slots
1 PCIe 5.0 x16 FHHL slot
Flexible networking options with 1 AIOM networking slot (OCP NIC 3.0 compatible)

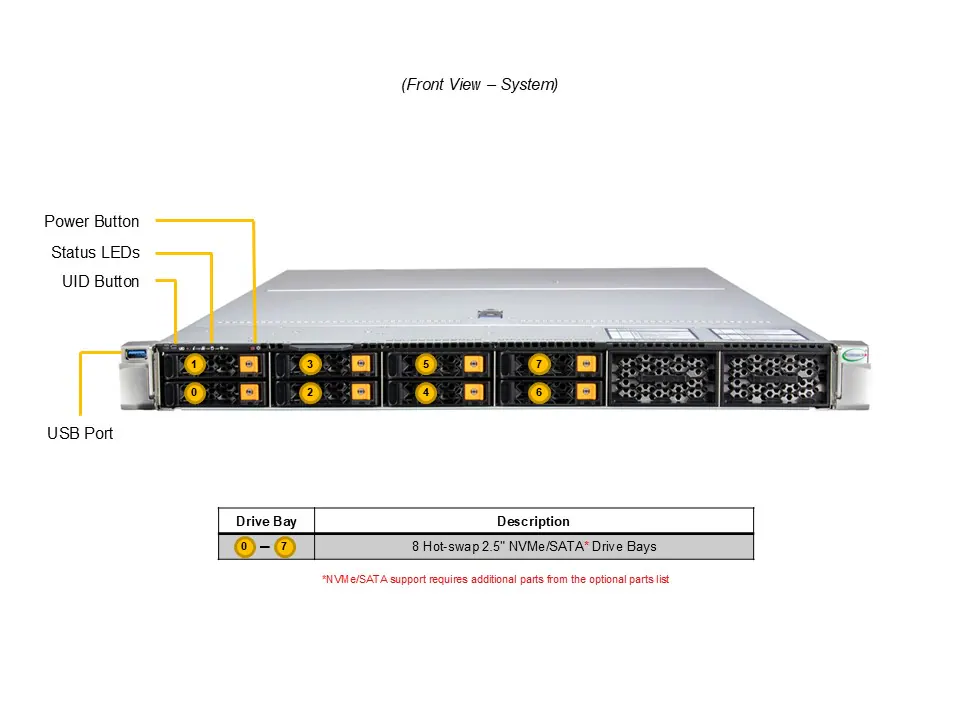

8 Hot-swap 2.5″ NVMe/SATA drive bays
Optional 4 Hot-swap 2.5″ NVMe/SATA drive support via additional parts
2 M.2 PCIe 3.0 NVMe slots
Dual 1600W / 2000W / 2600W Redundant Titanium Level power supplies
(Power supply full redundancy based on configuration and application load)

MSRP^*

N/A

* Manufacturer’s Suggested Retail Price

Product Specifications

CPU	Dual processor(s) AMD EPYC™ 9005/9004 Series Processors
Core Count	Up to 384C/768T
Note	Supports up to 500W TDP CPUs * *Air Cooled CPUs with TDP over 290W only supported under specific conditions. Contact a Supermicro representative for details.

Memory

- Slot Count: 24 DIMM slots
- Max Memory (1DPC): Up to 6TB 6400MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor)
- Max Memory (1DPC): Up to 6TB 4800MT/s ECC DDR5 RDIMM (AMD EPYC™ 9004 Series Processor)

Memory Voltage

Chipset

Network Connectivity

IPMI

- Support for Intelligent Platform Management Interface v.2.0
- IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

<td class=”feature border_b”Video

BIOS Type	AMI 64MB SPI Flash EEPROM
BIOS Features	Plug and Play (PnP) UEFI 2.8 USB Keyboard support ACPI 6.5 SMBIOS 3.7 or later

Software	SuperCloud Composer® Supermicro Server Manager (SSM) Super Diagnostics Offline (SDO) KVM with dedicated LAN IPMI 2.0 Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New! IPMIView
Power configurations	ACPI/APM Power Management Power-on mode control for AC power loss recovery Power button override mechanism,

Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown

FAN	Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors
Voltage	System temperature, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, CPU thermal trip support

Form Factor	1U Rackmount
Model	CSE-HS101-R000NFP

Height	1.7″ (43 mm)
Width	17.2″ (437 mm)
Depth	30.66″ (778.7 mm)
Package	8.82″ (H) x 26.46″ (W) x 43.31″ (D)
Weight	Gross Weight: 41.4 lbs (18.8 kg) Net Weight: 19.2 lbs (8.7 kg)
Available Color	Silver

PCI-Express (PCIe) Configuration

- Default
  - 1 PCIe 5.0 x16 FHHL slot
  - 2 PCIe 5.0 x16 FHFL slots
  - 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)

CXL Support

Drive Bays Configuration

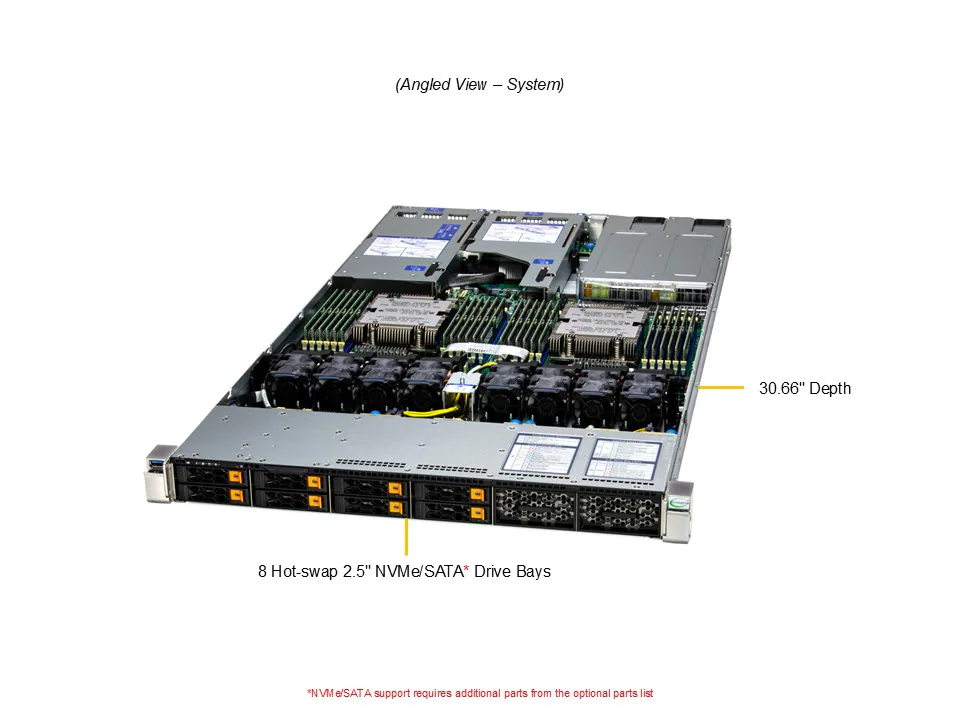

- Default: Total 8 bays
  - 8 front hot-swap 2.5″ NVMe*/SATA* drive bays

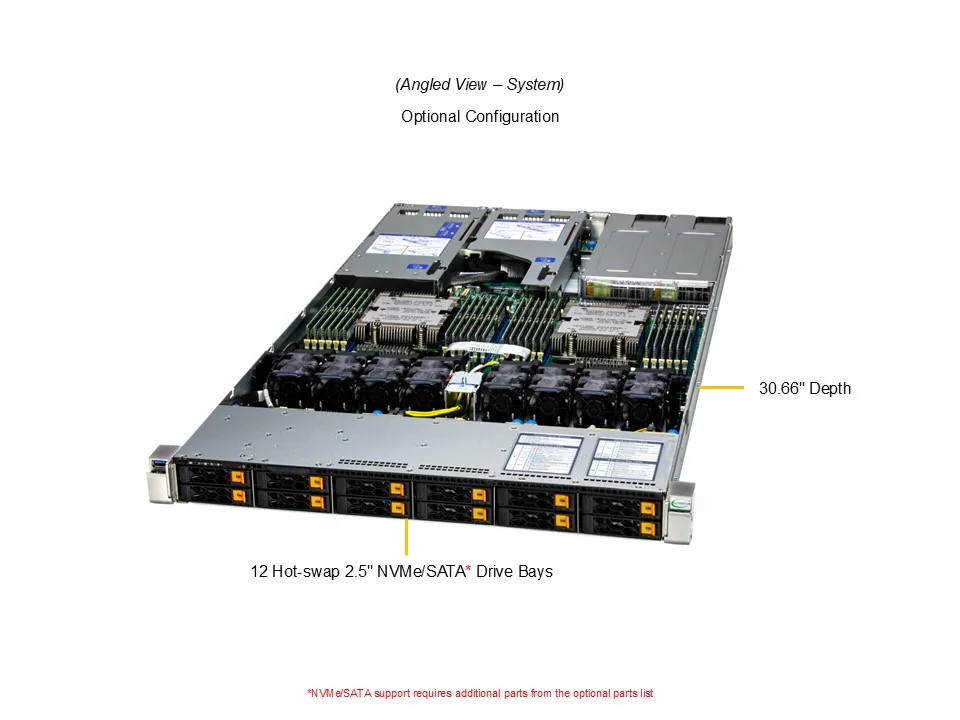

- Option A: Total 12 bays
  - 12 front hot-swap 2.5″ NVMe*/SATA* drive bays
- (*NVMe/SATA support may require additional storage controller and/or cables, please see the optional parts list for details)

M.2

Fans	Up to 8 counter-rotating 40x40x56mm Fan(s)
Air Shroud	2 Air Shrouds

2x 1600W Redundant (1 + 1) Titanium Level (96%) power supplies

Dimension (WxHxL)	73.5 x 40 x 265 mm
Input	1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1600W: 200-240Vac 1600W: 200-240Vac / 50-60Hz 1600W: 200-240Vdc / 50-60Hz (for CQC only)
+12V	Max: 83.3A / Min: 0A (100Vac-127Vac) Max: 133.3A / Min: 0A (200Vac-240Vac)
12V SB	Max: 3.5A / Min: 0A Max: 3.5A
Output Type	Backplanes (gold finger)
