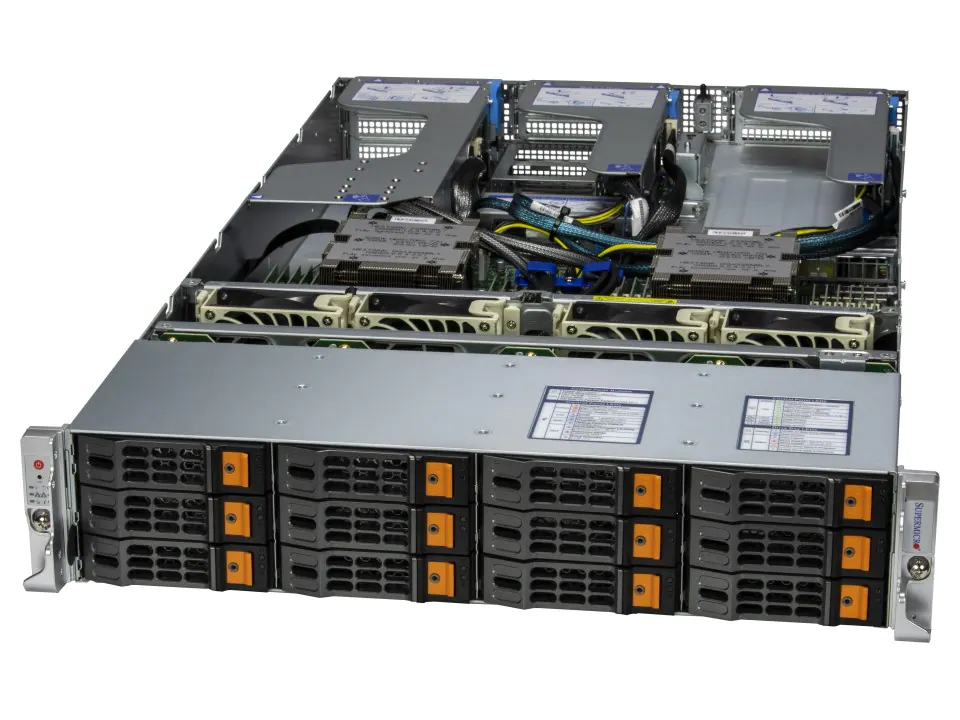

Hyper A+ Server AS -2025HS-TNR

(AS -2025HS-TNR)
instock
  • Ready to Ship Today
Categories: Servers, SuperMicro, Rack Servers

2U Hyper with 12 hot-swap 3.5″ NVMe/SAS/SATA bays and up to 4 PCIe 5.0 x16 slots

Key Features

  1. Dual AMD EPYC™ 9004/9005* Series Processors
    (*AMD EPYC™ 9005 series drop-in support requires board revision 2.xx)
  2. Support up to DDR5 24 DIMM slots (1DPC), speed up to 6400MT/s
    (Please check System Memory Section for detail)
  3. Optional PCIe slot configurations up to 8 PCIe 5.0 x8 or 4 PCIe 5.0 x16 slots or mix and match
    Flexible networking options with 1 AIOM networking slot (OCP NIC 3.0 compatible)
  4. 12 Hot-swap 3.5″/2.5″ NVMe/SATA/SAS drive bays
    2 M.2 PCIe 3.0 NVMe slots
  5. Dual 1600W Redundant Titanium Level power supplies
    (Power supply full redundancy based on configuration and application load)
MSRP*
N/A
Call for pricing
request for quote

* Manufacturer’s Suggested Retail Price

Product Specifications

System Features

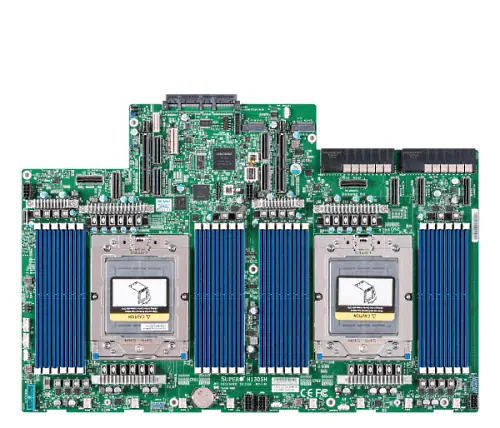

Super H13DSH
CPU
Core Count
  • Up to 320C/640T
Note
  • Supports up to 400W TDP CPUs *
  • *Air Cooled CPUs with TDP over 290W only supported under specific conditions. Contact a Supermicro representative for details.
Max GPU Count
    • Up to 2 double-width or 2 single-width GPUs
Supported GPU
    • NVIDIA PCIe: H100, H100 NVL, A16, A30, A40, L4, L40S, RTX 4000, RTX 6000 Ada Generation, A100, RTX A4000, RTX A4500, RTX A5000, RTX A6000, T1000, RTX A5500, L40, RTX 5000 Ada, RTX A2000
CPU-GPU Interconnect
    • PCIe 5.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect
    • PCIe
Memory
    • Slot Count: 24 DIMM slots
    • Max Memory (1DPC): Up to 6TB 4800MT/s ECC DDR5 RDIMM (AMD EPYC™ 9004 Series Processor, MB R1.x/R2.0/R2.01)
    • Max Memory (1DPC): Up to 6TB 6000MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor, MB R2.0)
    • Max Memory (1DPC): Up to 6TB 6400MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor, MB R2.01)
Memory Voltage
    • 1.1V
Chipset
    • System on Chip
Network Connectivity
    • Via AIOM
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
USB
  • 2 USB 3.0 ports(rear)
Video
  • 1 VGA port
BIOS Type
  • AMI 32MB SPI Flash EEPROM
BIOS Features
  • ACPI 6.4
  • Plug and Play (PnP)
  • SMBIOS 3.5 or later
  • UEFI 2.8
  • USB Keyboard support
Software
Power configurations
  • ACPI Power Management
  • Power-on mode control for AC power loss recovery
  • Power button override mechanism,
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Voltage
  • System temperature, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, CPU thermal trip support
Form Factor
  • 2U
Model
  • CSE-HS829-R1K63P-A
Height
  • 3.5″ (88.9 mm)
Width
  • 17.2″ (437 mm)

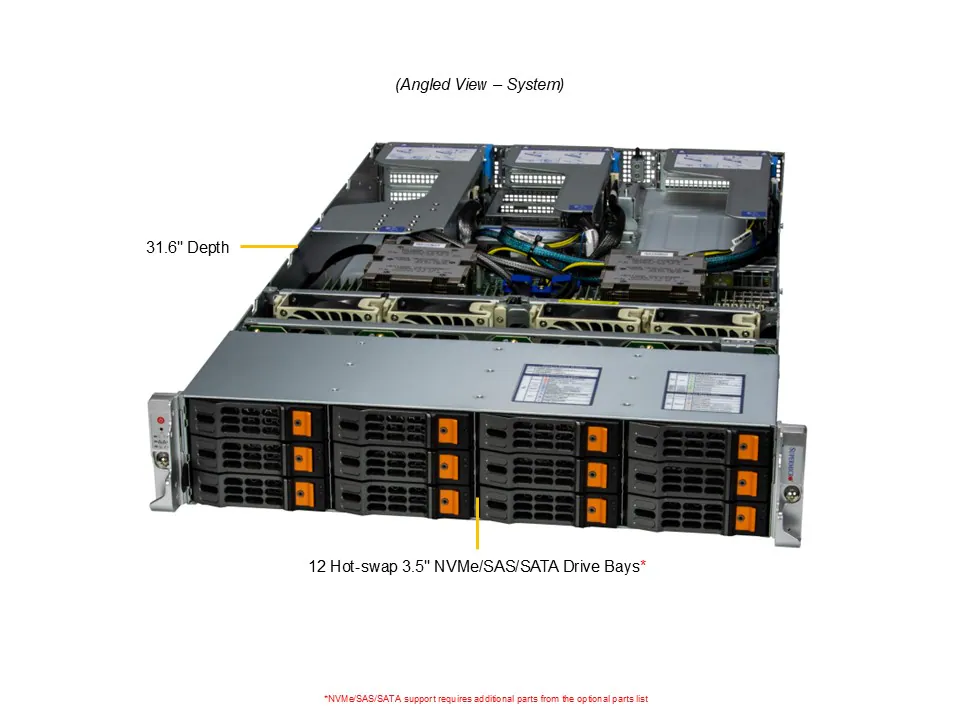

Depth
  • 31.6″ (803 mm)
Package
  • 10.4″ (H) x 23.8″ (W) x 43.6″ (D)
Weight
  • Gross Weight: 69 lbs (31.3 kg)
  • Net Weight: 39 lbs (17.7 kg)
Available Color
  • Black front & silver body
LED
  • HDD activity
  • LAN1 activity
  • Power status
  • System information
Buttons
  • Power On/Off
  • UID button

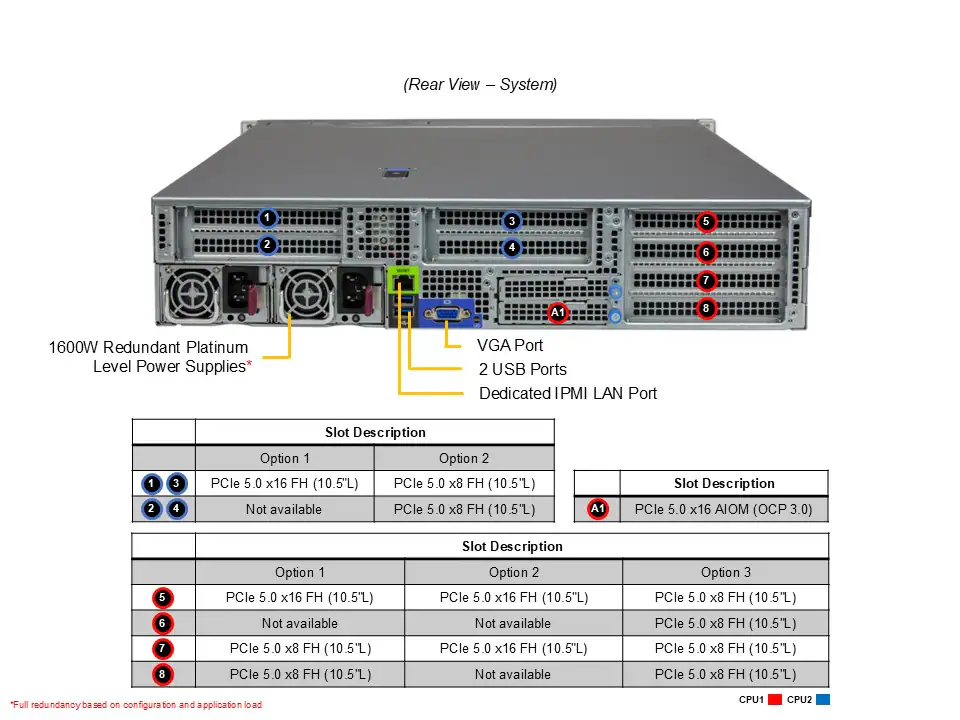

PCI-Express (PCIe) Configuration
    • Default
      • 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
    • Option A*
      • 1 PCIe 5.0 x16 (in x16) FHFL double-width slot
      • 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
    • Option B*
      • 2 PCIe 5.0 x8 (in x16) FHFL slots
      • 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
    • Option C*
      • 2 PCIe 5.0 x16 (in x16) FHFL double-width slots
      • 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
    • Option D*
      • 1 PCIe 5.0 x16 (in x16) FHFL double-width slot
      • 2 PCIe 5.0 x8 (in x16) FHFL slots
      • 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
    • Option E*
      • 4 PCIe 5.0 x8 (in x16) FHFL slots
      • 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
    • Option F*
      • 4 PCIe 5.0 x16 (in x16) FHFL double-width slots
      • 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
    • Option G*
      • 3 PCIe 5.0 x16 (in x16) FHFL double-width slots
      • 2 PCIe 5.0 x8 (in x16) FHFL slots
      • 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
    • Option H*
      • 2 PCIe 5.0 x16 (in x16) FHFL double-width slots
      • 4 PCIe 5.0 x8 (in x16) FHFL slots
      • 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
    • Option I*
      • 1 PCIe 5.0 x16 (in x16) FHFL double-width slot
      • 6 PCIe 5.0 x8 (in x16) FHFL slots
      • 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)

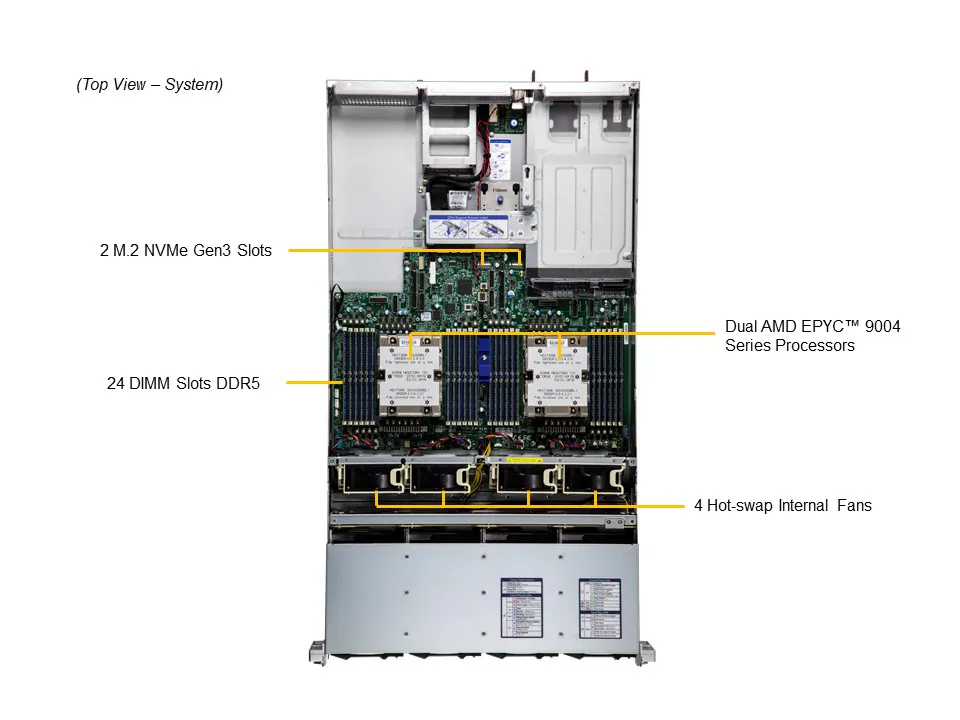

    • (*Requires additional parts, please see the optional parts list for details. For more details on PCIe slot configuration options, please refer to the system callout images above.)

…

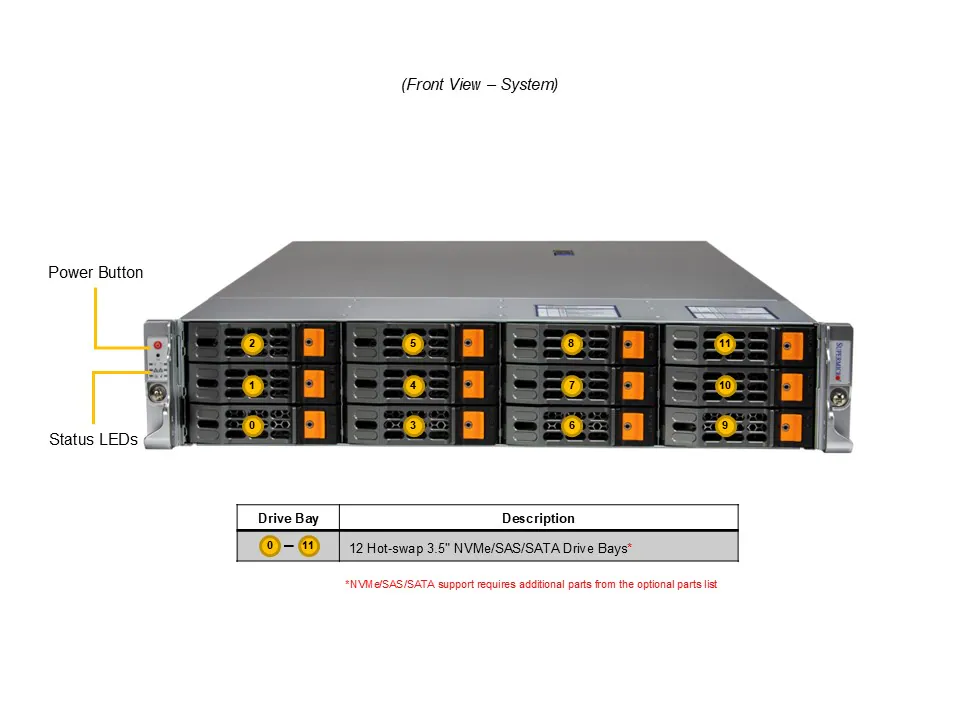

Drive Bays Configuration
    • Default: Total 12 bays
      • 12 front hot-swap 3.5″/2.5″ NVMe*/SAS*/SATA* drive bays
    • (*NVMe/SAS/SATA support may require additional storage controller and/or cables)
M.2
    • 2 M.2 PCIe 3.0 x4 NVMe slots (M-key 2280/22110)
Fans
  • Up to 4x 8cm heavy duty fans with optimal fan speed control
Air Shroud
  • 2 Air Shrouds
2x 1600W Redundant (1 + 1) Titanium Level (96%) power supplies
Dimension (WxHxL) 73.5 x 40 x 265 mm
Input 1000W: 100-127Vac
1000W: 100-127Vac / 50-60Hz
1600W: 200-240Vac
1600W: 200-240Vac / 50-60Hz
1600W: 200-240Vdc / 50-60Hz (for CQC only)
+12V Max: 83.3A / Min: 0A (100Vac-127Vac)
Max: 133.3A / Min: 0A (200Vac-240Vac)
12V SB Max: 3.5A / Min: 0A
Max: 3.5A
Output Type Backplanes (gold finger)
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -30°C to 60°C (-22°F to 140°F)
  • Operating Relative Humidity: 8% to 80% (non-condensing)
  • Non-operating Relative Humidity: 8% to 90% (non-condensing)
Recycle
